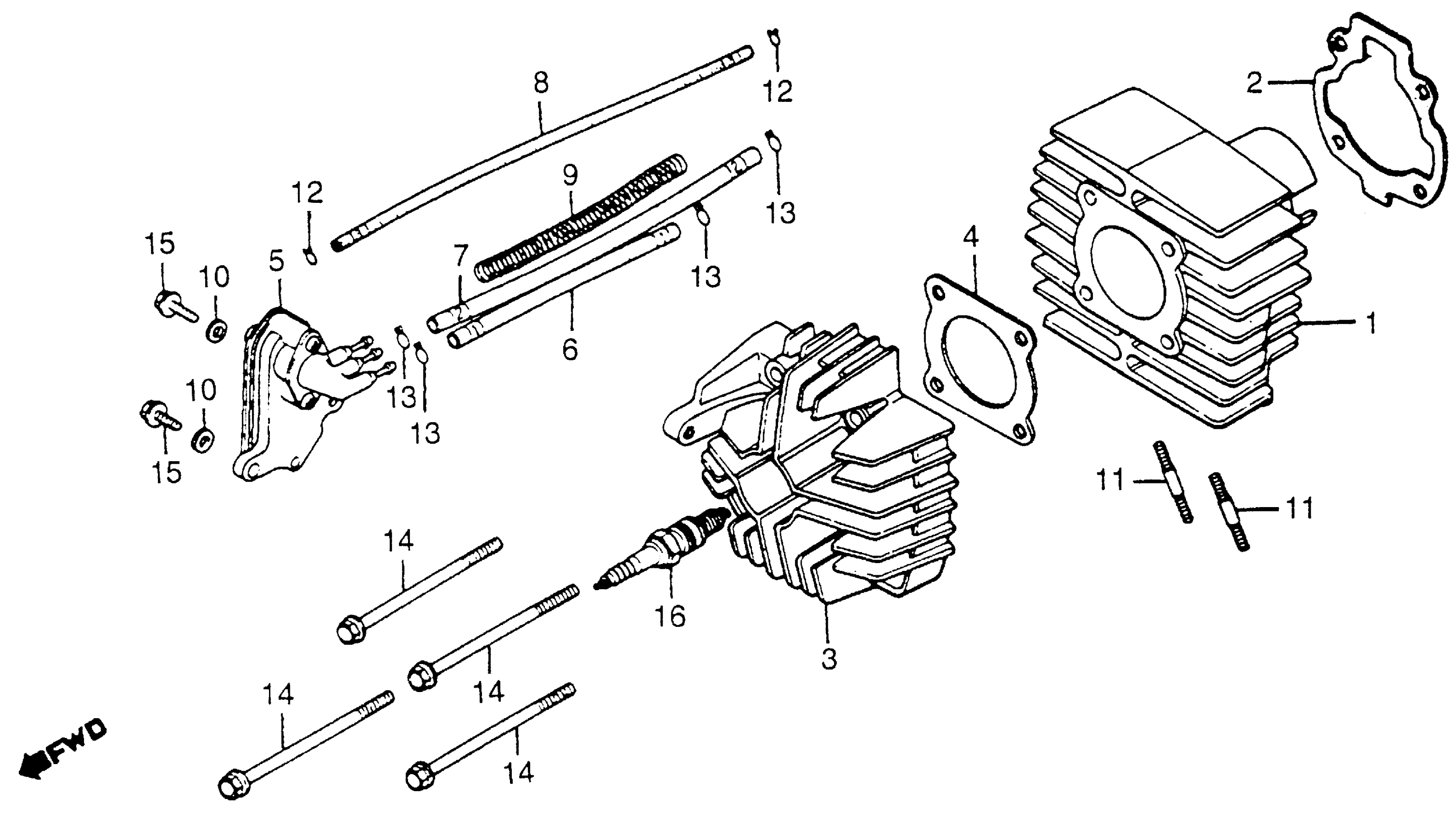

Honda NC50A (83) EXPRESS, JPN, VIN# JH2AB100-DS100001 TO JH2AB100-DS105061 CYLINDER CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER (NOT AVAILABLE)

12100-191-000

Unavailable

1

CYLINDER B (+0.005/+0.010) (NOT AVAILABLE)

12101-191-000

Unavailable

2

GASKET, CYLINDER This part replaces 12191-147-306.

12191-147-701

$6.93

2

GASKET, CYLINDER This part replaces 12191-147-700.

12191-147-701

$6.93

2

GASKET, CYLINDER

12191-147-701

$6.93

3

CYLINDER HEAD (NOT AVAILABLE)

12200-187-000

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-GM8-000.

12251-GN2-000

$5.57

4

GASKET, CYLINDER HEAD

12251-GN2-000

$5.57

4

GASKET, CYLINDER HEAD This part replaces 12251-147-000.

12251-GN2-000

$5.57

5

BOX ASSY., CONTROL (NOT AVAILABLE)

16600-187-013

Unavailable

6

TUBE 1, CONTROL VALVE

16605-191-000

Unavailable

7

TUBE 2, CONTROL VALVE (NOT AVAILABLE)

16606-GA6-670

Unavailable

8

TUBE 3, CONTROL VALVE (NOT AVAILABLE)

16607-GA6-670

Unavailable

9

GUARD, WIRE (NOT AVAILABLE)

16612-191-000

Unavailable

10

WASHER (6.2X11) (NOT AVAILABLE)

90474-187-000

Unavailable

11

BOLT 2, STUD (6X18) This part replaces 92700-06027-10.

92900-06018-1B

$1.69

11

BOLT 2, STUD (6X18) This part replaces 92700-06028-1B.

92900-06018-1B

$1.69

11

BOLT 2, STUD (6X18)

92900-06018-1B

$1.69

12

CLIP, TUBE (B8)

95002-02080

$1.80

13

CLIP, TUBE (B10)

95002-02100

$1.90

14

BOLT, FLANGE (6X100) This part replaces 95800-06100-00.

95801-06100-00

$1.74

14

BOLT, FLANGE (6X100)

95801-06100-00

$1.74

15

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

15

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

16

SPARK PLUG (BPR2HS) (NGK) | (Optional). This part replaces 98076-52716.

98076-52717

$3.80

16

SPARK PLUG (BPR2HS) (NGK) | (Optional).

98076-52717

$3.80

16

SPARK PLUG (W14FP-L) (DENSO) | (Optional). This part replaces 98076-52726.

98076-54721

Unavailable

16

SPARK PLUG (W14FP-L) (DENSO) | (Optional). This part replaces 98076-54122.

98076-54721

Unavailable

16

SPARK PLUG (BPR4HS) (NGK) This part replaces 98076-54717.

98076-54747

$2.53

16

SPARK PLUG (W14FP-L) (DENSO) | (Optional).

98076-54721

Unavailable

16

SPARK PLUG (W14FPR-L) (DENSO) This part replaces 98076-54727.

98076-54756

Unavailable

16

SPARK PLUG (BPR4HS) (NGK)

98076-54747

$2.53

16

SPARK PLUG (W14FPR-L) (DENSO)

98076-54756

Unavailable

16

SPARK PLUG (BR5HS) (NGK) | (Optional).

98076-55716

$2.20

16

SPARK PLUG (W16FPR) (DENSO) | (Optional). This part replaces 98076-55726.

98076-55756

Unavailable

16

SPARK PLUG (W16FPR) (DENSO) | (Optional).

98076-55756

Unavailable
