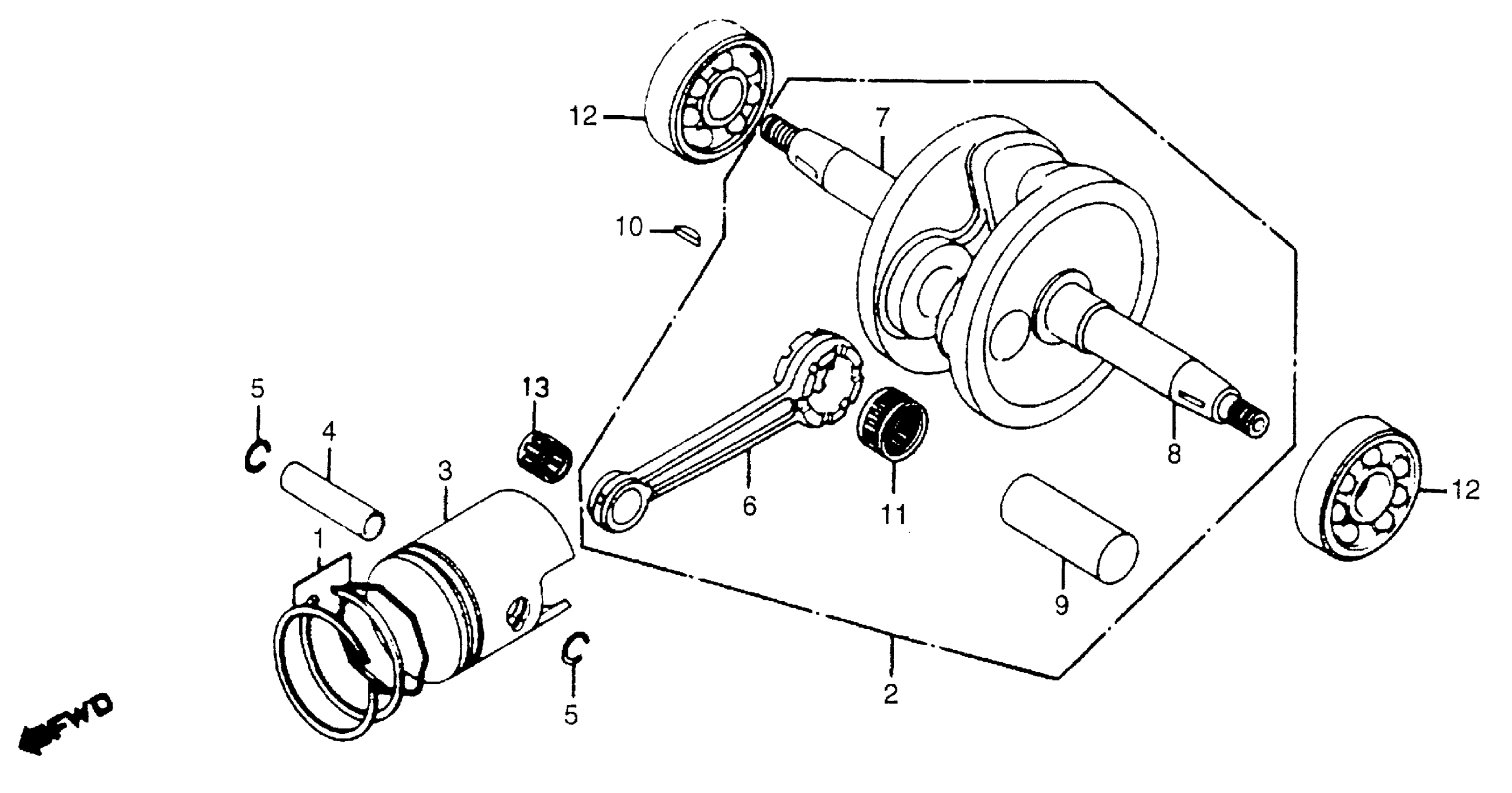

Honda NC50A (83) EXPRESS, JPN, VIN# JH2AB100-DS100001 TO JH2AB100-DS105061 CRANKSHAFT PISTON Diagram

#

Description
Price

1

RING SET, PISTON (STD) (TEIKOKU)

130A1-GA6-003

Unavailable

1

RING SET, PISTON (STD) (TEIKOKU) This part replaces 130A1-GA6-005.

130A1-GA6-003

Unavailable

1

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional).

130A2-GA6-003

Unavailable

1

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional). This part replaces 130A2-GA6-005.

130A2-GA6-003

Unavailable

1

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional).

130A3-GA6-003

Unavailable

1

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional). This part replaces 130A3-GA6-005.

130A3-GA6-003

Unavailable

1

RING SET, PISTON (0.75) (NIPPON) (NOT AVAILABLE) | (Optional).

130A4-GA6-003

Unavailable

1

RING SET, PISTON (0.75) (NIPPON) (NOT AVAILABLE) | (Optional). This part replaces 130A4-GA6-005.

130A4-GA6-003

Unavailable

1

RING SET, PISTON (1.00) (NIPPON) (NOT AVAILABLE) | (Optional).

130A5-GA6-003

Unavailable

1

RING SET, PISTON (1.00) (NIPPON) (NOT AVAILABLE) | (Optional). This part replaces 130A5-GA6-005.

130A5-GA6-003

Unavailable

2

CRANKSHAFT (NOT AVAILABLE)

13000-GA6-010

Unavailable

3

PISTON (OS 0.25) | (Optional).

131A0-187-003

Unavailable

3

PISTON (OS 0.50) | (Optional).

131B0-187-003

Unavailable

3

PISTON B This part replaces 13101-187-023.

13103-187-023

Unavailable

3

PISTON B This part replaces 13101-190-003.

13103-187-023

Unavailable

3

PISTON (OS 0.25) | (Optional). This part replaces 13102-147-010.

131A0-187-003

Unavailable

3

PISTON (OS 0.50) | (Optional). This part replaces 13103-147-010.

131B0-187-003

Unavailable

3

PISTON B

13103-187-023

Unavailable

3

PISTON (0.75) (NOT AVAILABLE) | (Optional). This part replaces 13104-147-010.

131C0-187-003

Unavailable

3

PISTON (1.00) (NOT AVAILABLE) | (Optional). This part replaces 13105-147-010.

131D0-187-003

Unavailable

4

PIN, PISTON This part replaces 13111-GK8-000.

13111-GS7-000

$9.55

4

PIN, PISTON

13111-GS7-000

$9.55

4

PIN, PISTON This part replaces 13111-122-000.

13111-GS7-000

$9.55

5

CLIP, PISTON PIN (10MM)

13115-147-000

$2.11

6

ROD, CONNECTING This part replaces 13201-147-300.

13201-GC7-710

Unavailable

6

ROD, CONNECTING This part replaces 13201-147-700.

13201-GC7-710

Unavailable

7

CRANKSHAFT, R. (NOT AVAILABLE)

13311-GA6-300

Unavailable

8

CRANKSHAFT, L. (NOT AVAILABLE)

13321-GA6-310

Unavailable

9

PIN, CRANK (NOT AVAILABLE)

13381-147-300

Unavailable

10

KEY, WOODRUFF (3MM)

90741-035-000

$4.19

10

KEY, WOODRUFF (3MM) This part replaces 90741-147-000.

90741-035-000

$4.19

11

BEARING, CONNECTING ROD BIG END (RED) (TOYO) This part replaces 91001-122-004.

91001-122-008

Unavailable

11

BEARING, CONNECTING ROD BIG END (RED) (TOYO)

91001-122-008

Unavailable

11

BEARING, CONNECTING ROD BIG END (BLUE) (TOYO) This part replaces 91002-122-004.

91002-122-008

Unavailable

11

BEARING, CONNECTING ROD BIG END (BLUE) (TOYO)

91002-122-008

Unavailable

11

BEARING, CONNECTING ROD BIG END (WHITE) (TOYO) This part replaces 91003-122-004.

91003-122-008

Unavailable

11

BEARING, CONNECTING ROD BIG END (WHITE) (TOYO)

91003-122-008

Unavailable

12

BEARING, RADIAL BALL (6004)

91001-148-013

Unavailable

13

BEARING, CONNECTING ROD (TOYO)

91102-GA7-008

$13.19
