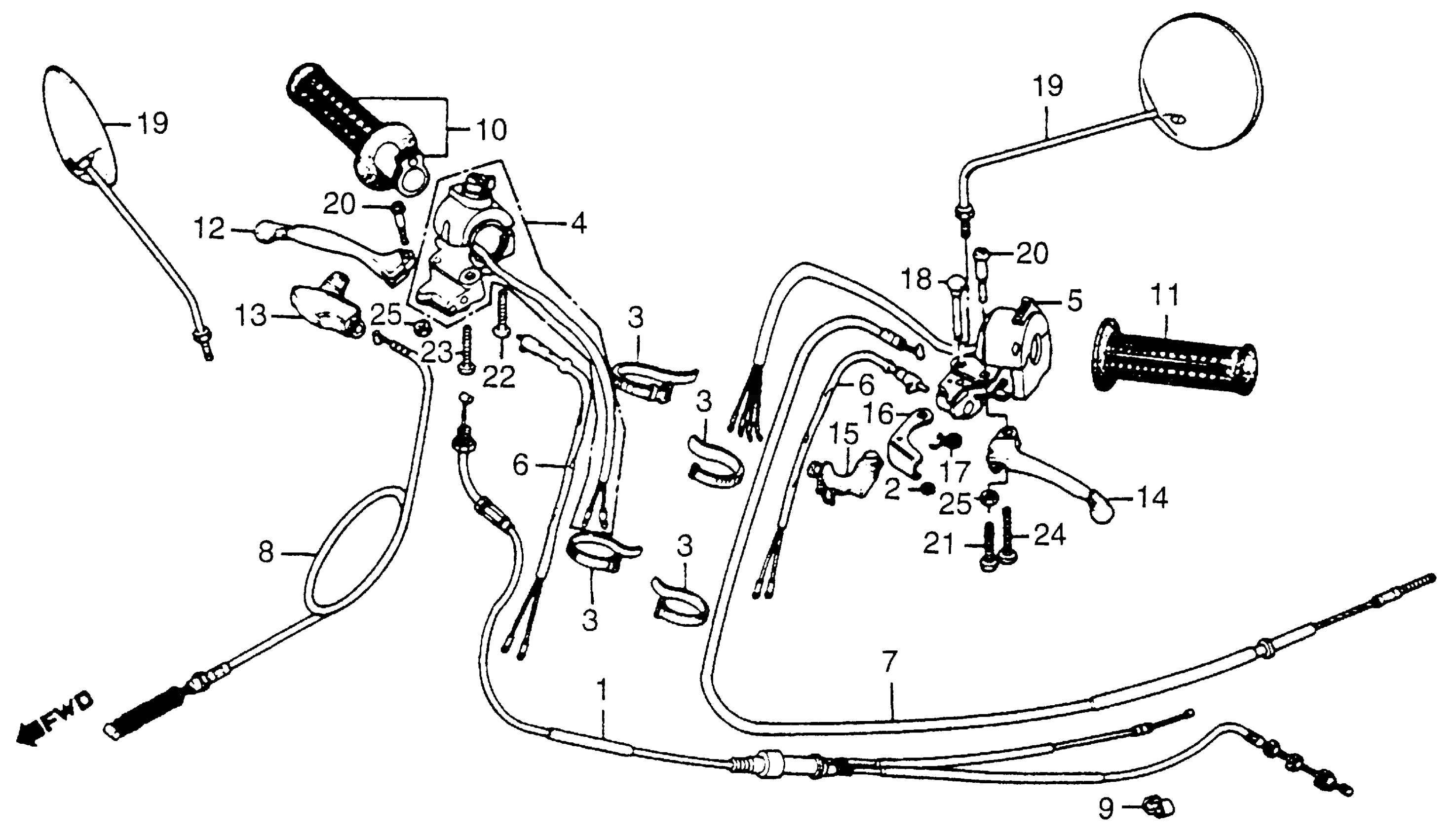

Honda NC50A (83) EXPRESS, JPN, VIN# JH2AB100-DS100001 TO JH2AB100-DS105061 CONTROL LEVERS + CABLE + SWITCHES Diagram

#

Description
Price

1

CABLE, THROTTLE (NOT AVAILABLE)

17910-GA6-670

Unavailable

2

E-CLIP (3MM)

30158-700-010

$2.80

3

BAND B1, CABLE

32161-404-000

$2.16

4

SWITCH ASSY., STOP This part replaces 35130-GA6-670.

35130-190-671

Unavailable

4

SWITCH ASSY., STOP (NOT AVAILABLE)

35130-190-671

Unavailable

5

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE) This part replaces 35200-GA6-671.

35200-190-671

Unavailable

6

SWITCH ASSY., FR. STOP This part replaces 35340-187-700.

35340-GAN-620

$17.62

6

SWITCH ASSY., FR. STOP This part replaces 35340-401-681.

35340-GAN-620

$17.62

6

SWITCH ASSY., FR. STOP This part replaces 35340-401-682.

35340-GAN-620

$17.62

6

SWITCH ASSY., FR. STOP This part replaces 35340-437-661.

35340-GAN-620

$17.62

7

CABLE, RR. BRAKE (NOT AVAILABLE)

43450-GA6-670

Unavailable

8

CABLE, FR. BRAKE This part replaces 45450-GA6-670.

45450-187-672

Unavailable

9

CLIP, FR. BRAKE CABLE

45465-270-000

$4.71

9

CLIP, FR. BRAKE CABLE This part replaces 45465-341-700.

45465-270-000

$4.71

10

GRIP, THROTTLE (NOT AVAILABLE)

53140-GA7-000

Unavailable

11

GRIP, L. HANDLE

53166-GA7-000

$6.18

12

LEVER, R. HANDLEBAR (COO) This part replaces 53175-147-671.

53175-GGA-305

$11.82

13

COVER, R. CONTROL LEVER

53176-170-700

$3.89

14

LEVER, L. HANDLEBAR (COO) This part replaces 53178-GR2-000.

53178-GGL-305

$13.41

14

LEVER, L. HANDLEBAR (COO) This part replaces 53178-187-000.

53178-GGL-305

$13.41

15

COVER, L. CONTROL LEVER

53179-170-700

$10.04

16

LEVER, PARKING

53181-187-000

Unavailable

17

SPRING, LEVER RETURN

53182-155-010

$3.58

18

PIN, PARKING LEVER PIVOT

53183-155-000

$8.24

19

MIRROR COMP. This part replaces 88110-GB4-000.

88210-GN2-000

Unavailable

19

MIRROR COMP. This part replaces 88110-GK8-405.

88210-GN2-000

Unavailable

19

MIRROR COMP. This part replaces 88110-GN2-000.

88210-GN2-000

Unavailable

19

MIRROR COMP. This part replaces 88110-190-670.

88210-GN2-000

Unavailable

19

MIRROR COMP. This part replaces 88210-GBJ-505.

88210-GN2-000

Unavailable

19

MIRROR COMP. This part replaces 88210-GK8-505.

88210-GN2-000

Unavailable

20

SCREW, HANDLE LEVER PIVOT

90115-170-700

$3.58

21

SCREW, PAN (5X28)

93500-05028-0A

$1.22

22

SCREW, PAN (5X32)

93500-05032-0A

Unavailable

23

SCREW, PAN (5X35)

93500-05035-0A

$1.09

24

SCREW, PAN (5X40)

93500-05040-0A

$0.57

25

NUT, HEX. (5MM)

94001-05000-0S

$2.80
