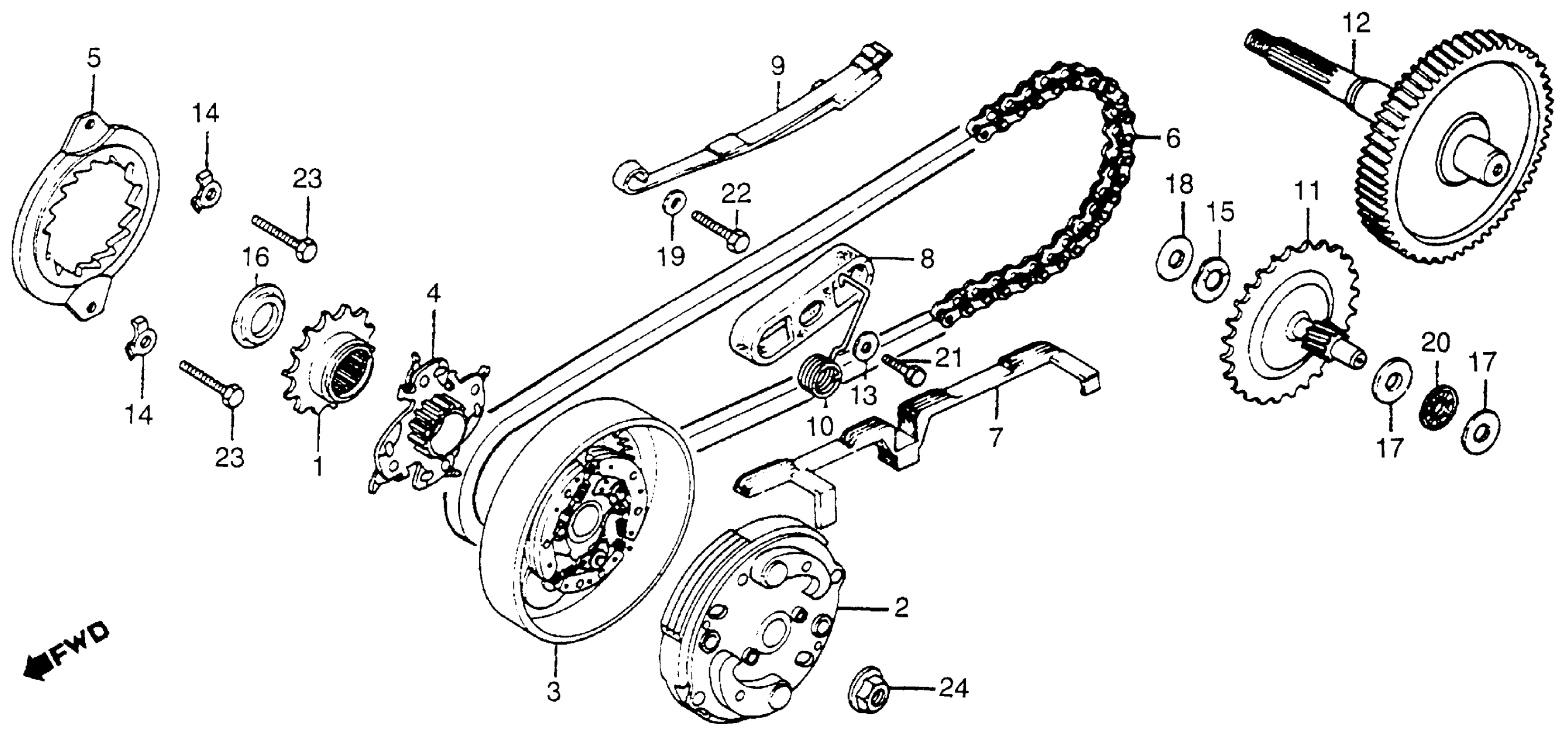

Honda NC50A (83) EXPRESS, JPN, VIN# JH2AB100-DS100001 TO JH2AB100-DS105061 CLUTCH DRIVE CHAIN FINAL GEAR Diagram

#

Description
Price

1

SPROCKET, DRIVE (NOT AVAILABLE)

22102-191-000

Unavailable

2

PLATE ASSY., DRIVE (NOT AVAILABLE)

22300-191-020

Unavailable

3

CLUTCH ASSY., SECOND (NOT AVAILABLE)

22600-191-000

Unavailable

4

PLATE, SUN GEAR (NOT AVAILABLE)

22650-191-000

Unavailable

5

PLATE, RATCHET (NOT AVAILABLE)

22671-191-000

Unavailable

6

CHAIN, DRIVE (270H-80L) (DID)

23100-147-003

Unavailable

6

CHAIN, DRIVE (270H-80L) (DID) This part replaces 23100-190-003.

23100-147-003

Unavailable

7

GUIDE A, DRIVE CHAIN

23110-147-000

Unavailable

8

GUIDE B, DRIVE CHAIN (NOT AVAILABLE)

23120-147-010

Unavailable

9

TENSIONER, DRIVE CHAIN

23130-147-020

Unavailable

10

SPRING, TENSIONER (NOT AVAILABLE)

23145-147-000

Unavailable

11

SPROCKET, DRIVEN (NOT AVAILABLE)

23200-191-000

Unavailable

12

GEAR, FINAL (NOT AVAILABLE)

23220-190-010

Unavailable

13

WASHER, SPECIAL (6MM)

90438-671-000

$4.80

14

WASHER, LOCK (6MM)

90439-PH8-000

$4.72

14

WASHER, LOCK (6MM) This part replaces 90439-634-000.

90439-PH8-000

$4.72

14

WASHER, LOCK (6MM) This part replaces 90439-634-010.

90439-PH8-000

$4.72

15

WASHER, WAVE (12MM)

90444-190-000

Unavailable

16

WASHER, THRUST (15MM) (NOT AVAILABLE)

90445-191-000

Unavailable

17

WASHER, THRUST (12MM) (TOYO)

90452-147-003

$3.62

17

WASHER, THRUST (12MM) (TOMUSON)

90452-147-006

$3.97

18

WASHER (12MM) (NOT AVAILABLE)

90453-147-000

Unavailable

19

WASHER (6X16)

90473-147-000

$1.49

20

BEARING, NEEDLE (12MM)

91001-147-003

$12.58

20

BEARING, NEEDLE (12MM) (TOMUSON)

91001-147-006

$13.34

21

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

21

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

21

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

22

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

22

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

23

BOLT, HEX. (6X25) This part replaces 92222-06025.

92225-06025-0A

Unavailable

23

BOLT, HEX. (6X25) This part replaces 92222-06025-0A.

92225-06025-0A

Unavailable

23

BOLT, HEX. (6X25)

92225-06025-0A

Unavailable

24

NUT, FLANGE (10MM)

94050-10000

$1.59
