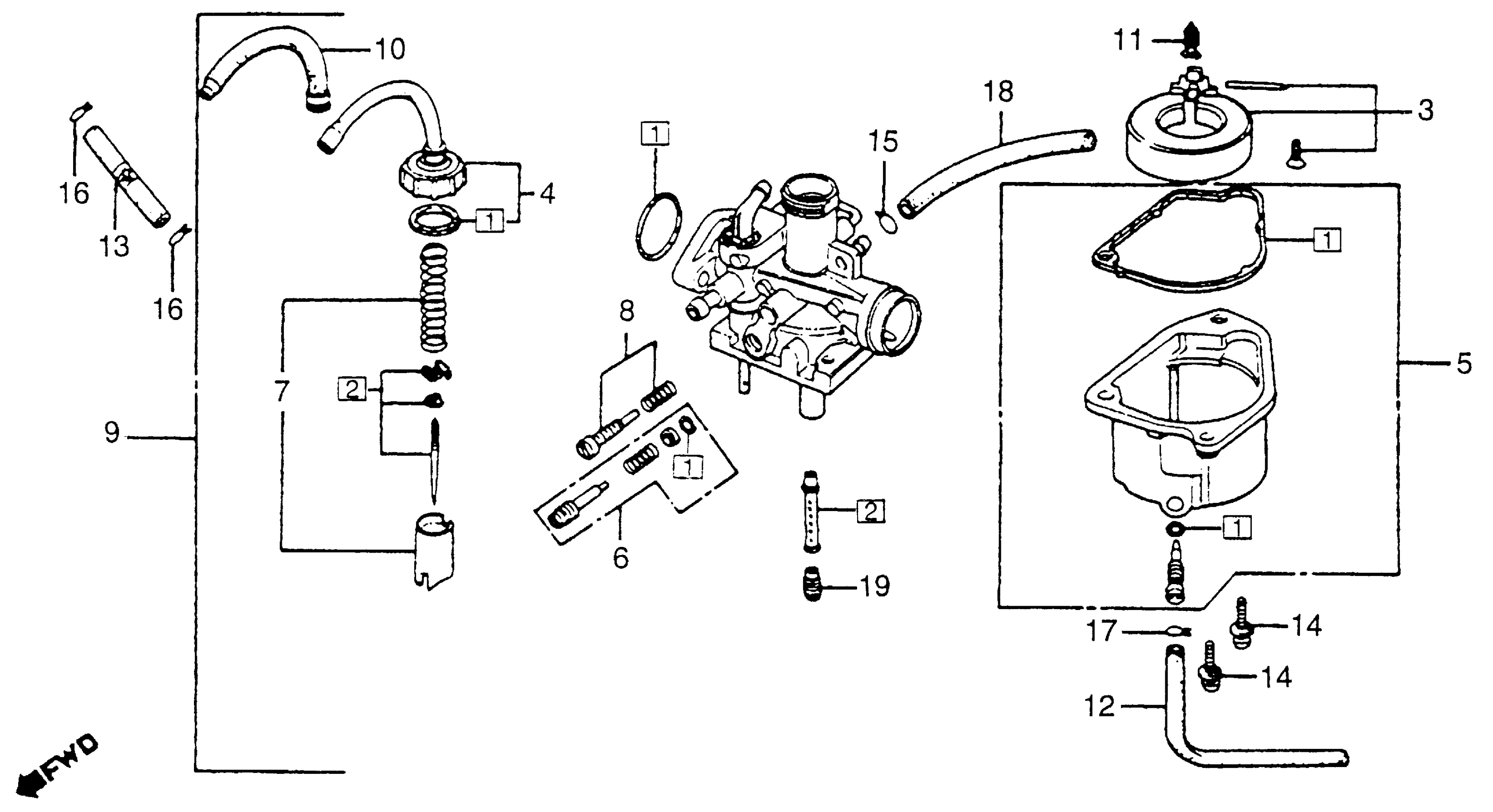

Honda NC50A (83) EXPRESS, JPN, VIN# JH2AB100-DS100001 TO JH2AB100-DS105061 CARBURETOR Diagram

GASKET SET

16010-190-004

Unavailable

NEEDLE SET, JET (NOT AVAILABLE)

16012-GA6-671

Unavailable

FLOAT SET

16013-147-004

$44.62

TOP SET (NOT AVAILABLE)

16014-187-013

Unavailable

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-GA6-671

Unavailable

SCREW SET A (NOT AVAILABLE)

16016-191-004

Unavailable

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-191-004

Unavailable

SCREW SET B

16028-GC8-004

$16.35

SCREW SET B This part replaces 16028-187-003.

16028-GC8-004

$16.35

CARBURETOR ASSY. (NOT AVAILABLE)

16100-GA6-671

Unavailable

CAP, CABLE (NOT AVAILABLE)

16118-187-003

Unavailable

VALVE, FLOAT

16155-883-005

$20.11

TUBE, RUBBER

16199-435-771

$11.39

TUBE 4, CONTROL VALVE (NOT AVAILABLE)

16608-GA6-670

Unavailable

SCREW-WASHER (4X12)

93892-04012-08

$1.49

CLIP, TUBE (B7)

95002-02070

$1.80

CLIP, TUBE (B8)

95002-02080

$1.80

CLIP, TUBE (B6.5)

95002-02650

$1.49

BULK HOSE, VACUUM (3.5X1000) (3.5X130)

95005-35001-20M

$9.67

JET, MAIN (#75)

99101-187-0750

Unavailable
