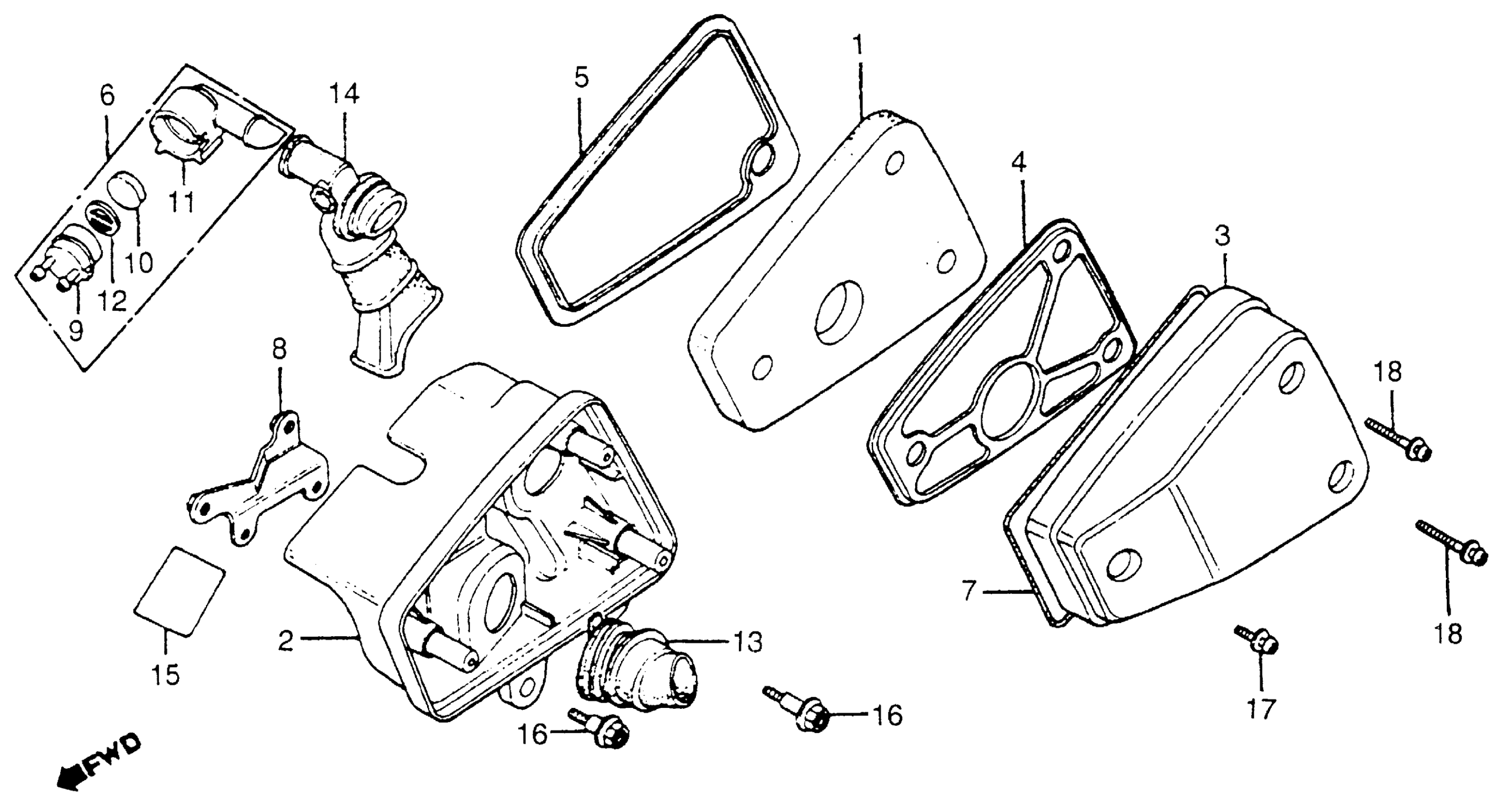

Honda NC50A (83) EXPRESS, JPN, VIN# JH2AB100-DS100001 TO JH2AB100-DS105061 AIR CLEANER Diagram

ELEMENT, AIR CLEANER

17205-GA6-670

Unavailable

HOUSING, AIR CLEANER *NH1* (BLACK) (NOT AVAILABLE)

17206-GA6-670ZA

Unavailable

COVER, AIR CLEANER HOUSING *NH1* (BLACK) (NOT AVAILABLE)

17207-GA6-670ZA

Unavailable

HOLDER, ELEMENT (NOT AVAILABLE)

17208-GA6-670

Unavailable

SEPARATOR, AIR CLEANER ELEMENT (NOT AVAILABLE)

17209-GA6-670

Unavailable

CHAMBER ASSY., BYSTARTER (NOT AVAILABLE)

17210-GA6-670

Unavailable

SEAL, AIR CLEANER COVER This part replaces 17212-GA6-670.

17212-GS9-405

Unavailable

SEAL, AIR CLEANER COVER

17212-GS9-405

Unavailable

SEAL, AIR CLEANER COVER This part replaces 17212-187-010.

17212-GS9-405

Unavailable

STAY A, AIR CLEANER (NOT AVAILABLE)

17214-GA6-670

Unavailable

BODY, BYSTARTER CHAMBER

17215-GA6-670

Unavailable

ELEMENT, BYSTARTER CHAMBER

17216-GA6-670

Unavailable

CAP, BYSTARTER CHAMBER (NOT AVAILABLE)

17217-GA6-670

Unavailable

PLATE, BYSTARTER SETTING

17218-GB2-000

Unavailable

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)

17253-GA6-670

Unavailable

PIPE, INLET (NOT AVAILABLE)

17254-GA6-670

Unavailable

LABEL, AIR CLEANER CAUTION

87508-120-000

$5.26

BOLT, FLANGE (6MM)

90111-147-000

$2.75

SCREW-WASHER (5X12)

93891-05012-07

$1.49

SCREW-WASHER (5X25)

93891-05025-07

$1.49
