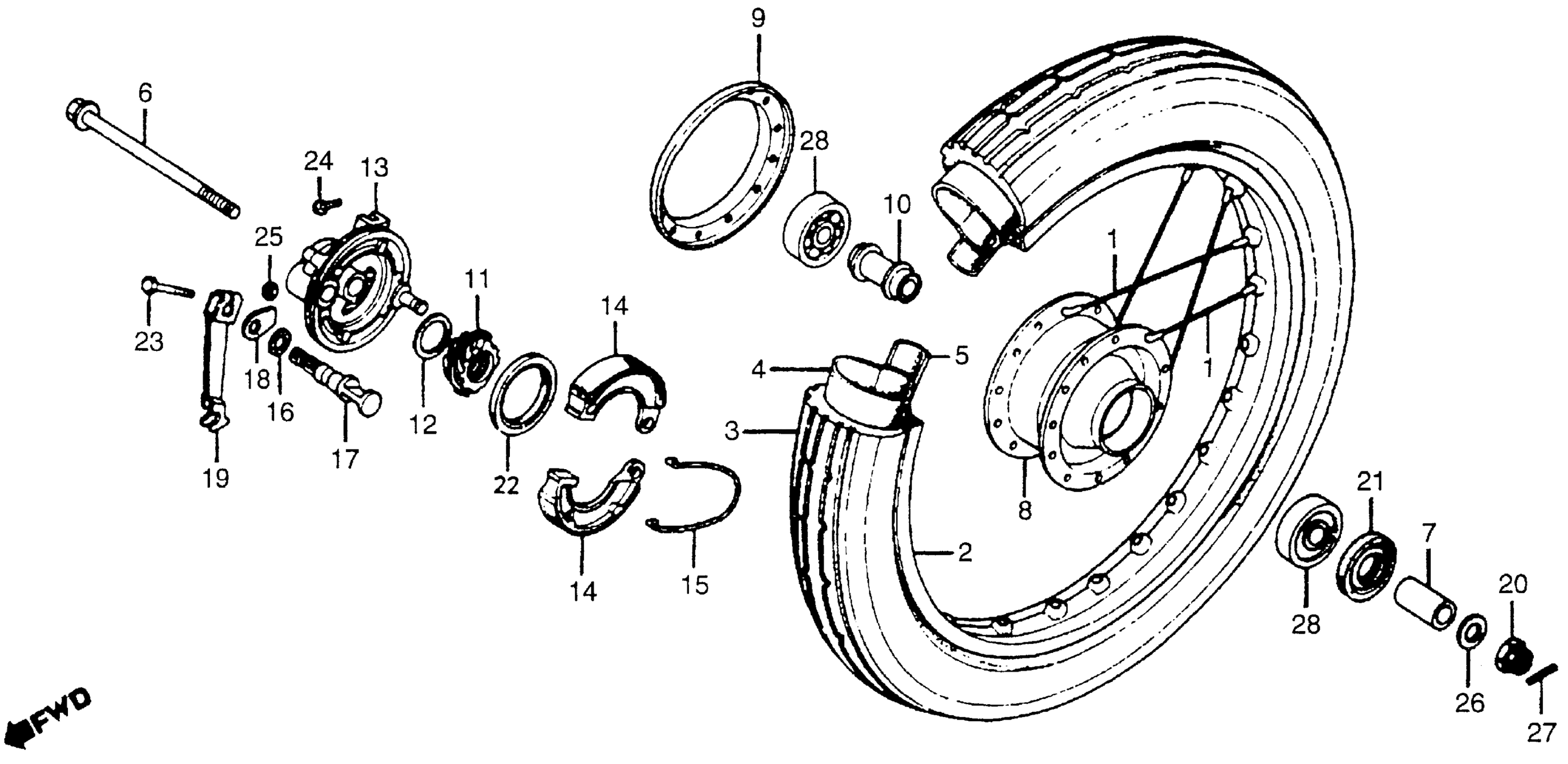

Honda NC50A (81) EXPRESS, JPN, VIN# JH2AB080-BS400008 TO JH2AB080-BS434297 FRONT WHEEL + FRONT BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE

06430-131-405

$15.33

NI

SHOE SET, BRAKE This part replaces 451A2-147-672.

06430-131-405

$15.33

1

SPOKE ASSY. A

42607-147-325

$3.95

2

RIM, WHEEL (1.20X14) (NOT AVAILABLE)

42701-147-711

Unavailable

3

TIRE (2.25-14) (4PR) (INOUE)

42711-147-671

Unavailable

3

TIRE (2.25-14) (4PR) (INOUE) This part replaces 42711-147-672.

42711-147-671

Unavailable

4

TUBE, TIRE (2.25-14) (INOUE) This part replaces 08400-14701.

44712-131-005

Unavailable

4

TUBE, TIRE (2.25-14) (INOUE) This part replaces 42712-147-009.

44712-131-005

Unavailable

4

TUBE, TIRE (2.25-14) (INOUE)

44712-131-005

Unavailable

5

FLAP, RR. TUBE (14) (INOUE)

42713-116-671

$6.91

5

FLAP, RR. TUBE (14) (INOUE) This part replaces 42713-147-009.

42713-116-671

$6.91

5

FLAP, RR. TUBE (14) (INOUE) This part replaces 42713-155-009.

42713-116-671

$6.91

5

FLAP, TIRE (14) (INOUE) (NOT AVAILABLE)

44713-131-005

Unavailable

6

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-147-000

Unavailable

6

AXLE, FR. WHEEL (NOT AVAILABLE) | Use from Frame SN BS416938 This part replaces 44301-191-000.

44301-147-000

Unavailable

7

COLLAR, FR. WHEEL SIDE

44311-GC6-000

Unavailable

7

COLLAR, FR. WHEEL SIDE This part replaces 44311-147-000.

44311-GC6-000

Unavailable

8

HUB, FR. WHEEL (NOT AVAILABLE)

44601-147-670

Unavailable

9

COVER, FR. HUB (NOT AVAILABLE)

44603-147-650

Unavailable

10

COLLAR, FR. DISTANCE

44620-147-000

$8.80

11

GEAR, SPEEDOMETER

44804-147-000

Unavailable

12

WASHER, SPEEDOMETER GEAR (NOT AVAILABLE)

44809-044-000

Unavailable

13

PANEL SUB-ASSY., FR. BRAKE (NOT AVAILABLE)

45050-147-970

$61.47

13

PANEL SUB, FR. BRAKE *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE) This part replaces 45010-191-000.

45010-191-000ZA

Unavailable

13

PANEL SUB, FR. BRAKE *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)

45010-191-000ZA

Unavailable

14

SHOE SET, BRAKE

06430-131-405

$15.33

14

SHOE, FR. BRAKE

43120-GZ9-003

Unavailable

14

SHOE, FR. BRAKE This part replaces 45120-GE8-003.

43120-GZ9-003

Unavailable

14

SHOE, FR. BRAKE This part replaces 45120-GE8-505.

43120-GZ9-003

Unavailable

14

SHOE, FR. BRAKE This part replaces 45120-147-672.

43120-GZ9-003

Unavailable

15

SPRING, BRAKE SHOE

45133-044-000

$2.31

16

SEAL, BRAKE CAM

45134-165-890

$1.57

17

CAM, FR. BRAKE This part replaces 45141-147-030.

45141-147-040

$11.25

17

CAM, FR. BRAKE

45141-147-040

$11.25

18

INDICATOR, BRAKE (NOT AVAILABLE)

45145-147-000

Unavailable

19

ARM, FR. BRAKE

45410-187-000

Unavailable

20

NUT, FR. WHEEL AXLE | Use up to Frame SN BS416937

90305-041-000

$4.83

20

NUT, AXLE (10MM) | Use from Frame SN BS416938

90304-GA6-003

$2.89

21

OIL SEAL (19X30.5X7)

90754-GK1-003

Unavailable

21

OIL SEAL (19X30.5X7) (ARAI)

90754-147-003

$5.31

22

OIL SEAL (34X47X5) (NOT AVAILABLE)

91252-147-003

Unavailable

23

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

23

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

23

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

24

SCREW, PAN (4X6)

93500-04006-0A

$1.49

25

NUT, HEX. (5MM)

94001-05000-0S

$2.74

26

WASHER, PLAIN (10MM)

94102-10000

$1.49

27

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

27

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

27

PIN, COTTER (2.5MM)

94201-25300

$1.49

28

BEARING, RADIAL BALL (6200U)

96140-62000-10

$15.44
