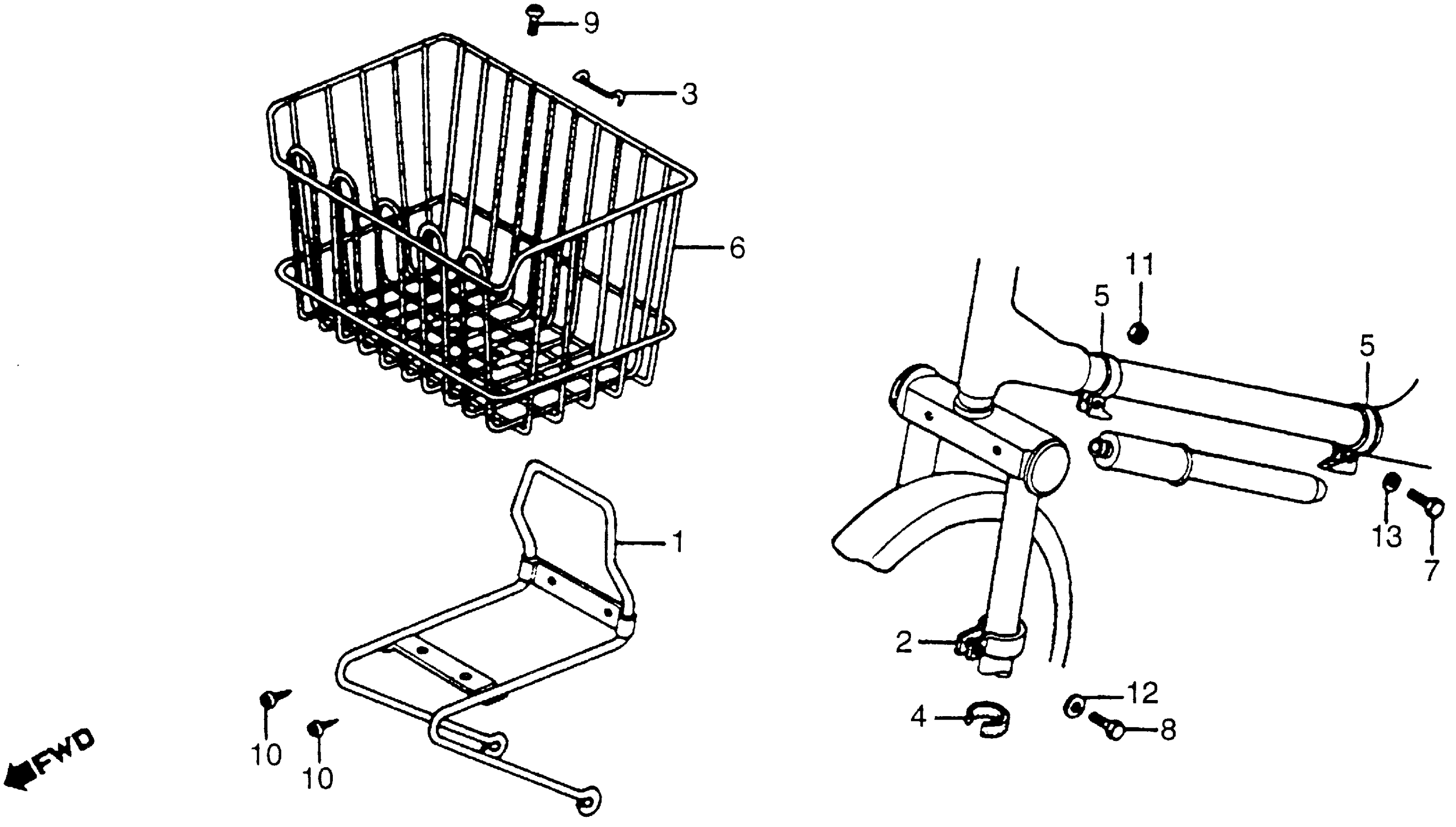

Honda NC50A (81) EXPRESS, JPN, VIN# JH2AB080-BS400008 TO JH2AB080-BS434297 FRONT CARRIER + FRONT BASKET 81 Diagram

Description

Price

CARRIER, FR. (NOT AVAILABLE) | (Optional).

81100-161-000

Unavailable

BAND, FR. CARRIER (NOT AVAILABLE) | (Optional).

81101-147-810

Unavailable

HOOK, FR. BASKET (NOT AVAILABLE) | (Optional).

81102-147-810

Unavailable

RUBBER, CARRIER BAND (NOT AVAILABLE) | (Optional).

81103-147-810

Unavailable

BRACKET, AIR PUMP (NOT AVAILABLE) | (Optional).

81105-147-810

Unavailable

BASKET, FR. (NOT AVAILABLE) | (Optional).

81311-086-810

Unavailable

BOLT, HEX. (5X20) | (Optional). This part replaces 92000-05020.

92101-05020-0A

$1.49

BOLT, HEX. (5X20) | (Optional).

92101-05020-0A

$1.49

BOLT, HEX. (6X16) | (Optional). This part replaces 92000-06016.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) | (Optional). This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) | (Optional). This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) | (Optional). This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) | (Optional).

92101-06016-0A

$1.49

BOLT, HEX. (6X16) | (Optional). This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

SCREW, PAN (6X14) | (Optional). This part replaces 93500-06014.

93500-06014-0A

$1.49

SCREW, PAN (6X14) | (Optional).

93500-06014-0A

$1.49

SCREW, TAPPING (6X10) (NOT AVAILABLE) | (Optional).

93903-26010

Unavailable

NUT, HEX. (5MM) | (Optional).

94001-05000-0S

$2.74

WASHER, PLAIN (6MM) | (Optional). This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) | (Optional). This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM) | (Optional).

94101-06800

$1.49

WASHER, SPRING (5MM) | (Optional).

94111-05000

$1.49
