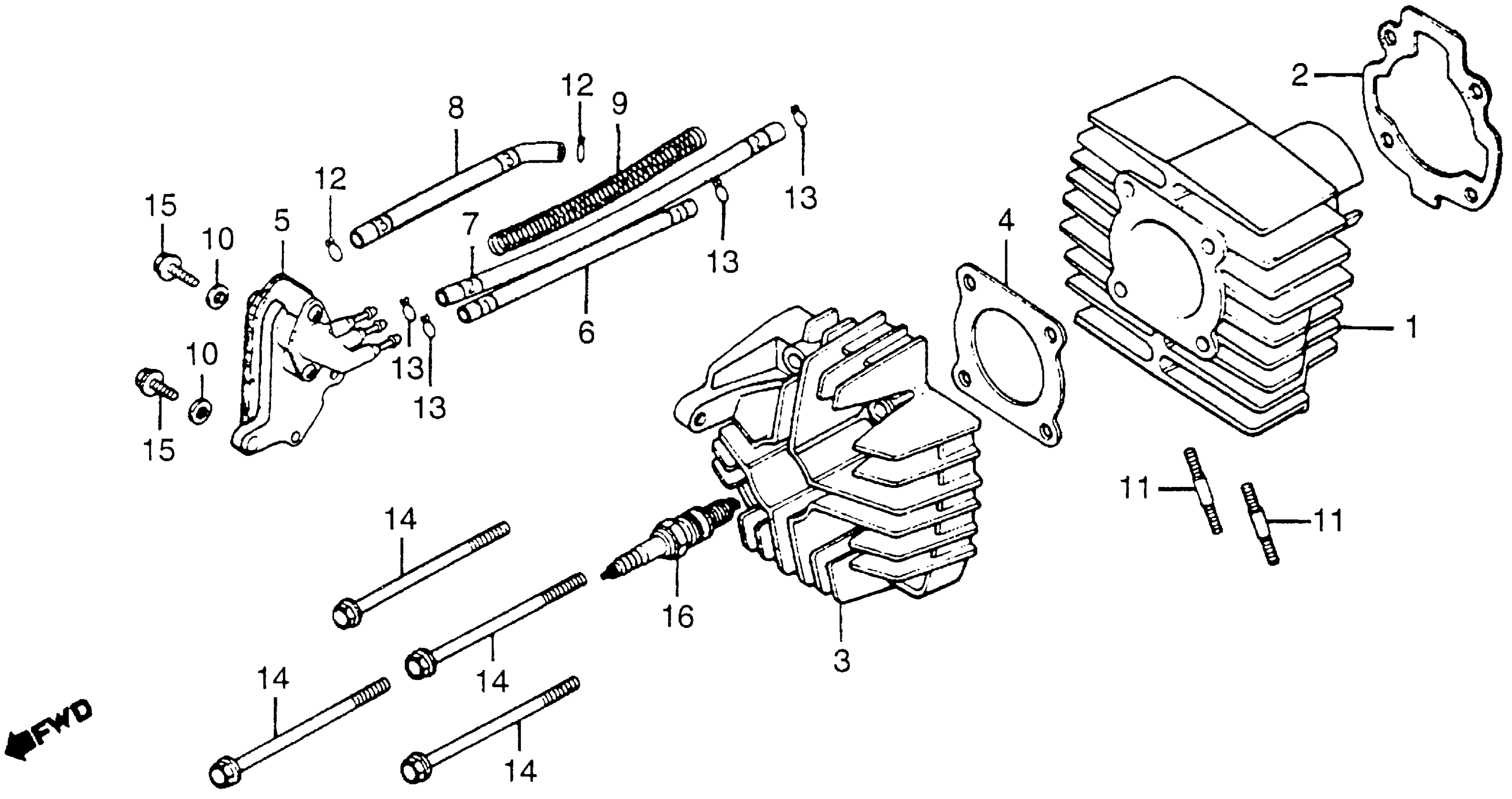

Honda NC50A (81) EXPRESS, JPN, VIN# JH2AB080-BS400008 TO JH2AB080-BS434297 CYLINDER HEAD + CYLINDER 81 Diagram

#

Description
Price

1

CYLINDER (NOT AVAILABLE)

12100-191-000

Unavailable

1

CYLINDER B (+0.005/+0.010) (NOT AVAILABLE)

12101-191-000

Unavailable

2

GASKET, CYLINDER This part replaces 12191-147-306.

12191-147-701

$6.93

2

GASKET, CYLINDER This part replaces 12191-147-700.

12191-147-701

$6.93

2

GASKET, CYLINDER

12191-147-701

$6.93

3

CYLINDER HEAD (NOT AVAILABLE)

12200-187-000

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-GM8-000.

12251-GN2-000

$5.57

4

GASKET, CYLINDER HEAD

12251-GN2-000

$5.57

4

GASKET, CYLINDER HEAD This part replaces 12251-147-000.

12251-GN2-000

$5.57

5

BOX ASSY., CONTROL (NOT AVAILABLE)

16600-187-013

Unavailable

6

TUBE 1, CONTROL VALVE

16605-191-000

Unavailable

7

TUBE 2, CONTROL VALVE (NOT AVAILABLE)

16606-193-670

Unavailable

8

TUBE 3, CONTROL VALVE (NOT AVAILABLE)

16607-193-670

Unavailable

9

GUARD, WIRE (NOT AVAILABLE)

16612-191-000

Unavailable

10

WASHER (6.2X11) (NOT AVAILABLE)

90474-187-000

Unavailable

11

BOLT, STUD (6X16) This part replaces 92700-06028.

92900-06016-0B

$1.49

11

BOLT, STUD (6X16) This part replaces 92700-06028-0B.

92900-06016-0B

$1.49

12

CLIP, TUBE (B8)

95002-02080

$1.80

13

CLIP, TUBE (B10)

95002-02100

$1.90

14

BOLT, FLANGE (6X100) This part replaces 95800-06100-00.

95801-06100-00

$1.74

14

BOLT, FLANGE (6X100)

95801-06100-00

$1.74

15

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

15

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

16

SPARK PLUG (BP4HS) (NGK) | (Optional). This part replaces 98076-52711.

98076-54719

$2.38

16

SPARK PLUG (W14FP-L) (DENSO) | (Optional). This part replaces 98076-52721.

98076-54721

Unavailable

16

SPARK PLUG (BP4HS) (NGK) | (Optional). This part replaces 98076-54711.

98076-54719

$2.38

16

SPARK PLUG (BP4HS) (NGK) This part replaces 98076-54711.

98076-54719

$2.38

16

SPARK PLUG (BP4HS) (NGK) | (Optional).

98076-54719

$2.38

16

SPARK PLUG (BP4HS) (NGK)

98076-54719

$2.38

16

SPARK PLUG (W14FP-L) (DENSO) | (Optional).

98076-54721

Unavailable

16

SPARK PLUG (W14FP-L) (DENSO)

98076-54721

Unavailable

16

SPARK PLUG (BP5HS) (NGK) | (Optional). This part replaces 98076-55711.

98076-55719

$2.44

16

SPARK PLUG (BP5HS) (NGK) | (Optional).

98076-55719

$2.44

16

SPARK PLUG (W16FP) (DENSO) (NOT AVAILABLE) | (Optional).

98076-55721

Unavailable
