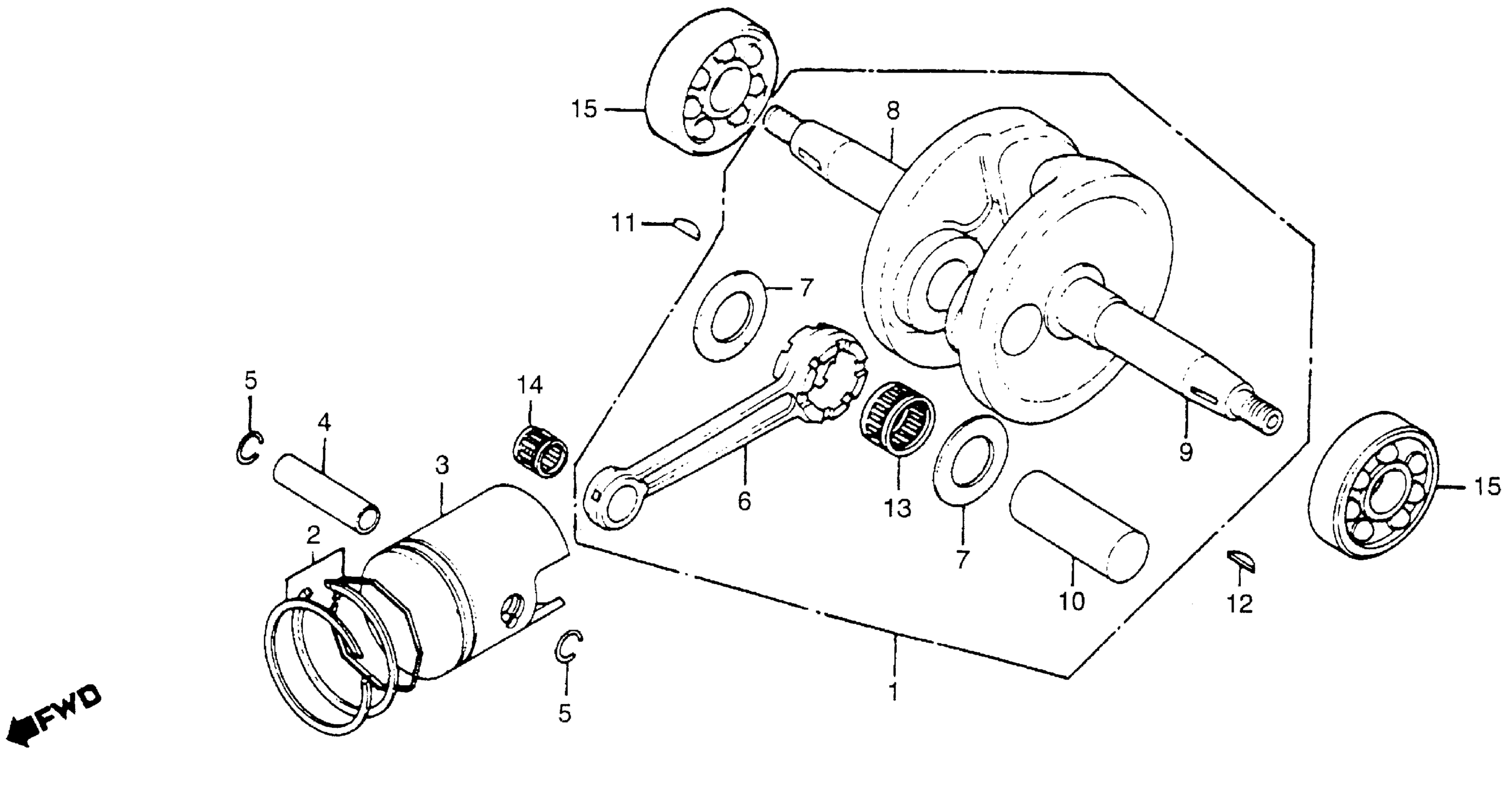

Honda NC50A (81) EXPRESS, JPN, VIN# JH2AB080-BS400008 TO JH2AB080-BS434297 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT | Use up to Engine SN BS427277 This part replaces 13000-190-000.

13000-190-010

Unavailable

1

CRANKSHAFT | Use up to Engine SN BS427277

13000-190-010

Unavailable

1

CRANKSHAFT

13000-190-010

Unavailable

2

RING SET, PISTON (STD) (NIPPON) | Use up to Engine SN BS412537

13010-GF8-306

Unavailable

2

RING SET, PISTON (STD) (NIPPON) | Use up to Engine SN BS412537 This part replaces 13011-GA7-003.

13010-GF8-306

Unavailable

2

RING SET, PISTON (STD) (NIPPON) | Use up to Engine SN BS412537 This part replaces 13011-GA7-005.

13010-GF8-306

Unavailable

2

RING SET, PISTON (STD) (NIPPON) | Use up to Engine SN BS412537 This part replaces 13011-147-003.

13010-GF8-306

Unavailable

2

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional). Use up to Engine SN BS412537 This part replaces 13021-147-003.

130A2-GA6-003

Unavailable

2

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional). Use up to Engine SN BS412537 This part replaces 13021-147-005.

130A2-GA6-003

Unavailable

2

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional). Use up to Engine SN BS412537 This part replaces 13031-147-003.

130A3-GA6-003

Unavailable

2

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional). Use up to Engine SN BS412537 This part replaces 13031-147-005.

130A3-GA6-003

Unavailable

2

RING SET, PISTON (0.75) (NIPPON) (NOT AVAILABLE) | (Optional). Use up to Engine SN BS412537 This part replaces 13041-147-003.

130A4-GA6-003

Unavailable

2

RING SET, PISTON (0.75) (NIPPON) (NOT AVAILABLE) | (Optional). Use up to Engine SN BS412537 This part replaces 13041-147-005.

130A4-GA6-003

Unavailable

2

RING SET, PISTON (1.00) (NIPPON) (NOT AVAILABLE) | (Optional). Use up to Engine SN BS412537 This part replaces 13051-147-003.

130A5-GA6-003

Unavailable

2

RING SET, PISTON (1.00) (NIPPON) (NOT AVAILABLE) | (Optional). Use up to Engine SN BS412537 This part replaces 13051-147-005.

130A5-GA6-003

Unavailable

2

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional).

130A2-GA6-003

Unavailable

2

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional). This part replaces 130A2-GA6-005.

130A2-GA6-003

Unavailable

2

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional).

130A3-GA6-003

Unavailable

2

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional). This part replaces 130A3-GA6-005.

130A3-GA6-003

Unavailable

2

RING SET, PISTON (0.75) (NIPPON) (NOT AVAILABLE) | (Optional).

130A4-GA6-003

Unavailable

2

RING SET, PISTON (0.75) (NIPPON) (NOT AVAILABLE) | (Optional). This part replaces 130A4-GA6-005.

130A4-GA6-003

Unavailable

2

RING SET, PISTON (1.00) (NIPPON) (NOT AVAILABLE) | (Optional).

130A5-GA6-003

Unavailable

2

RING SET, PISTON (1.00) (NIPPON) (NOT AVAILABLE) | (Optional). This part replaces 130A5-GA6-005.

130A5-GA6-003

Unavailable

2

RING SET, PISTON (STD) (TEIKOKU) | Use from Engine SN BS412538

130A1-GA6-003

Unavailable

2

RING SET, PISTON (STD) (TEIKOKU) | Use from Engine SN BS412538 This part replaces 130A1-GA6-005.

130A1-GA6-003

Unavailable

2

RING SET, PISTON (STD) (NIPPON) | Use up to Engine SN BS412537 This part replaces 13011-147-005.

13010-GF8-306

Unavailable

3

PISTON (OS 0.25) | (Optional).

131A0-187-003

Unavailable

3

PISTON (OS 0.50) | (Optional).

131B0-187-003

Unavailable

3

PISTON B This part replaces 13101-187-023.

13103-187-023

Unavailable

3

PISTON (OS 0.25) | (Optional). This part replaces 13102-147-010.

131A0-187-003

Unavailable

3

PISTON (OS 0.50) | (Optional). This part replaces 13103-147-010.

131B0-187-003

Unavailable

3

PISTON B

13103-187-023

Unavailable

3

PISTON (0.75) (NOT AVAILABLE) | (Optional). This part replaces 13104-147-010.

131C0-187-003

Unavailable

3

PISTON (1.00) (NOT AVAILABLE) | (Optional). This part replaces 13105-147-010.

131D0-187-003

Unavailable

3

PISTON B This part replaces 13101-190-000.

13103-187-023

Unavailable

3

PISTON B This part replaces 13101-190-003.

13103-187-023

Unavailable

4

PIN, PISTON This part replaces 13111-GK8-000.

13111-GS7-000

$9.55

4

PIN, PISTON

13111-GS7-000

$9.55

4

PIN, PISTON This part replaces 13111-122-000.

13111-GS7-000

$9.55

5

CLIP, PISTON PIN (10MM)

13115-147-000

$2.11

11

KEY, WOODRUFF (3MM)

90741-035-000

$4.19

11

KEY, WOODRUFF (3MM) This part replaces 90741-147-000.

90741-035-000

$4.19

12

KEY, WOODRUFF (25.4X8) (NOT AVAILABLE) | Use from Engine SN BS427278

90742-GA6-000

Unavailable

14

BEARING, CONNECTING ROD (TOYO)

91102-GA7-008

$13.19

15

BEARING, RADIAL BALL (6004)

91001-148-013

Unavailable
