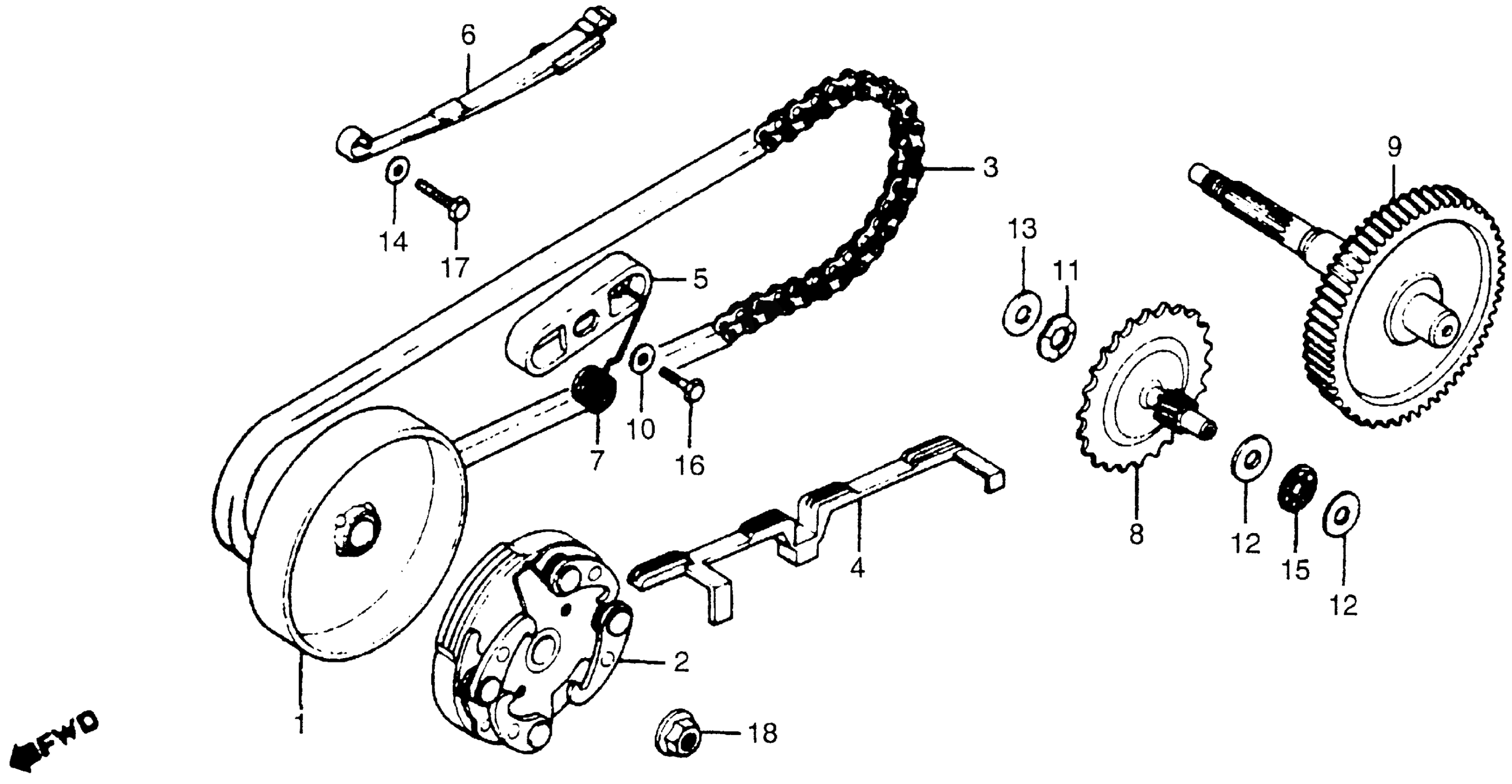

Honda NC50A (81) EXPRESS, JPN, VIN# JH2AB080-BS400008 TO JH2AB080-BS434297 CLUTCH + DRIVE CHAIN + FINAL GEAR 81 Diagram

CLUTCH (OUTER) (NOT AVAILABLE)

22100-190-000

Unavailable

PLATE ASSY., DRIVE (NOT AVAILABLE) This part replaces 22300-192-010.

22300-192-020

Unavailable

PLATE ASSY., DRIVE (NOT AVAILABLE)

22300-192-020

Unavailable

CHAIN, DRIVE (270H-80L) (DID)

23100-147-003

Unavailable

GUIDE A, DRIVE CHAIN

23110-147-000

Unavailable

GUIDE B, DRIVE CHAIN (NOT AVAILABLE)

23120-147-010

Unavailable

TENSIONER, DRIVE CHAIN

23130-147-020

Unavailable

SPRING, TENSIONER (NOT AVAILABLE)

23145-147-000

Unavailable

SPROCKET, DRIVEN (NOT AVAILABLE)

23200-191-000

Unavailable

GEAR, FINAL (NOT AVAILABLE)

23220-190-000

Unavailable

WASHER, SPECIAL (6MM)

90438-671-000

$4.80

WASHER, WAVE (12MM)

90444-190-000

Unavailable

WASHER, THRUST (12MM) (TOYO)

90452-147-003

$3.62

WASHER, THRUST (12MM) (TOMUSON)

90452-147-006

$3.97

WASHER (12MM) (NOT AVAILABLE)

90453-147-000

Unavailable

WASHER (6X16)

90473-147-000

$1.49

BEARING, NEEDLE (12MM)

91001-147-003

$12.58

BEARING, NEEDLE (12MM) (TOMUSON)

91001-147-006

$13.34

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

NUT, FLANGE (10MM)

94050-10000

$1.59
