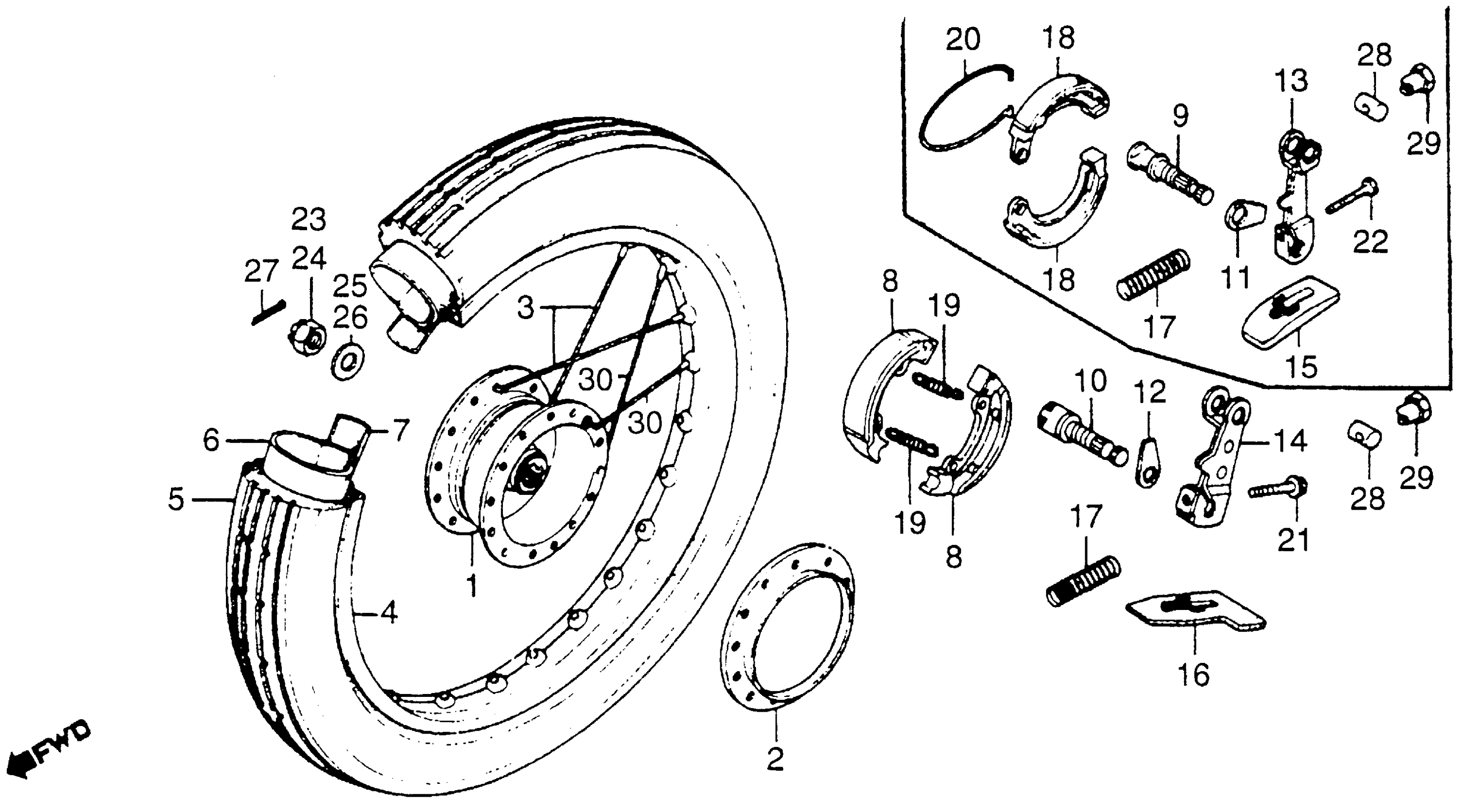

Honda NC50A (80) EXPRESS, JPN, VIN# NC50-2200005 TO NC50-2257744 REAR WHEEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE SHOE KIT, BRAKE

06430-131-405

$15.33

NI

SHOE SET, BRAKE This part replaces 451A2-147-672.

06430-131-405

$15.33

1

HUB, RR. WHEEL (NOT AVAILABLE)

42601-147-023

Unavailable

2

COVER, RR. HUB (NOT AVAILABLE)

42603-147-010

Unavailable

3

SPOKE ASSY. A | Use up to Frame SN 2218476 This part replaces 42607-147-315.

42607-147-325

$3.95

3

SPOKE ASSY. A | Use up to Frame SN 2218476

42607-147-325

$3.95

3

SPOKE ASSY. A

42607-147-325

$3.95

4

RIM, WHEEL (1.20X14) (NOT AVAILABLE) | Use up to Frame SN 2218394

42701-147-710

Unavailable

4

RIM, WHEEL (1.20X14) (NOT AVAILABLE) | Use from Frame SN 2218395

42701-147-711

Unavailable

5

TIRE (2.25-14) (4PR) (INOUE)

42711-147-671

Unavailable

5

TIRE (2.25-14) (4PR) (INOUE) This part replaces 42711-147-672.

42711-147-671

Unavailable

6

TUBE, TIRE (2.25-14) (INOUE) This part replaces 08400-14701.

44712-131-005

Unavailable

6

TUBE, TIRE (2.25-14) (INOUE) This part replaces 42712-147-009.

44712-131-005

Unavailable

6

TUBE, TIRE (2.25-14) (INOUE)

44712-131-005

Unavailable

7

FLAP, RR. TUBE (14) (INOUE)

42713-116-671

$6.91

7

FLAP, RR. TUBE (14) (INOUE) This part replaces 42713-147-009.

42713-116-671

$6.91

7

FLAP, RR. TUBE (14) (INOUE) This part replaces 42713-155-009.

42713-116-671

$6.91

7

FLAP, TIRE (14) (INOUE) (NOT AVAILABLE)

44713-131-005

Unavailable

9

CAM, RR. BRAKE

43141-147-010

Unavailable

11

INDICATOR, RR. BRAKE | Use up to Frame SN 2228944

43145-147-000

Unavailable

11

INDICATOR, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 2228945 This part replaces 43145-187-000.

43145-197-000

Unavailable

13

ARM, RR. BRAKE (NOT AVAILABLE)

43410-147-000

Unavailable

15

COVER, RR. BRAKE ARM (NOT AVAILABLE)

43411-147-010

Unavailable

17

SPRING, RR. BRAKE ARM

43472-KG8-000

$3.74

17

SPRING, RR. BRAKE ARM This part replaces 43472-147-000.

43472-KG8-000

$3.74

17

SPRING, RR. BRAKE ARM

43472-161-000

$4.13

18

SHOE SET, BRAKE SHOE, FR. BRAKE

06430-131-405

$15.33

18

SHOE, FR. BRAKE

43120-GZ9-003

Unavailable

18

SHOE, FR. BRAKE This part replaces 45120-GE8-003.

43120-GZ9-003

Unavailable

18

SHOE, FR. BRAKE This part replaces 45120-GE8-505.

43120-GZ9-003

Unavailable

18

SHOE, FR. BRAKE This part replaces 45120-147-672.

43120-GZ9-003

Unavailable

20

SPRING, BRAKE SHOE

45133-044-000

$2.31

22

BOLT, HEX. (5X22) This part replaces 92000-05022-0A.

92101-05022-0A

$1.49

22

BOLT, HEX. (5X22)

92101-05022-0A

$1.49

23

NUT, CASTLE (12MM)

94011-12000-0S

$1.54

25

WASHER, PLAIN (12MM)

94101-12000

$1.49

27

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

27

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

27

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

27

PIN, COTTER (3.0X45)

94201-30450

$1.49

28

JOINT A, BRAKE ARM

95015-31001

$1.53

29

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

30

SPOKE B (12X142.5) SPOKE B (12X143.5) | Use up to Frame SN 2218476

97081-22125-B0

Unavailable

30

SPOKE B (12X143.5) | Use from Frame SN 2218477

97081-22127-B0

Unavailable
