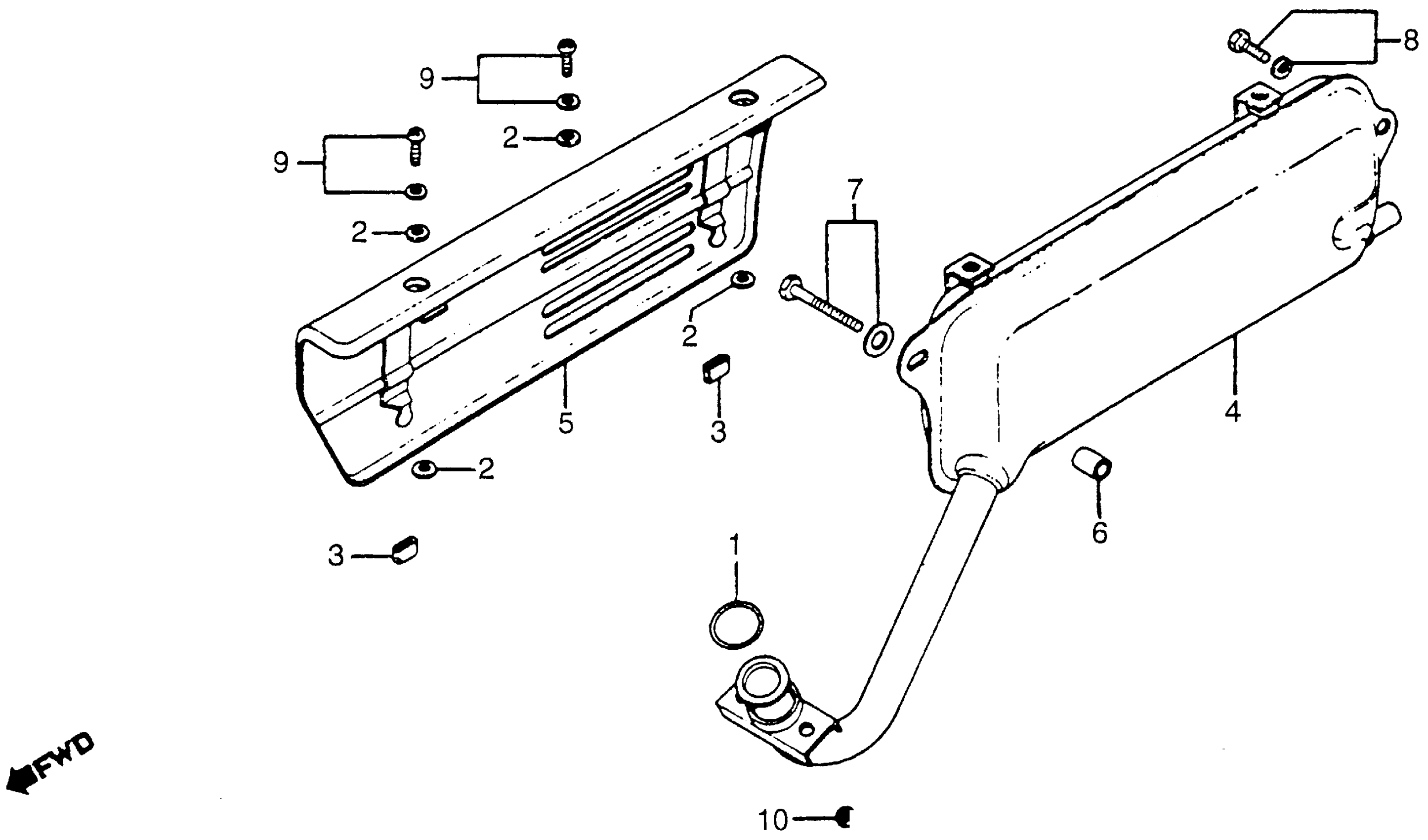

Honda NC50A (80) EXPRESS, JPN, VIN# NC50-2200005 TO NC50-2257744 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE This part replaces 18291-147-000.

18292-GY1-610

$6.34

1

GASKET, EX. PIPE This part replaces 18291-147-306.

18292-GY1-610

$6.34

1

GASKET, EX. PIPE

18292-GY1-610

$6.34

2

GASKET, MUFFLER PROTECTOR

18292-GY1-860

$2.94

2

GASKET, MUFFLER PROTECTOR This part replaces 18292-KS3-920.

18292-GY1-860

$2.94

2

GASKET, MUFFLER PROTECTOR This part replaces 18292-147-000.

18292-GY1-860

$2.94

3

RUBBER, PROTECTOR GASKET

18293-147-000

$4.04

4

MUFFLER, EX. This part replaces 18300-147-010.

18300-147-017

Unavailable

4

MUFFLER, EX.

18300-147-017

Unavailable

5

PROTECTOR, MUFFLER *NH24* (CERAMIC WHITE) (NOT AVAILABLE)

18318-147-000ZA

Unavailable

6

COLLAR, FUEL TANK

17503-329-770

Unavailable

6

COLLAR, TOP BRIDGE (NOT AVAILABLE)

53236-086-000

Unavailable

7

BOLT-WASHER (8X40)

93481-08040-00

Unavailable

8

BOLT-WASHER (6X12)

93402-06012-00

$1.69

8

BOLT-WASHER (6X12) This part replaces 93412-06012-00.

93402-06012-00

$1.69

8

BOLT-WASHER (6X12) This part replaces 93482-06012-00.

93402-06012-00

$1.69

9

SCREW-WASHER (5X10)

93891-05010-00

$1.49

9

SCREW-WASHER (5X10) This part replaces 93891-05010-10.

93891-05010-00

$1.49

10

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM)

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49
