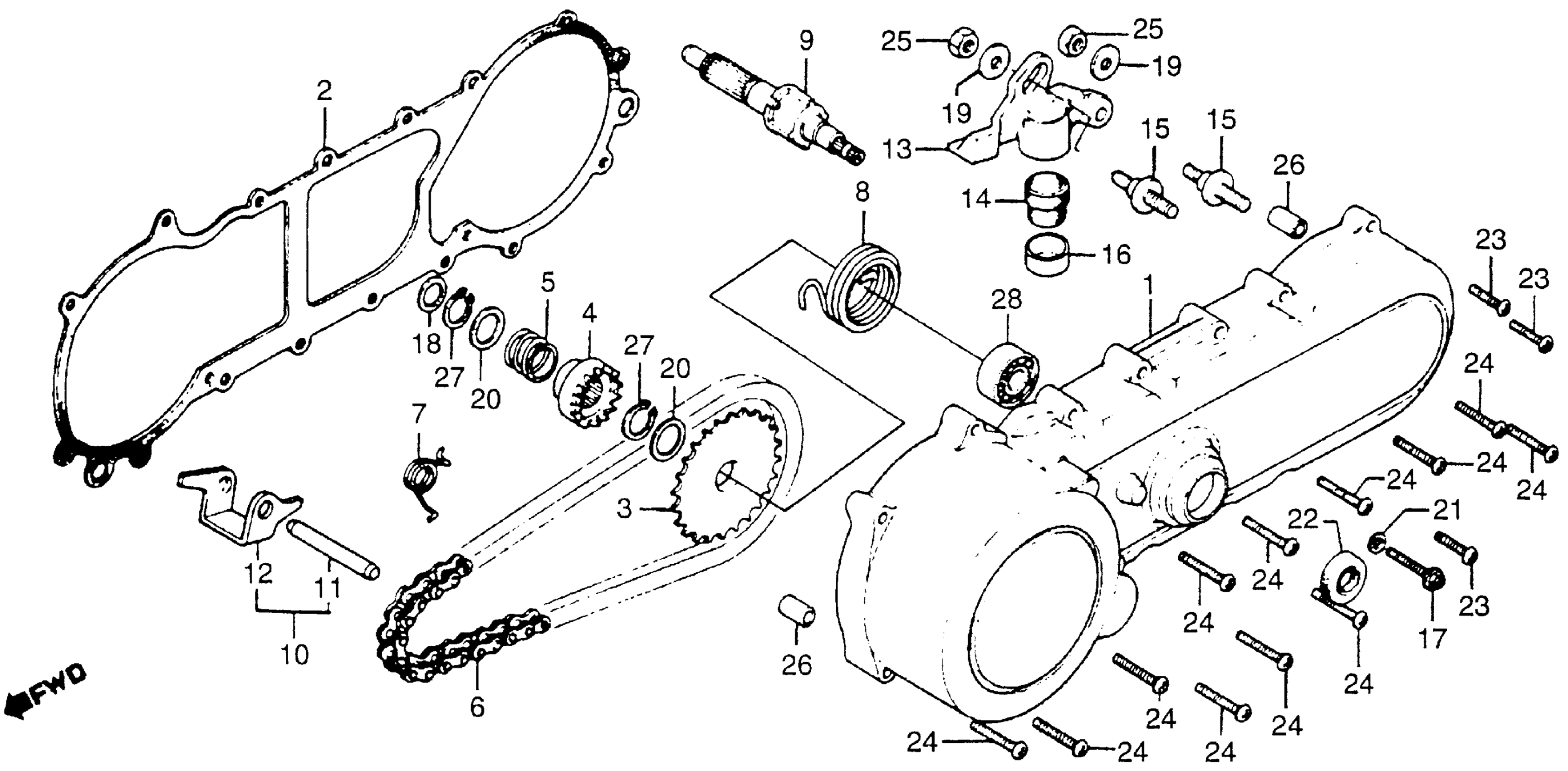

Honda NC50A (80) EXPRESS, JPN, VIN# NC50-2200005 TO NC50-2257744 LEFT CRANKCASE COVER 80 Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11340-147-050

Unavailable

2

GASKET, L. CRANKCASE COVER This part replaces 11395-147-010.

11395-147-306

Unavailable

2

GASKET, L. CRANKCASE COVER

11395-147-306

Unavailable

3

SPROCKET, STARTER DRIVE (NOT AVAILABLE)

28210-147-010

Unavailable

4

RATCHET B, STARTER (NOT AVAILABLE)

28221-147-000

Unavailable

5

SPRING, STARTER RATCHET (NOT AVAILABLE)

28223-147-000

Unavailable

6

CHAIN, STARTER DRIVE (DID219H-62LE)

28240-147-003

Unavailable

7

SPRING, LEVER ARM (NOT AVAILABLE)

28258-147-000

Unavailable

8

SPRING, STARTER RETURN (NOT AVAILABLE)

28261-147-000

Unavailable

9

SPINDLE, STARTER (NOT AVAILABLE)

28270-147-000

Unavailable

10

ARM SET, STARTER (NOT AVAILABLE)

28290-147-305

Unavailable

11

SHAFT, STARTER ARM (NOT AVAILABLE)

28291-147-010

Unavailable

12

ARM, STARTER (NOT AVAILABLE)

28294-147-000

Unavailable

13

STOPPER, STARTER (NOT AVAILABLE)

28295-147-010

Unavailable

14

RUBBER, DAMPER (NOT AVAILABLE)

28296-147-000

Unavailable

15

BOLT, STOPPER PIVOT

28297-147-000

Unavailable

16

CAP, DAMPER RUBBER (NOT AVAILABLE)

28298-147-000

Unavailable

17

BOLT, FLANGE (6X32) (NOT AVAILABLE)

90006-147-000

Unavailable

18

WASHER (12MM) (NOT AVAILABLE)

90451-708-000

Unavailable

19

WASHER (8.1MM) (NOT AVAILABLE)

90456-147-000

Unavailable

20

WASHER, THRUST (18.6MM)

90457-357-000

Unavailable

21

WASHER A (6.5MM)

90481-250-000

$1.93

22

OIL SEAL (14X28X7) (ARAI) This part replaces 91206-286-005.

91206-286-013

$3.01

22

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

23

SCREW, PAN (6X22) | Use up to Engine SN 2216444 This part replaces 93500-06022.

93500-06022-0A

$1.49

23

SCREW, PAN (6X22) BOLT, FLANGE (6X22) | Use up to Engine SN 2216444

93500-06022-0A

$1.49

23

BOLT, FLANGE (6X22) | Use from Engine SN 2216445 This part replaces 96000-06022-00.

96001-06022-00

$1.49

23

BOLT, FLANGE (6X22) | Use from Engine SN 2216445

96001-06022-00

$1.49

24

SCREW, PAN (6X32) | Use up to Engine SN 2216444 This part replaces 93500-06032.

93500-06032-0A

$1.49

24

SCREW, PAN (6X32) BOLT, FLANGE (6X32) | Use up to Engine SN 2216444

93500-06032-0A

$1.49

24

BOLT, FLANGE (6X32) | Use from Engine SN 2216445 This part replaces 96000-06032-00.

96001-06032-00

$1.49

24

BOLT, FLANGE (6X32) | Use from Engine SN 2216445

96001-06032-00

$1.49

25

NUT, HEX. (8MM)

94001-08000-0S

$1.49

26

PIN A, DOWEL (10X14)

94301-10140

$2.28

27

CIRCLIP (OUTER) (18MM)

94510-18000

$1.49

28

BEARING, RADIAL BALL (6002) This part replaces 96100-60020.

96100-60020-00

$11.80

28

BEARING, RADIAL BALL (6002)

96100-60020-00

$11.80
