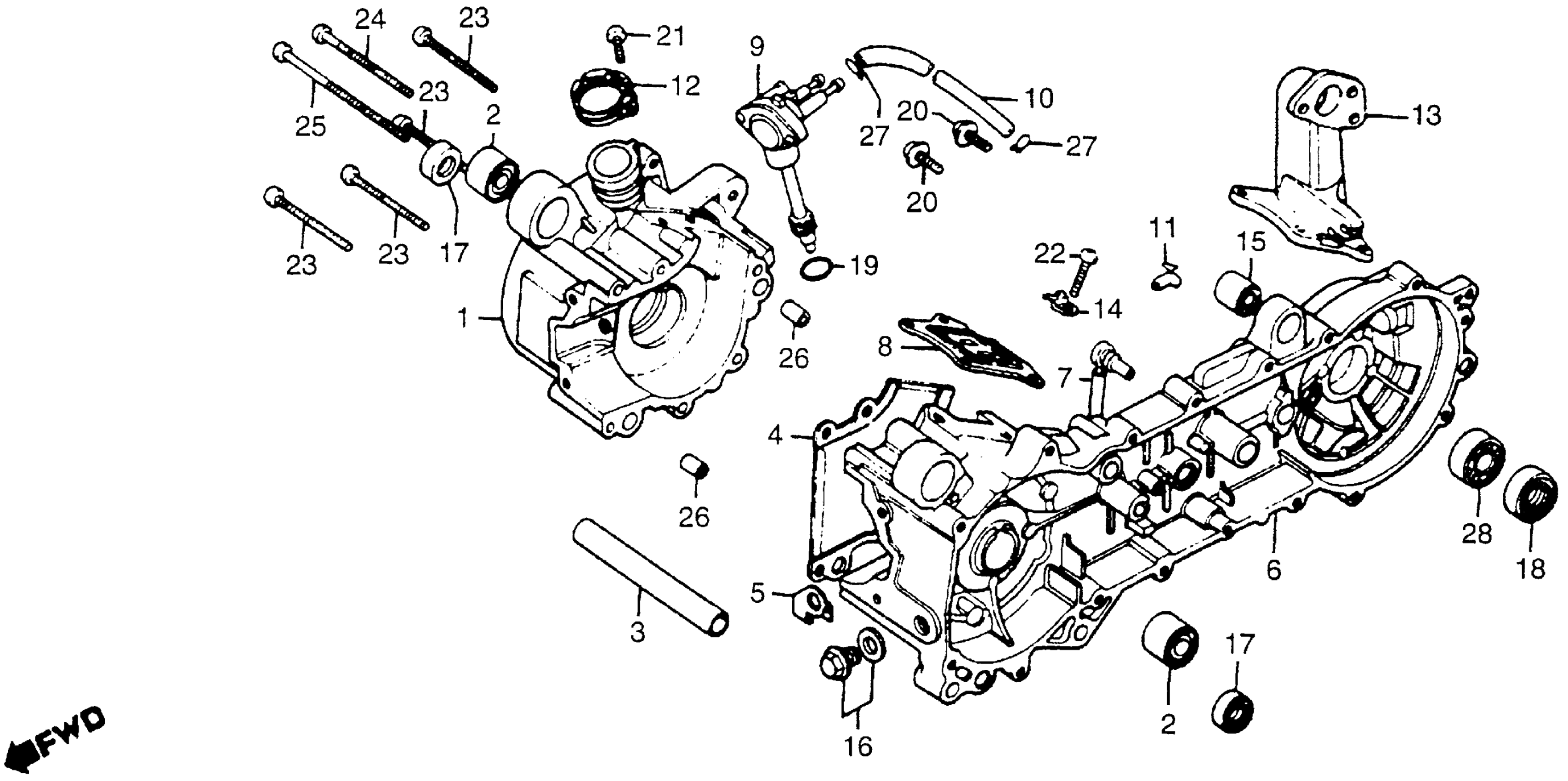

Honda NC50A (80) EXPRESS, JPN, VIN# NC50-2200005 TO NC50-2257744 CRANKCASE + OIL PUMP + REED VALVE 80 Diagram

#

Description
Price

1

CRANKCASE, R.

11101-191-000

Unavailable

2

BUSH, ENGINE HANGER RUBBER (NOT AVAILABLE)

11102-147-000

Unavailable

3

COLLAR, DISTANCE (NOT AVAILABLE)

11103-161-000

Unavailable

4

GASKET, CRANKCASE This part replaces 11191-147-000.

11191-147-010

$7.00

4

GASKET, CRANKCASE

11191-147-010

$7.00

4

GASKET, CRANKCASE This part replaces 11191-147-306.

11191-147-010

$7.00

5

CLAMP, TUBE (NOT AVAILABLE)

11204-147-000

Unavailable

6

CRANKCASE, L. (NOT AVAILABLE) | Use up to Engine SN 2216444 This part replaces 11210-147-010.

11210-147-020

Unavailable

6

CRANKCASE, L. (NOT AVAILABLE)

11210-147-020

Unavailable

7

TUBE, BREATHER (NOT AVAILABLE)

11211-147-030

Unavailable

8

VALVE, REED (ARAI) (NOT AVAILABLE) This part replaces 14100-147-013.

14100-147-015

Unavailable

8

VALVE, REED (ARAI) (NOT AVAILABLE) This part replaces 14100-147-014.

14100-147-015

Unavailable

8

VALVE, REED (ARAI) (NOT AVAILABLE)

14100-147-015

Unavailable

9

PUMP ASSY., OIL (19T) (NOT AVAILABLE)

15100-147-711

Unavailable

10

TUBE, OIL PASSAGE (NOT AVAILABLE)

15525-147-710

Unavailable

11

CLAMP, CHECK VALVE (NOT AVAILABLE) | Use up to Engine SN 2239444 This part replaces 15526-147-710.

15526-147-711

Unavailable

11

CLAMP, CHECK VALVE (NOT AVAILABLE) | Use from Engine SN 2239445

15526-147-711

Unavailable

12

BAND, OIL PUMP SETTING (NOT AVAILABLE)

15531-147-020

Unavailable

13

PIPE, INLET (NOT AVAILABLE)

17111-147-710

Unavailable

14

PLATE, CONTACT FIXING

35755-001-020

Unavailable

15

BUSH, RR. SWINGARM RUBBER (LOWER) (NOT AVAILABLE)

52109-222-810

Unavailable

16

BOLT, SEALING (14MM)

90081-035-000

$4.24

17

OIL SEAL (15X25.5X7) This part replaces 91201-147-003.

91201-GW2-000

$3.86

18

OIL SEAL (20X35X7)

91254-GF0-761

Unavailable

18

OIL SEAL (20X35X7) This part replaces 91254-816-000.

91254-GF0-761

Unavailable

19

O-RING (18.3X2.3) (ARAI) | Use up to Engine SN 2239444 This part replaces 91301-GA6-000.

91301-147-023

$2.20

19

O-RING (18.3X2.3) (ARAI) | Use up to Engine SN 2239444 This part replaces 91301-147-013.

91301-147-023

$2.20

19

O-RING (18.3X2.3) (ARAI) | Use up to Engine SN 2239444

91301-147-023

$2.20

20

BOLT, HEX. (6X25) | Use from Engine SN 2216445 This part replaces 92000-06025.

92101-06025-0A

$1.62

20

BOLT, HEX. (6X25) BOLT-WASHER (6X25) | Use from Engine SN 2216445

92101-06025-0A

$1.62

20

BOLT-WASHER (6X25) | Use up to Engine SN 2216444

93401-06025-00

$1.49

20

BOLT-WASHER (6X25) | Use up to Engine SN 2216444 This part replaces 93481-06025-00.

93401-06025-00

$1.49

21

SCREW, PAN (5X16)

93500-05016-0A

$1.49

22

SCREW, PAN (6X25) | Use up to Engine SN 2216444 This part replaces 93500-06025.

93500-06025-0A

$1.49

22

BOLT, FLANGE (6X25) | Use from Engine SN 2216445

96000-06025-00

$2.00

22

BOLT, FLANGE (6X25) | Use from Engine SN 2216445

96001-06025-00

$2.00

23

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

23

SCREW, PAN (6X45)

93500-06045-0A

$1.49

24

SCREW, PAN (6X60) This part replaces 93500-06060.

93500-06060-0A

$1.49

24

SCREW, PAN (6X60)

93500-06060-0A

$1.49

25

SCREW, PAN (6X80) This part replaces 93500-06080.

93500-06080-0A

$1.49

25

SCREW, PAN (6X80)

93500-06080-0A

$1.49

26

PIN A, DOWEL (10X20)

94301-10200

$2.35

27

CLIP, TUBE (B6.5)

95002-02650

$1.49

28

BEARING, RADIAL BALL (6202UU)

96150-62020-10

$14.36
