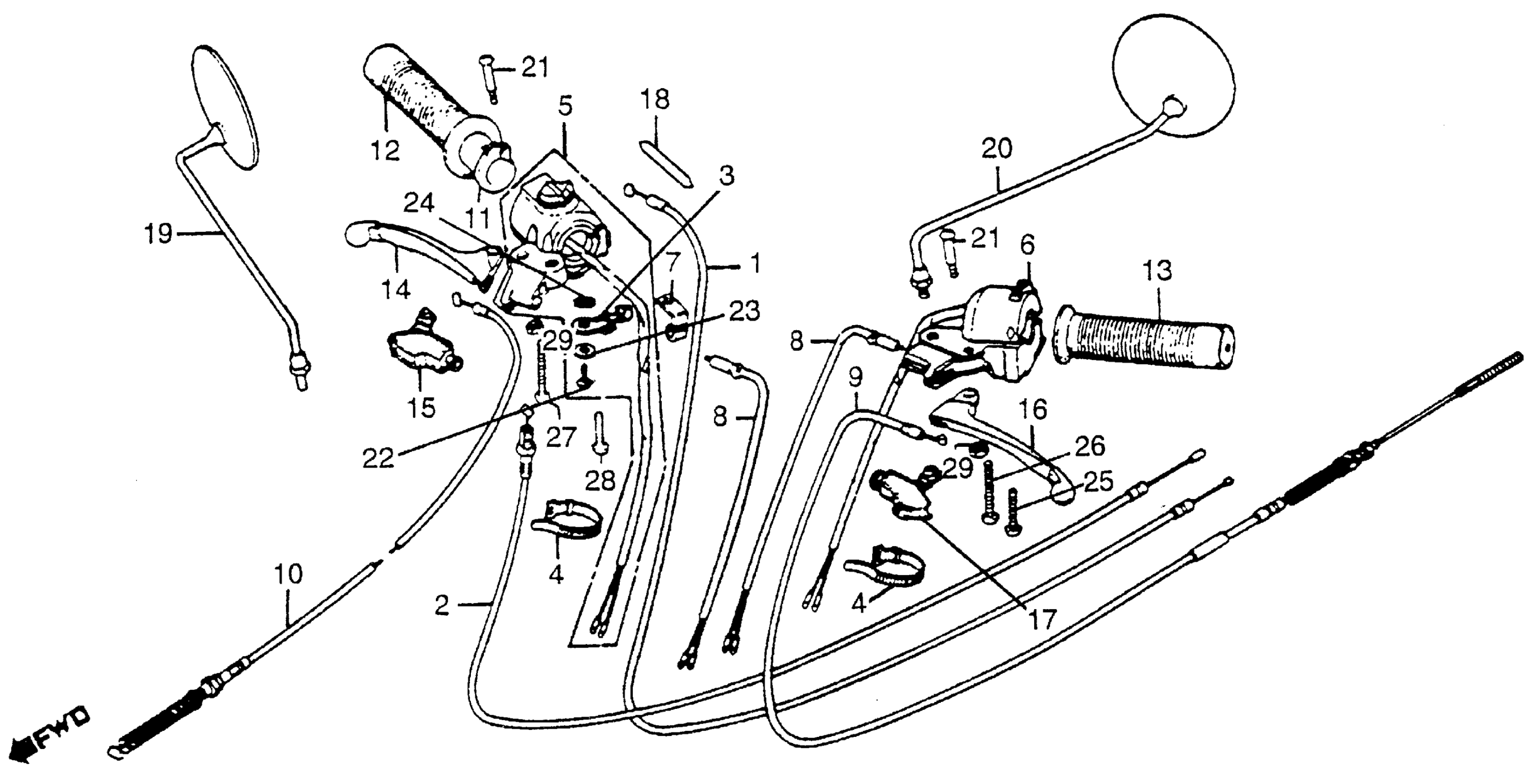

Honda NC50A (80) EXPRESS, JPN, VIN# NC50-2200005 TO NC50-2257744 CONTROL LEVERS + SWITCHES + CABLES Diagram

#

Description
Price

1

CABLE, CHOKE

14950-147-650

Unavailable

2

CABLE, THROTTLE

17910-147-650

Unavailable

3

LEVER, CHOKE (NOT AVAILABLE)

17961-147-000

Unavailable

4

BAND B1, CABLE

32161-404-000

$2.23

5

SWITCH ASSY., STOP

35200-147-673

Unavailable

6

SWITCH ASSY., TURN SIGNAL & HORN & DIMMER (NOT AVAILABLE) This part replaces 35200-147-971.

35200-190-660

Unavailable

6

SWITCH ASSY., TURN SIGNAL & HORN & DIMMER (NOT AVAILABLE)

35200-190-660

Unavailable

7

STOPPER, CABLE

35205-147-000

Unavailable

8

SWITCH ASSY., FR. STOP This part replaces 35340-187-700.

35340-GAN-620

$19.20

8

SWITCH ASSY., FR. STOP This part replaces 35340-401-681.

35340-GAN-620

$19.20

8

SWITCH ASSY., FR. STOP This part replaces 35340-401-682.

35340-GAN-620

$19.20

8

SWITCH ASSY., FR. STOP This part replaces 35340-437-661.

35340-GAN-620

$19.20

9

CABLE, RR. BRAKE CABLE, RR. BRAKE & STARTER

43450-147-651

Unavailable

9

CABLE, RR. BRAKE CABLE, RR. BRAKE & STARTER This part replaces 43450-147-970.

43450-147-651

Unavailable

10

CABLE, FR. BRAKE (NOT AVAILABLE) This part replaces 45450-147-970.

45450-190-671

Unavailable

10

CABLE, FR. BRAKE (NOT AVAILABLE) This part replaces 45450-190-670.

45450-190-671

Unavailable

10

CABLE, FR. BRAKE (NOT AVAILABLE)

45450-190-671

Unavailable

11

PIPE, THROTTLE GRIP This part replaces 53141-125-770.

53141-125-771

$15.29

11

PIPE, THROTTLE GRIP

53141-125-771

$15.29

12

GRIP, R. HANDLEBAR (NOT AVAILABLE)

53165-147-670

Unavailable

13

GRIP, L. HANDLEBAR (NOT AVAILABLE)

53166-147-670

Unavailable

14

LEVER, R. HANDLEBAR (COO) This part replaces 53175-147-671.

53175-GGA-305

$12.88

15

COVER, R. CONTROL LEVER

53176-170-700

$4.07

16

LEVER, L. HANDLEBAR (COO) This part replaces 53178-GF0-000.

53178-GGL-305

$14.62

16

LEVER, L. HANDLEBAR (COO) This part replaces 53178-GR2-000.

53178-GGL-305

$14.62

16

LEVER, L. HANDLEBAR (COO) This part replaces 53178-147-010.

53178-GGL-305

$14.62

16

LEVER, L. HANDLEBAR (COO) This part replaces 53178-155-000.

53178-GGL-305

$14.62

16

LEVER, L. HANDLEBAR (COO) This part replaces 53178-187-000.

53178-GGL-305

$14.62

17

COVER, L. HANDLE LEVER (NOT AVAILABLE)

53179-147-970

Unavailable

18

LABEL, CHOKE LEVER (NOT AVAILABLE)

87506-147-670

Unavailable

19

MIRROR ASSY., R. BACK MIRROR, R.

88110-088-950

Unavailable

19

MIRROR ASSY., R. BACK This part replaces 88110-126-751.

88110-088-950

Unavailable

19

MIRROR ASSY., R. BACK This part replaces 88110-178-000.

88110-088-950

Unavailable

20

MIRROR ASSY., L. BACK MIRROR, L.

88120-088-950

Unavailable

20

MIRROR ASSY., L. BACK This part replaces 88120-126-751.

88120-088-950

Unavailable

20

MIRROR ASSY., L. BACK This part replaces 88120-178-000.

88120-088-950

Unavailable

21

SCREW, HANDLE LEVER PIVOT

90115-170-700

$3.74

22

SCREW, PAN (5MM) (NOT AVAILABLE)

90116-147-000

Unavailable

23

WASHER (NOT AVAILABLE)

90441-147-000

$1.49

24

WASHER, WAVE

90442-147-000

Unavailable

25

SCREW, PAN (5X28)

93500-05028-0A

$1.49

26

SCREW, PAN (5X32)

93500-05032-0A

$1.49

27

SCREW, PAN (5X35)

93500-05035-0A

$1.49

28

SCREW, PAN (5X40)

93500-05040-0A

$1.49

29

NUT, HEX. (5MM)

94001-05000-0S

$2.74
