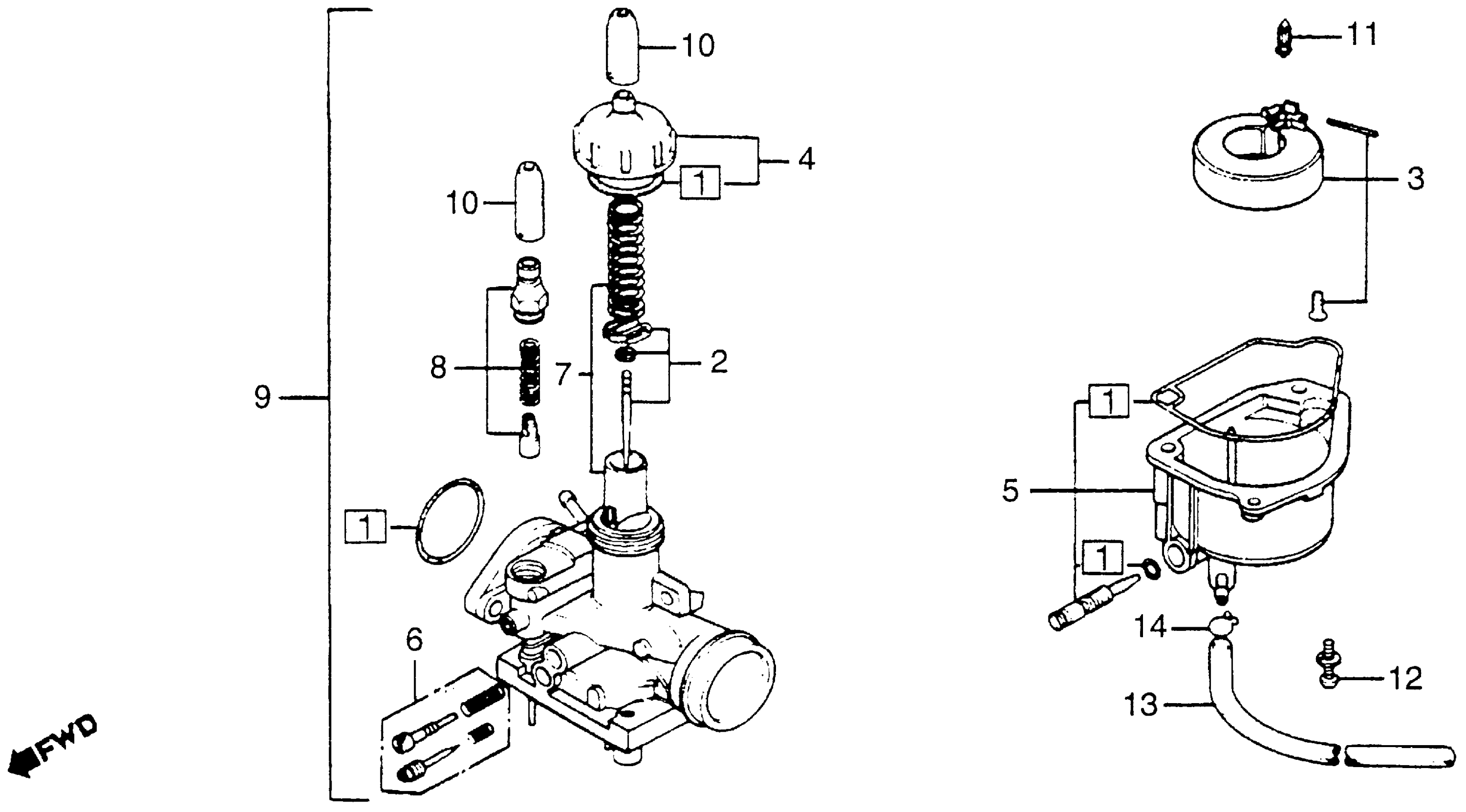

Honda NC50A (80) EXPRESS, JPN, VIN# NC50-2200005 TO NC50-2257744 CARBURETOR 80 Diagram

PACKING SET This part replaces 16010-147-711.

16010-147-505

Unavailable

NEEDLE SET, JET (NOT AVAILABLE)

16012-147-014

Unavailable

FLOAT SET

16013-147-004

$44.62

TOP SET (NOT AVAILABLE) This part replaces 16014-147-004.

16014-147-014

Unavailable

TOP SET (NOT AVAILABLE)

16014-147-014

Unavailable

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-147-014

Unavailable

SCREW SET (NOT AVAILABLE)

16016-147-711

Unavailable

VALVE SET, THROTTLE (NOT AVAILABLE) This part replaces 16022-143-620.

16022-191-004

Unavailable

VALVE SET, STARTER

16046-147-004

Unavailable

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-147-711.

16100-147-712

Unavailable

CARBURETOR ASSY. (NOT AVAILABLE)

16100-147-712

Unavailable

CAP, CABLE SEALING This part replaces 16118-086-004.

16118-166-004

$8.08

CAP, CABLE SEALING

16118-166-004

$8.08

VALVE, FLOAT

16155-883-005

$20.11

SCREW-WASHER (4X12)

93892-04012-08

$1.49

BULK HOSE, FUEL (3.5X3000) (3.5X300)

95001-35003-60M

$20.85

CLIP, TUBE (B7)

95002-02070

$1.80
