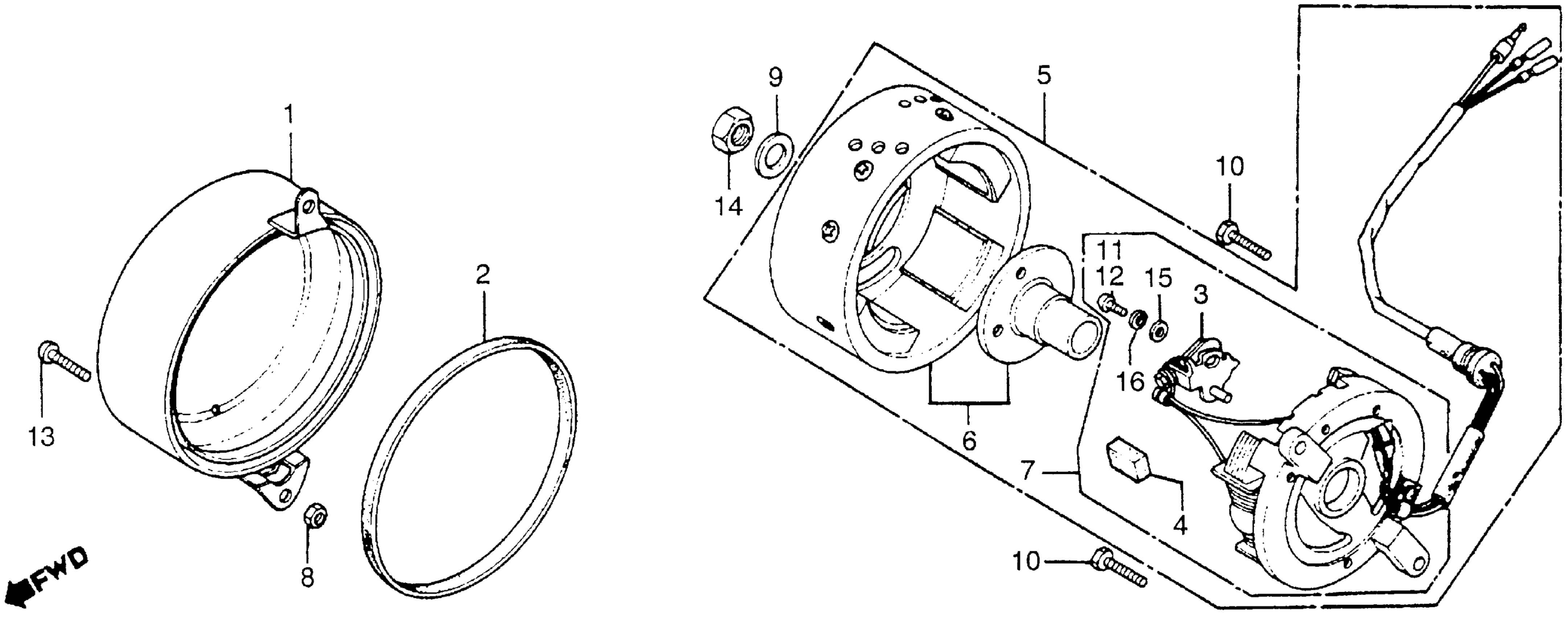

Honda NC50A (80) EXPRESS, JPN, VIN# NC50-2200005 TO NC50-2257744 ALTERNATOR 80 Diagram

COVER, ALTERNATOR (NOT AVAILABLE)

11431-147-702

Unavailable

GASKET, ALTERNATOR COVER

11432-147-000

Unavailable

POINTS (HITACHI) POINTS (DENSO)

30202-041-015

$29.26

POINTS (DENSO) POINTS (MITSUBA)

30202-131-004

Unavailable

POINTS (HITACHI) This part replaces 30202-147-008.

30202-041-015

$29.26

FELT, OIL (NOT AVAILABLE)

30205-147-000

Unavailable

ALTERNATOR ASSY. (DENSO) (NOT AVAILABLE) ALTERNATOR ASSY. (MITSUBA)

31100-147-711

Unavailable

ALTERNATOR ASSY. (MITSUBA) (NOT AVAILABLE)

31100-147-712

Unavailable

FLYWHEEL (DENSO) (NOT AVAILABLE) FLYWHEEL (MITSUBA)

31121-147-711

Unavailable

FLYWHEEL (MITSUBA) (NOT AVAILABLE)

31121-147-712

Unavailable

STATOR (DENSO) (NOT AVAILABLE) STATOR (MITSUBA)

31141-147-711

Unavailable

STATOR (MITSUBA) (NOT AVAILABLE)

31141-147-712

Unavailable

NUT, SPECIAL (6MM)

90205-147-000

Unavailable

WASHER, MAGNET FIXING

90426-035-000

$2.57

BOLT, HEX. (6X20) | Use up to Engine SN 2216444 This part replaces 92000-06020.

92101-06020-0A

$1.49

BOLT, HEX. (6X20) BOLT, FLANGE (6X20) | Use up to Engine SN 2216444

92101-06020-0A

$1.49

BOLT, FLANGE (6X20) | Use from Engine SN 2216445 This part replaces 96000-06020-00.

96001-06020-00

$1.49

BOLT, FLANGE (6X20) | Use from Engine SN 2216445

96001-06020-00

$1.49

SCREW, PAN (4X10)

93500-04010-0A

$1.49

SCREW, PAN (4X12)

93500-04012-0A

$1.49

SCREW, PAN (6X22) This part replaces 93500-06022.

93500-06022-0A

$1.49

SCREW, PAN (6X22)

93500-06022-0A

$1.49

NUT, HEX. (10MM) NUT, FLANGE (10MM) | Use up to Engine SN 2216444

94031-10000

$1.49

NUT, FLANGE (10MM) | Use from Engine SN 2216445

94050-10000

$1.59

WASHER, PLAIN (4MM)

94101-04000

$1.49

WASHER, SPRING (4MM)

94111-04000

$1.49
