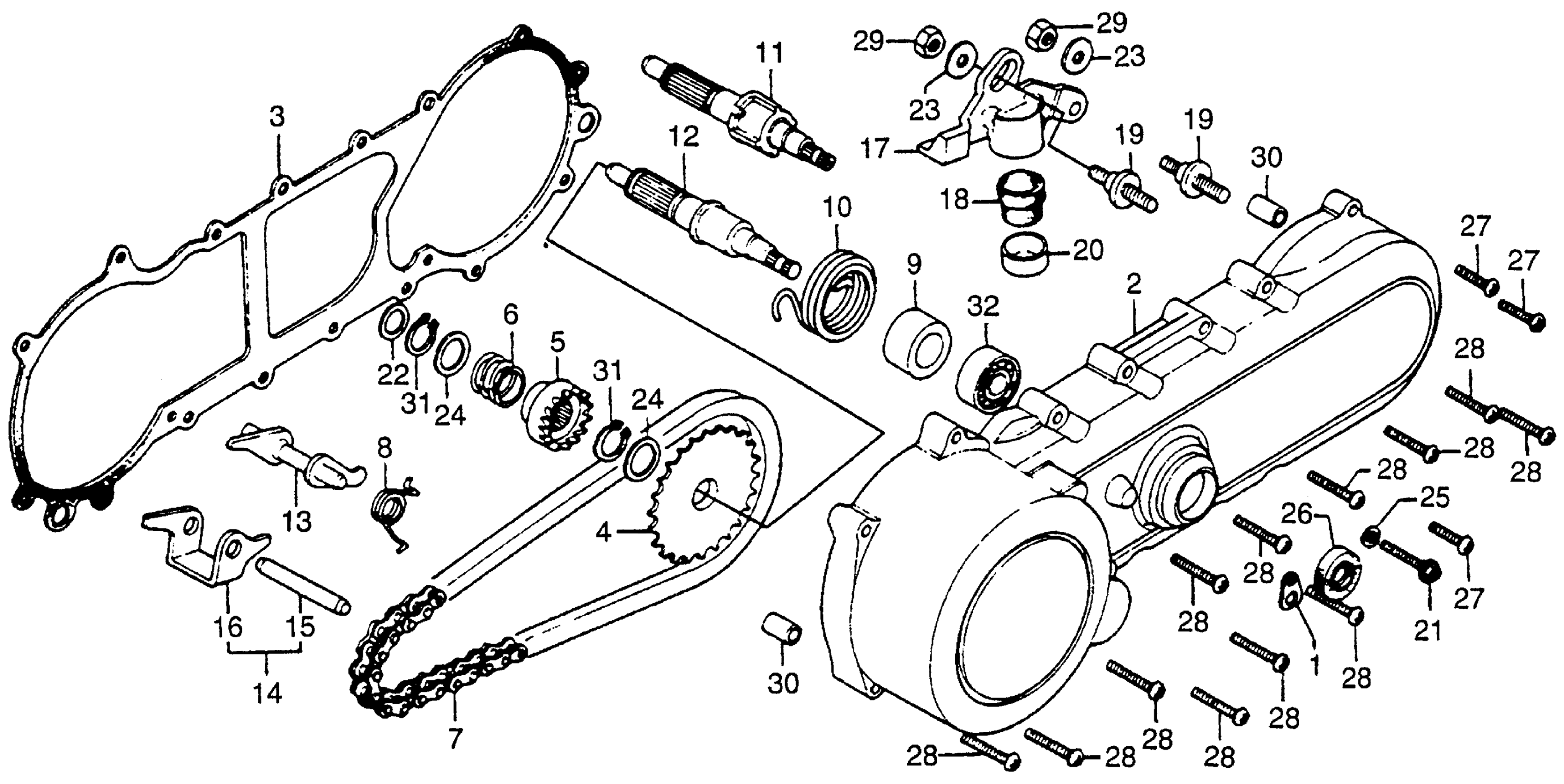

Honda NC50A (79) EXPRESS, JPN, VIN# NC50-2100011 LEFT CRANKCASE COVER Diagram

COVER, L. CRANKCASE (NOT AVAILABLE)

11340-147-050

Unavailable

GASKET, L. CRANKCASE COVER This part replaces 11395-147-010.

11395-147-306

Unavailable

GASKET, L. CRANKCASE COVER

11395-147-306

Unavailable

SPROCKET, STARTER DRIVE (NOT AVAILABLE)

28210-147-010

Unavailable

RATCHET B, STARTER (NOT AVAILABLE)

28221-147-000

Unavailable

SPRING, STARTER RATCHET (NOT AVAILABLE)

28223-147-000

Unavailable

CHAIN, STARTER DRIVE (DID219H-62LE)

28240-147-003

Unavailable

SPRING, LEVER ARM (NOT AVAILABLE)

28258-147-000

Unavailable

SPRING, STARTER RETURN (NOT AVAILABLE)

28261-147-000

Unavailable

SPINDLE, STARTER (NOT AVAILABLE)

28270-147-000

Unavailable

ARM SET, STARTER (NOT AVAILABLE)

28290-147-305

Unavailable

SHAFT, STARTER ARM (NOT AVAILABLE)

28291-147-010

Unavailable

ARM, STARTER (NOT AVAILABLE)

28294-147-000

Unavailable

STOPPER, STARTER (NOT AVAILABLE)

28295-147-010

Unavailable

RUBBER, DAMPER (NOT AVAILABLE)

28296-147-000

Unavailable

BOLT, STOPPER PIVOT

28297-147-000

Unavailable

CAP, DAMPER RUBBER (NOT AVAILABLE)

28298-147-000

Unavailable

BOLT, FLANGE (6X32) (NOT AVAILABLE)

90006-147-000

Unavailable

WASHER (12MM) (NOT AVAILABLE)

90451-708-000

Unavailable

WASHER (8.1MM) (NOT AVAILABLE)

90456-147-000

Unavailable

WASHER, THRUST (18.6MM)

90457-357-000

Unavailable

WASHER A (6.5MM)

90481-250-000

$1.93

OIL SEAL (14X28X7) (ARAI) This part replaces 91206-286-005.

91206-286-013

$3.01

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

NUT, HEX. (8MM)

94001-08000-0S

$1.49

PIN A, DOWEL (10X14)

94301-10140

$2.28

CIRCLIP (OUTER) (18MM)

94510-18000

$1.49

BEARING, RADIAL BALL (6002) This part replaces 96100-60020.

96100-60020-00

$11.80

BEARING, RADIAL BALL (6002)

96100-60020-00

$11.80
