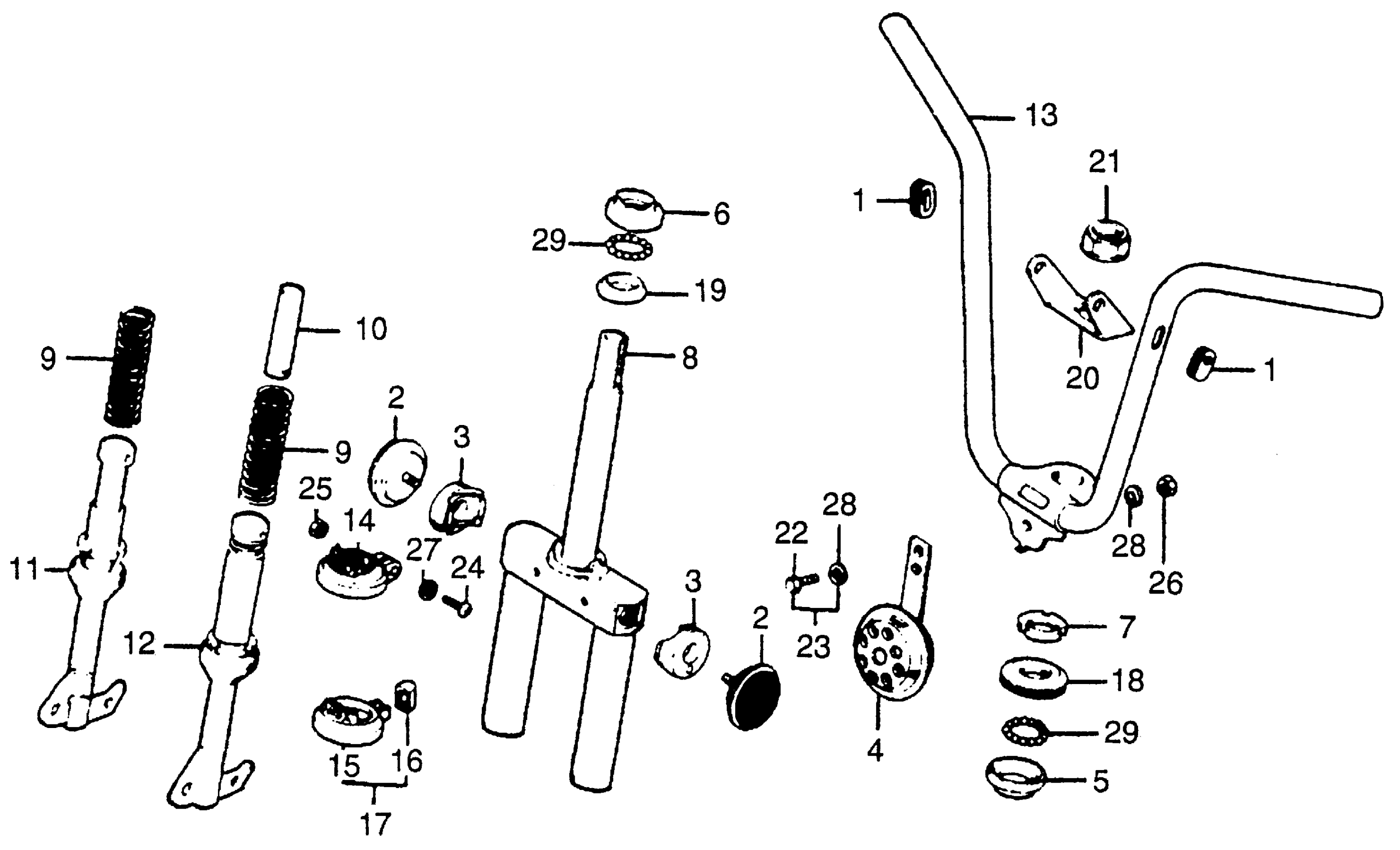

Honda NC50A (79) EXPRESS, JPN, VIN# NC50-2100011 HANDLEBAR + HORN Diagram

#

Description
Price

1

GROMMET, THROTTLE CABLE

17911-023-000

$4.12

1

GROMMET, THROTTLE CABLE This part replaces 32983-126-000.

17911-023-000

$4.12

2

REFLECTOR, FR. REFLEX This part replaces 33741-413-003.

33742-HB9-641

$13.14

2

REFLECTOR, FR. REFLEX This part replaces 33741-413-013.

33742-HB9-641

$13.14

2

REFLECTOR, FR. REFLEX

33742-HB9-641

$13.14

3

BASE, FR. REFLECTOR (NOT AVAILABLE)

33743-147-670

Unavailable

4

HORN ASSY. (HIGH)

38110-GS3-013

Unavailable

4

HORN ASSY. (HIGH) This part replaces 38110-147-004.

38110-GS3-013

Unavailable

5

RACE, STEERING BALL (UPPER)

50301-GM0-000

$12.16

5

RACE, STEERING BALL (UPPER) (MITSUBOSHI)

50301-147-003

$12.16

6

RACE, STEERING BALL (LOWER)

50305-GE8-680

$10.48

6

RACE, STEERING BALL (LOWER) This part replaces 50305-147-003.

50305-GE8-680

$10.48

7

NUT, STEERING STEM LOCK (MITSUBOSHI)

50306-147-003

Unavailable

8

FORK, FR. *Y31* (PARAKEET YELLOW) (NOT AVAILABLE)

51105-147-672ZC

Unavailable

8

FORK, FR. *YR26* (SHINY ORANGE) (NOT AVAILABLE)

51105-147-672ZD

Unavailable

8

FORK, FR. *PB31* (BLUE ANGEL) (NOT AVAILABLE)

51105-147-672ZE

Unavailable

9

SPRING, FR. FORK (NOT AVAILABLE)

51401-147-670

Unavailable

10

RUBBER, STOPPER (NOT AVAILABLE)

51406-147-000

Unavailable

11

PIPE, R. SLIDE

51420-147-000

Unavailable

12

PIPE, L. SLIDE (NOT AVAILABLE)

51520-147-000

Unavailable

13

HANDLEBAR (NOT AVAILABLE)

53100-147-710

Unavailable

15

COVER, HANDLE STOPPER (NOT AVAILABLE)

53204-147-010

Unavailable

16

CAP, FIXING (NOT AVAILABLE)

53205-147-300

Unavailable

17

COVER SET, STEERING STOPPER (NOT AVAILABLE)

53210-147-305

Unavailable

18

RACE, STEERING TOP CONE (MITSUBOSHI) (NOT AVAILABLE)

53211-147-003

Unavailable

19

RACE, STEERING CONE (LOWER) (MITSUBOSHI)

53212-147-003

$8.74

20

STAY, HEADLIGHT (NOT AVAILABLE)

61305-147-670

Unavailable

21

NUT, STEERING STEM

90301-147-010

Unavailable

23

BOLT-WASHER (6X12)

93402-06012-00

$1.69

23

BOLT-WASHER (6X12) This part replaces 93412-06012-00.

93402-06012-00

$1.69

23

BOLT-WASHER (6X12) This part replaces 93482-06012-00.

93402-06012-00

$1.69

26

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM)

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

28

WASHER, SPRING (6MM)

94111-06000

$1.49

29

BALL, STEEL (#5) (5/32)

96211-05000

$1.49
