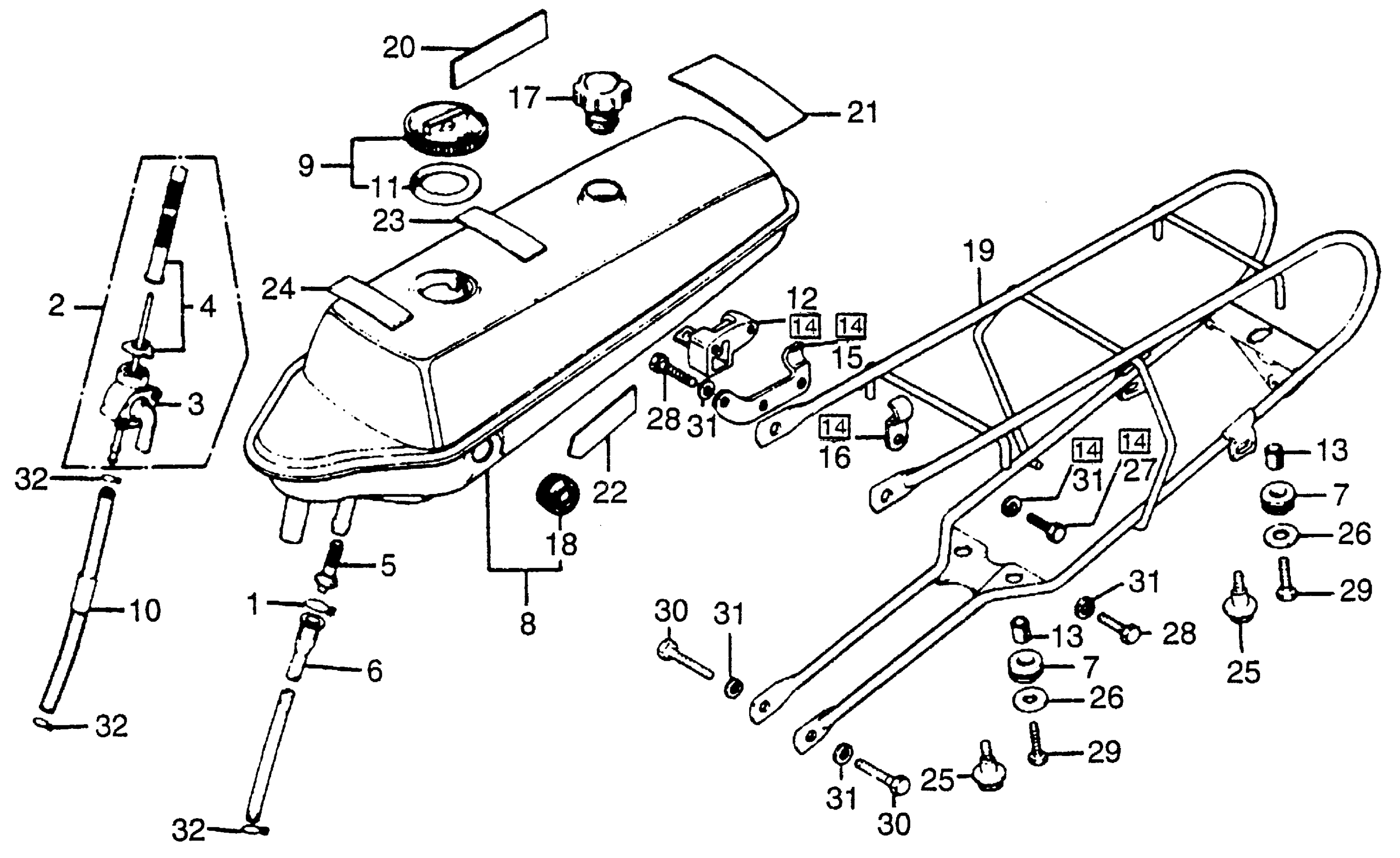

Honda NC50A (79) EXPRESS, JPN, VIN# NC50-2100011 FUEL TANK + CARRIER Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-500-010

$3.90

1

CLIP, BREATHER TUBE This part replaces 15772-500-013.

15772-500-010

$3.90

2

PETCOCK ASSY. | Use up to Frame SN 2109455 This part replaces 16950-147-025.

16950-147-045

Unavailable

2

PETCOCK ASSY. This part replaces 16950-147-035.

16950-147-045

Unavailable

2

PETCOCK ASSY. | Use up to Frame SN 2109455 This part replaces 16950-147-035.

16950-147-045

Unavailable

2

PETCOCK ASSY.

16950-147-045

Unavailable

2

PETCOCK ASSY. | Use up to Frame SN 2109455

16950-147-045

Unavailable

3

BODY SET, PETCOCK (NOT AVAILABLE) | Use up to Frame SN 2109455 This part replaces 16951-147-015.

16951-147-035

Unavailable

3

BODY SET, PETCOCK (NOT AVAILABLE) This part replaces 16951-147-025.

16951-147-035

Unavailable

3

BODY SET, PETCOCK (NOT AVAILABLE)

16951-147-035

Unavailable

4

SCREEN SET, FUEL STRAINER (NOT AVAILABLE) | Use up to Frame SN 2109455 This part replaces 16952-147-015.

16952-147-035

Unavailable

4

SCREEN SET, FUEL STRAINER (NOT AVAILABLE) This part replaces 16952-147-025.

16952-147-035

Unavailable

4

SCREEN SET, FUEL STRAINER (NOT AVAILABLE)

16952-147-035

Unavailable

5

STRAINER, OIL

17502-147-010

Unavailable

6

TUBE, OIL

17504-147-010

$5.55

7

RUBBER, FUEL TANK MOUNT

17506-147-000

Unavailable

8

TANK ASSY., FUEL *Y31* (PARAKEET YELLOW) (NOT AVAILABLE) This part replaces 17510-147-315ZE.

17510-147-505ZE

Unavailable

8

TANK ASSY., FUEL *Y31* (PARAKEET YELLOW) (NOT AVAILABLE) This part replaces 17510-147-325ZE.

17510-147-505ZE

Unavailable

8

TANK ASSY., FUEL *Y31* (PARAKEET YELLOW) (NOT AVAILABLE)

17510-147-505ZE

Unavailable

8

TANK ASSY., FUEL *YR26* (SHINY ORANGE) (NOT AVAILABLE) This part replaces 17510-147-315ZM.

17510-147-505ZM

Unavailable

8

TANK ASSY., FUEL *PB31* (BLUE ANGEL) (NOT AVAILABLE) This part replaces 17510-147-315ZN.

17510-147-505ZN

Unavailable

8

TANK ASSY., FUEL *YR26* (SHINY ORANGE) (NOT AVAILABLE) This part replaces 17510-147-325ZM.

17510-147-505ZM

Unavailable

8

TANK ASSY., FUEL *PB31* (BLUE ANGEL) (NOT AVAILABLE) This part replaces 17510-147-325ZN.

17510-147-505ZN

Unavailable

8

TANK ASSY., FUEL *YR26* (SHINY ORANGE) (NOT AVAILABLE)

17510-147-505ZM

Unavailable

8

TANK ASSY., FUEL *PB31* (BLUE ANGEL) (NOT AVAILABLE)

17510-147-505ZN

Unavailable

9

CAP, FUEL FILLER | Use up to Frame SN 2120127 This part replaces 17620-147-672.

17620-165-643

$42.47

9

CAP, FUEL FILLER This part replaces 17620-147-971.

17620-165-643

$42.47

9

CAP, FUEL FILLER | Use up to Frame SN 2120127 This part replaces 17620-147-971.

17620-165-643

$42.47

9

CAP, FUEL FILLER This part replaces 17620-147-972.

17620-165-643

$42.47

9

CAP, FUEL FILLER | Use up to Frame SN 2120127 This part replaces 17620-147-972.

17620-165-643

$42.47

9

CAP, FUEL FILLER This part replaces 17620-165-642.

17620-165-643

$42.47

9

CAP, FUEL FILLER | Use up to Frame SN 2120127 This part replaces 17620-165-642.

17620-165-643

$42.47

9

CAP, FUEL FILLER This part replaces 17620-957-003.

17620-165-643

$42.47

9

CAP, FUEL FILLER | Use up to Frame SN 2120127 This part replaces 17620-957-003.

17620-165-643

$42.47

10

BULK HOSE, FUEL (4.5X3000) (4.5X100)

95001-45003-60M

$36.67

11

GASKET This part replaces 17631-096-700.

17631-096-702

$2.47

11

GASKET This part replaces 17631-096-701.

17631-096-702

$2.47

12

LOCK SET (NOT AVAILABLE) | (Optional).

35010-147-810

Unavailable

14

HOLDER SET, HELMET (NOT AVAILABLE) | (Optional).

50710-147-305

Unavailable

15

BRACKET A, HELMET HOLDER (NOT AVAILABLE) | (Optional).

50711-147-810

Unavailable

16

BRACKET B, HELMET HOLDER (NOT AVAILABLE) | (Optional).

50712-147-810

Unavailable

17

CAP, OIL

55105-147-000

Unavailable

18

DIPSTICK, OIL (NOT AVAILABLE)

55118-147-010

Unavailable

19

CARRIER, LUGGAGE (NOT AVAILABLE)

81200-147-670

Unavailable

20

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

21

LABEL, CAUTION (NOT AVAILABLE)

87505-147-670

Unavailable

22

LABEL, OIL CAUTION (NOT AVAILABLE)

87507-147-671

Unavailable

23

LABEL B, CAUTION *NH1* (BLACK) (NOT AVAILABLE) This part replaces 87509-147-670.

87509-147-670ZA

Unavailable

23

LABEL B, CAUTION *NH1* (BLACK) (NOT AVAILABLE)

87509-147-670ZA

Unavailable

24

LABEL, FUEL *NH1* (BLACK) (NOT AVAILABLE)

87512-147-670ZA

Unavailable

25

BOLT, FLANGE (6MM)

90110-147-000

$3.83

27

BOLT, HEX. (6X12) | (Optional). This part replaces 92000-06012.

92101-06012-0A

$1.49

27

BOLT, HEX. (6X12) | (Optional). This part replaces 92101-06012.

92101-06012-0A

$1.49

27

BOLT, HEX. (6X12) | (Optional).

92101-06012-0A

$1.49

28

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

28

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

28

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

28

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

28

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

28

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

30

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

30

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

31

WASHER, SPRING (6MM)

94111-06000

$1.49

32

CLIP, TUBE (B8)

95002-02080

$1.80
