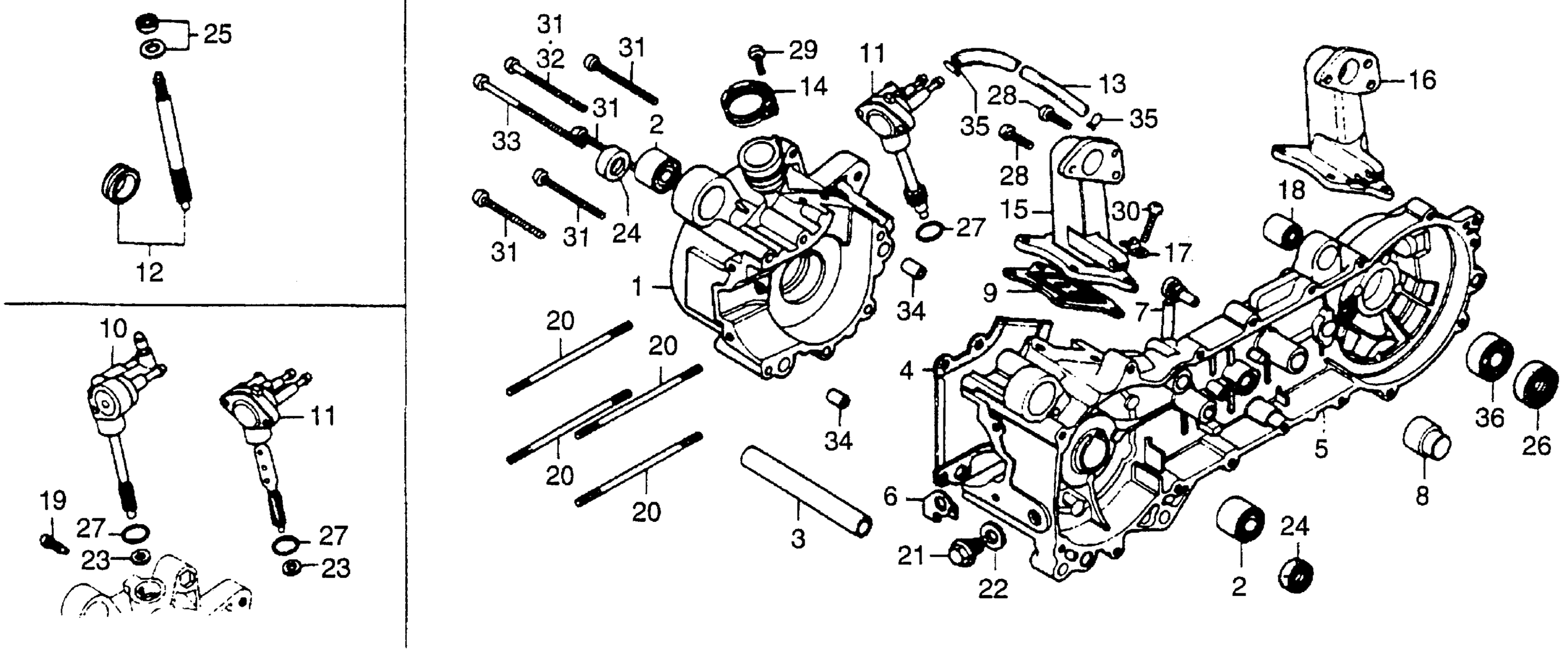

Honda NC50A (79) EXPRESS, JPN, VIN# NC50-2100011 CRANKCASE + OIL PUMP Diagram

#

Description
Price

1

CRANKCASE, R.

11101-147-701

Unavailable

2

BUSH, ENGINE HANGER RUBBER (NOT AVAILABLE)

11102-147-000

Unavailable

3

COLLAR, DISTANCE | Use up to Engine SN 2125237

11103-147-000

Unavailable

3

COLLAR, DISTANCE (NOT AVAILABLE) | Use from Engine SN 2125238

11103-161-000

Unavailable

4

GASKET, CRANKCASE This part replaces 11191-147-000.

11191-147-010

$7.00

4

GASKET, CRANKCASE

11191-147-010

$7.00

4

GASKET, CRANKCASE This part replaces 11191-147-306.

11191-147-010

$7.00

5

CRANKCASE, L. (NOT AVAILABLE) | Use up to Engine SN 2143397 This part replaces 11210-147-010.

11210-147-020

Unavailable

5

CRANKCASE, L. (NOT AVAILABLE)

11210-147-020

Unavailable

6

CLAMP, TUBE (NOT AVAILABLE)

11204-147-000

Unavailable

7

TUBE, BREATHER (NOT AVAILABLE)

11211-147-030

Unavailable

9

VALVE, REED (ARAI) (NOT AVAILABLE) This part replaces 14100-147-013.

14100-147-015

Unavailable

9

VALVE, REED (ARAI) (NOT AVAILABLE) This part replaces 14100-147-014.

14100-147-015

Unavailable

9

VALVE, REED (ARAI) (NOT AVAILABLE)

14100-147-015

Unavailable

11

PUMP ASSY., OIL (19T) | Use up to Engine SN 2137737

15100-147-093

Unavailable

11

PUMP ASSY., OIL (19T) (NOT AVAILABLE) | Use from Engine SN 2137738

15100-147-711

Unavailable

13

TUBE, OIL PASSAGE (NOT AVAILABLE) | Use up to Engine SN 2137737 This part replaces 15525-147-000.

15525-GA6-670

Unavailable

13

TUBE, OIL PASSAGE (NOT AVAILABLE) | Use from Engine SN 2137738

15525-147-710

Unavailable

14

CLAMP, CHECK VALVE (NOT AVAILABLE) | Use from Engine SN 2137738 This part replaces 15526-147-710.

15526-147-711

Unavailable

15

BAND, OIL PUMP SETTING (NOT AVAILABLE)

15531-147-020

Unavailable

16

PIPE, INLET | Use up to Engine SN 2137737

17100-147-020

Unavailable

16

PIPE, INLET (NOT AVAILABLE) | Use from Engine SN 2137738

17111-147-710

Unavailable

17

PLATE, CONTACT FIXING

35755-001-020

Unavailable

18

BUSH, RR. SWINGARM RUBBER (LOWER) (NOT AVAILABLE)

52109-222-810

Unavailable

21

BOLT, SEALING (14MM)

90081-035-000

$4.24

24

OIL SEAL (15X25.5X7) This part replaces 91201-147-003.

91201-GW2-000

$3.86

26

OIL SEAL (20X35X7)

91254-GF0-761

Unavailable

26

OIL SEAL (20X35X7) This part replaces 91254-816-000.

91254-GF0-761

Unavailable

27

O-RING (18.3X2.3) (ARAI) This part replaces 91301-GA6-000.

91301-147-023

$2.20

27

O-RING (18.3X2.3) (ARAI) This part replaces 91301-147-013.

91301-147-023

$2.20

27

O-RING (18.3X2.3) (ARAI)

91301-147-023

$2.20

28

SCREW, PAN (6X22) This part replaces 93500-06022.

93500-06022-0A

$1.49

28

SCREW, PAN (6X22)

93500-06022-0A

$1.49

29

SCREW, PAN (5X16)

93500-05016-0A

$1.49

31

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

31

SCREW, PAN (6X45)

93500-06045-0A

$1.49

32

SCREW, PAN (6X60) This part replaces 93500-06060.

93500-06060-0A

$1.49

32

SCREW, PAN (6X60)

93500-06060-0A

$1.49

33

SCREW, PAN (6X80) This part replaces 93500-06080.

93500-06080-0A

$1.49

33

SCREW, PAN (6X80)

93500-06080-0A

$1.49

34

PIN A, DOWEL (10X20)

94301-10200

$2.35

35

CLIP, TUBE (B6.5)

95002-02650

$1.49

36

BEARING, RADIAL BALL (6202UU)

96150-62020-10

$14.36
