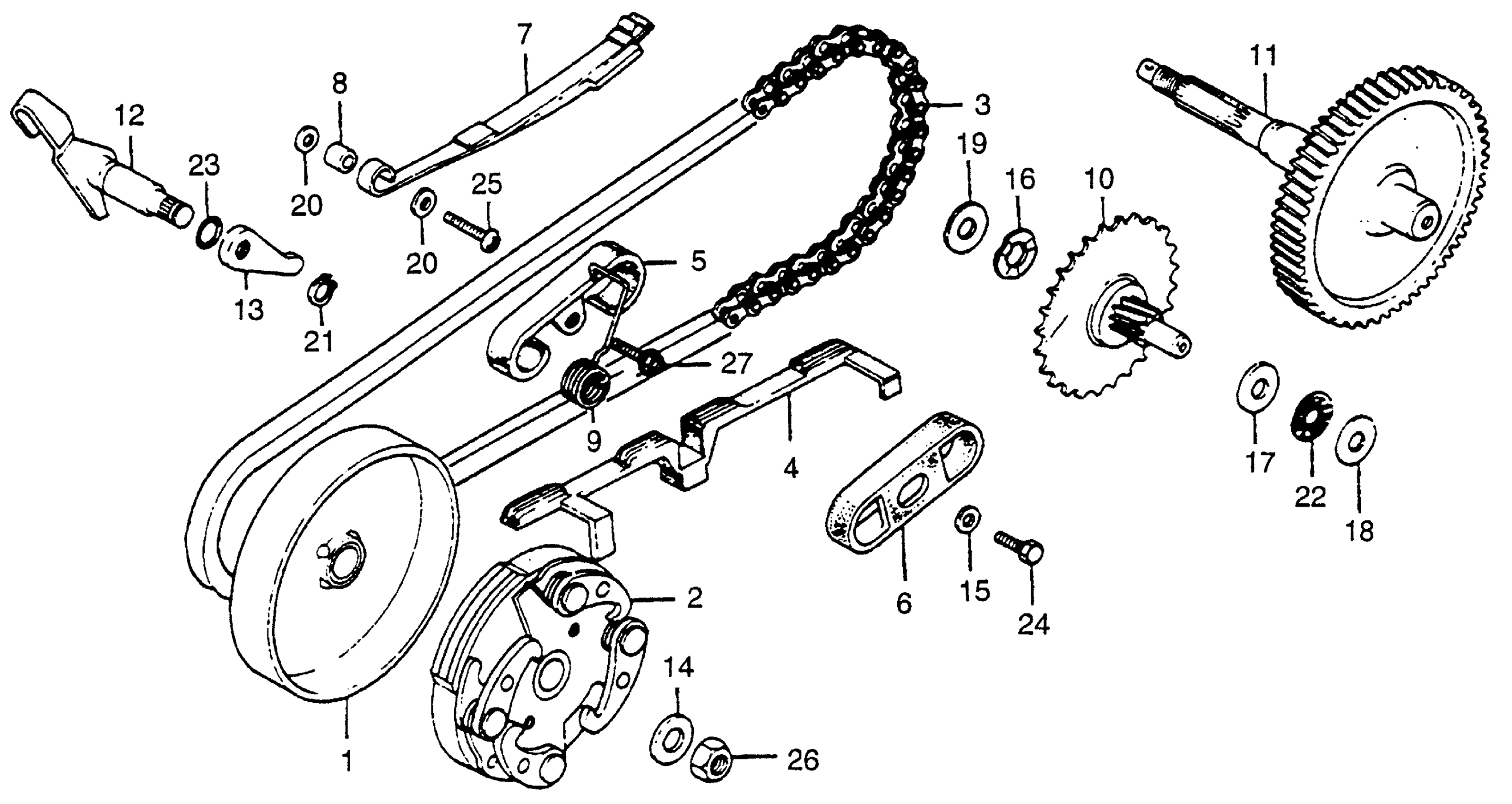

Honda NC50A (79) EXPRESS, JPN, VIN# NC50-2100011 CLUTCH + DRIVE CHAIN Diagram

#

Description
Price

1

CLUTCH (OUTER) (NOT AVAILABLE)

22100-147-000

Unavailable

2

PLATE ASSY., DRIVE (NOT AVAILABLE)

22300-147-000

Unavailable

3

CHAIN, DRIVE (270H-80L) (DID)

23100-147-003

Unavailable

4

GUIDE A, DRIVE CHAIN

23110-147-000

Unavailable

6

GUIDE B, DRIVE CHAIN (NOT AVAILABLE)

23120-147-010

Unavailable

7

TENSIONER, DRIVE CHAIN

23130-147-020

Unavailable

9

SPRING, TENSIONER (NOT AVAILABLE)

23145-147-000

Unavailable

10

SPROCKET, DRIVEN (NOT AVAILABLE)

23200-147-040

Unavailable

11

GEAR, FINAL

23220-147-010

Unavailable

12

SHAFT, STARTER LEVER (NOT AVAILABLE)

28251-147-020

Unavailable

13

ARM, STARTER LEVER (NOT AVAILABLE)

28257-147-000

Unavailable

15

WASHER, SPECIAL (6MM)

90438-671-000

$4.80

16

WASHER, WAVE (12MM) (NOT AVAILABLE)

90444-147-000

Unavailable

17

WASHER (12X26X2.75) (NOT AVAILABLE)

90451-147-003

Unavailable

17

WASHER, THRUST (12X26X2.75) (NOT AVAILABLE)

90451-147-006

Unavailable

18

WASHER, THRUST (12MM) (TOYO)

90452-147-003

$3.62

18

WASHER, THRUST (12MM) (TOMUSON)

90452-147-006

$3.97

19

WASHER (12MM) (NOT AVAILABLE)

90453-147-000

Unavailable

20

WASHER (6X16)

90473-147-000

$1.49

21

CIRCLIP (OUTER) (9MM) (NOT AVAILABLE)

90601-147-000

Unavailable

22

BEARING, NEEDLE (12MM)

91001-147-003

$12.58

22

BEARING, NEEDLE (12MM) (TOMUSON)

91001-147-006

$13.34

23

O-RING (8.8X1.9)

91302-GE0-000

$3.23

23

O-RING (8.8X1.9) This part replaces 91303-719-000.

91302-GE0-000

$3.23

23

O-RING (8.8X1.9) This part replaces 91308-PH9-000.

91302-GE0-000

$3.23

24

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

24

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

24

BOLT, HEX. (6X12)

92101-06012-0A

$1.49
