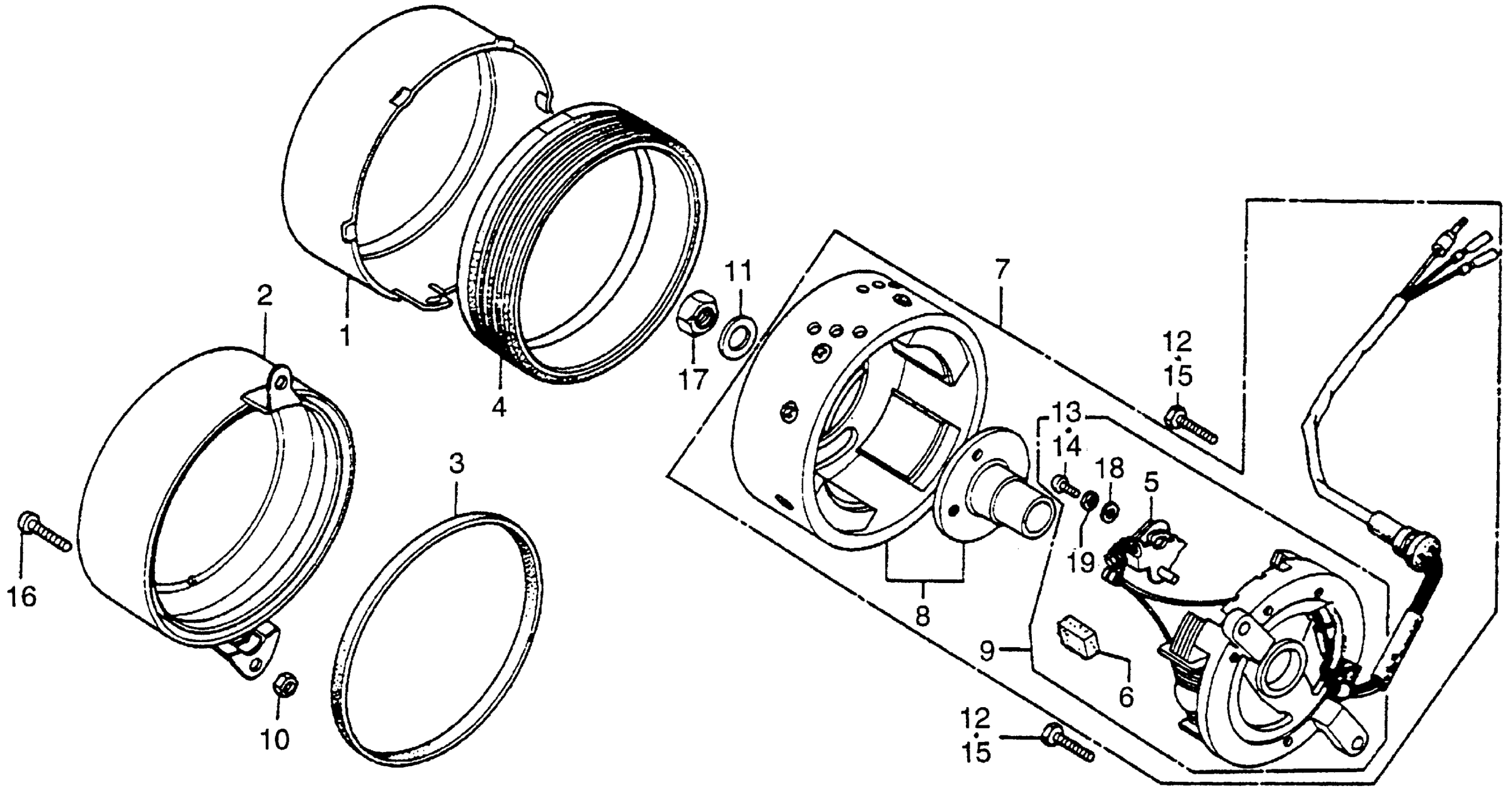

Honda NC50A (77) EXPRESS, JPN, VIN# NC50-1139281 TO NC50-1301910 ALTERNATOR Diagram

COVER, ALTERNATOR (NOT AVAILABLE) | Use from Engine SN 1207006

11431-147-010

Unavailable

SEAL, ALTERNATOR COVER (NOT AVAILABLE) | Use from Engine SN 1234671

11451-147-010

Unavailable

POINTS (HITACHI)

30202-041-015

$29.26

POINTS (DENSO)

30202-131-004

Unavailable

POINTS (HITACHI) This part replaces 30202-147-008.

30202-041-015

$29.26

FELT, OIL (NOT AVAILABLE)

30205-147-000

Unavailable

ALTERNATOR ASSY. (DENSO) (NOT AVAILABLE)

31100-147-305

Unavailable

ALTERNATOR ASSY. (DENSO) (NOT AVAILABLE) | Use up to Engine SN 1270380 This part replaces 31100-147-671.

31100-147-305

Unavailable

ALTERNATOR ASSY. (DENSO) (NOT AVAILABLE) This part replaces 31100-147-673.

31100-147-305

Unavailable

FLYWHEEL (DENSO) (NOT AVAILABLE)

31121-147-305

Unavailable

FLYWHEEL (DENSO) (NOT AVAILABLE) | Use up to Engine SN 1270380 This part replaces 31121-147-671.

31121-147-305

Unavailable

FLYWHEEL (DENSO) (NOT AVAILABLE) This part replaces 31121-147-673.

31121-147-305

Unavailable

STATOR (DENSO) (NOT AVAILABLE)

31141-147-305

Unavailable

STATOR (DENSO) (NOT AVAILABLE) | Use up to Engine SN 1270380 This part replaces 31141-147-671.

31141-147-305

Unavailable

STATOR (DENSO) (NOT AVAILABLE) This part replaces 31141-147-673.

31141-147-305

Unavailable

WASHER, MAGNET FIXING

90426-035-000

$2.57

BOLT, HEX. (6X20) | Use from Engine SN 1155112 This part replaces 92000-06020.

92101-06020-0A

$1.49

BOLT, HEX. (6X20) | Use from Engine SN 1155112

92101-06020-0A

$1.49

SCREW, PAN (4X10)

93500-04010-0A

$1.49

SCREW, PAN (4X12)

93500-04012-0A

$1.49

SCREW, PAN (6X20) | Use up to Engine SN 1155111 This part replaces 93500-06020.

93500-06020-0A

$1.49

SCREW, PAN (6X20) | Use up to Engine SN 1155111

93500-06020-0A

$1.49

NUT, HEX. (10MM)

94031-10000

$1.49

WASHER, PLAIN (4MM)

94101-04000

$1.49

WASHER, SPRING (4MM)

94111-04000

$1.49
