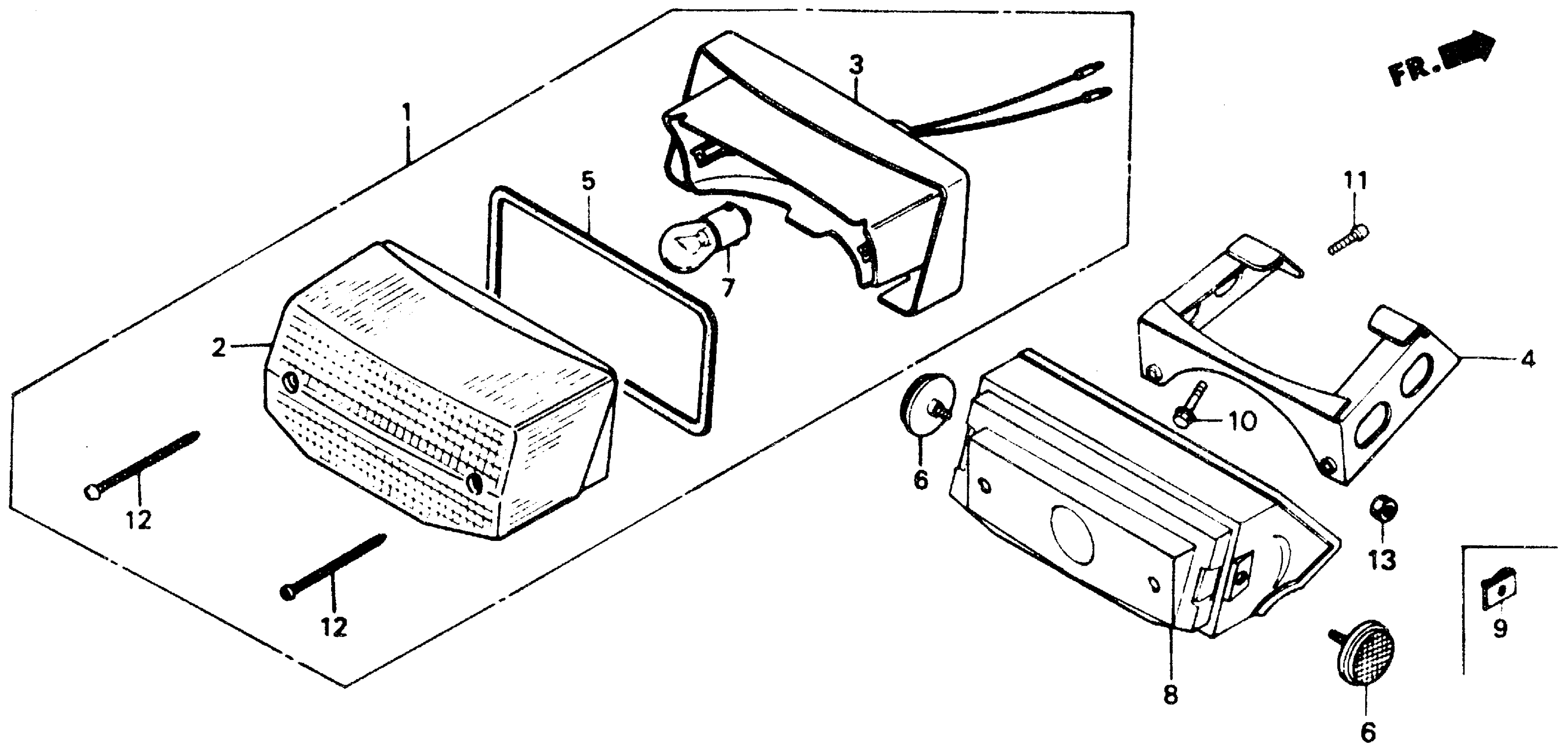

Honda NB50MA (85) AERO 50, JPN, VIN# JH2AF090-FS000010 TO JH2AF090-FS020329 TAILLIGHT Diagram

TAILLIGHT UNIT (STANLEY)

33701-GN2-671

Unavailable

LENS, TAILLIGHT

33702-GN2-671

Unavailable

BASE, TAILLIGHT

33703-GN2-671

Unavailable

BRACKET, TAILLIGHT

33705-GN2-670

Unavailable

GASKET, TAILLIGHT LENS

33709-GC8-611

Unavailable

REFLECTOR, RR. REFLEX This part replaces 33741-148-871.

33741-HB9-641

$13.66

REFLECTOR, RR. REFLEX

33741-HB9-641

$13.66

REFLECTOR, RR. REFLEX This part replaces 33741-148-872.

33741-HB9-641

$13.66

BULB (12V27/7W32/2CP) (2057)

34906-SA5-671

$2.94

COVER, TAILLIGHT BASE

80108-GN2-670

Unavailable

NUT, CLIP (6MM)

90305-GK8-000

$2.39

BOLT, CAP (6X12) | Use up to Frame SN FS010049 This part replaces 92500-06012-0A.

92501-06012-0A

$2.41

BOLT, CAP (6X12) | Use up to Frame SN FS010049

92501-06012-0A

$2.41

BOLT, CAP (6X16) | Use from Frame SN FS010050

90103-GK4-000

Unavailable

SCREW, PAN (5X12)

93500-05012-0A

$1.49

SCREW, TAPPING (4X30) This part replaces 93901-24700.

93901-24710

Unavailable

SCREW, TAPPING (4X30)

93901-24710

Unavailable
