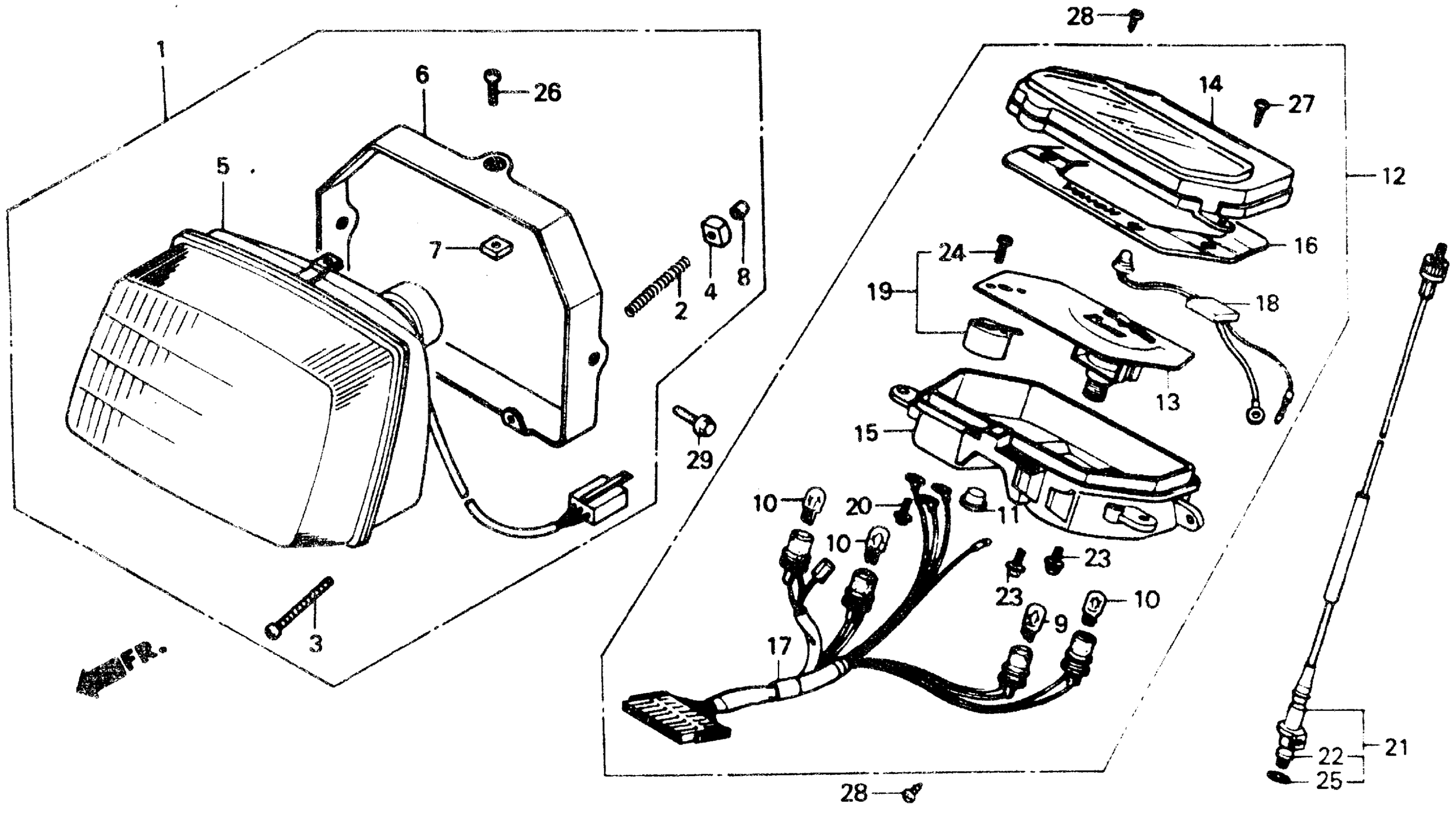

Honda NB50MA (85) AERO 50, JPN, VIN# JH2AF090-FS000010 TO JH2AF090-FS020329 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY. (NOT AVAILABLE)

33100-GK0-671

Unavailable

2

SPRING, BEAM ADJUSTING

33107-GE8-671

$3.33

3

SCREW, BEAM ADJUSTING (NOT AVAILABLE)

33114-GE8-671

Unavailable

4

NUT, BEAM ADJ.

33118-438-841

$2.23

5

HEADLIGHT UNIT

33120-GK0-671

Unavailable

6

RING, HEADLIGHT

33121-GK0-671

Unavailable

7

NUT, UNIT HOLDER

33128-GE8-671

$4.21

8

COVER, SCREW

33136-426-830

$1.89

9

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

9

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

9

BULB (12V3.4W2CP) (158) (NS)

37237-SA5-003

$4.17

9

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

10

BULB, WEDGE BASE (12V1.7W) (NIPPON SEIKI)

34908-MB9-871

$2.78

11

CAP A

37116-KG4-008

Unavailable

12

SPEEDOMETER ASSY. (NIPPON SEIKI)

37200-GN2-671

Unavailable

13

SPEEDOMETER

37210-GN2-671

Unavailable

14

LENS, METER

37211-GN2-008

Unavailable

15

CASE ASSY. (LOWER)

37212-GN2-671

Unavailable

16

PLATE, REFLECTING

37213-GN2-671

Unavailable

17

SOCKET

37223-GN2-671

Unavailable

18

INDICATOR, L.E.D.

37230-GN2-671

Unavailable

19

METER, FUEL

37300-GN2-671

Unavailable

20

SCREW-WASHER (3X22)

37305-KE5-008

$2.75

21

CABLE, SPEEDOMETER This part replaces 44830-GN2-000.

44830-GN2-030

Unavailable

21

CABLE, SPEEDOMETER This part replaces 44830-GN2-010.

44830-GN2-030

Unavailable

21

CABLE, SPEEDOMETER This part replaces 44830-GN2-020.

44830-GN2-030

Unavailable

21

CABLE, SPEEDOMETER

44830-GN2-030

Unavailable

22

CABLE (INNER)

44831-GN2-000

Unavailable

23

SCREW, FLANGE (4X8)

90101-GC8-008

Unavailable

24

SCREW, PAN (2.3X7)

90107-GC8-000

$2.92

25

O-RING (8.8X1.5)

91312-PH7-000

Unavailable

25

O-RING (8.5X1.5) This part replaces 91352-671-003.

91312-PH7-000

Unavailable

25

O-RING (8.5X1.5) This part replaces 91352-671-004.

91312-PH7-000

Unavailable

26

SCREW, PAN (5X8)

93500-05008-0A

$1.49

27

SCREW, TAPPING (4X12)

93903-24320

$1.49

28

SCREW, TAPPING (4X12)

93903-34320

$1.49

29

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

29

BOLT, FLANGE (6X10)

95701-06010-00

$1.49
