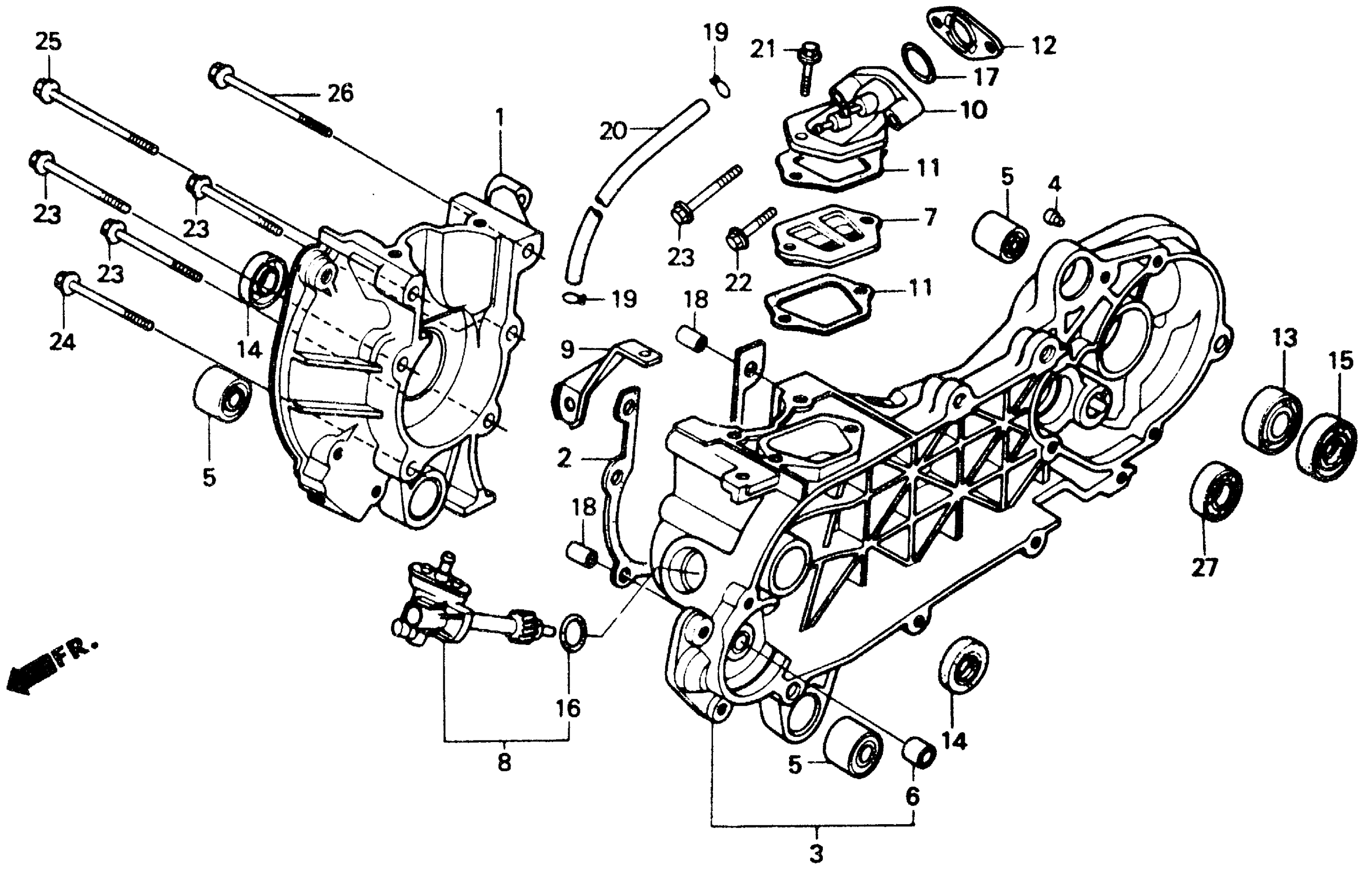

Honda NB50MA (85) AERO 50, JPN, VIN# JH2AF090-FS000010 TO JH2AF090-FS020329 CRANKCASE 85 Diagram

#

Description
Price

1

CRANKCASE, R.

11101-GN2-010

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-GN2-000.

11191-GN2-306

Unavailable

3

CRANKCASE, L.

11201-GN2-010

Unavailable

4

RUBBER, SPRING GUIDE

11202-GC7-300

Unavailable

5

BUSH, RR. SHOCK ABSORBER RUBBER (LOWER)

11203-GC7-300

$9.55

6

BUSH (8X12X8)

11205-GAH-003

$8.90

6

BUSH (8X12X8) This part replaces 11205-GF0-761.

11205-GAH-003

$8.90

7

VALVE, REED This part replaces 14100-GN2-000.

14100-GN2-010

Unavailable

7

VALVE, REED

14100-GN2-010

Unavailable

8

PUMP ASSY., OIL (NOT AVAILABLE)

15100-GN2-013

Unavailable

9

PLATE, OIL PUMP SET This part replaces 15111-GN2-000.

15110-GN2-305

Unavailable

10

PIPE, INLET

17100-GN2-000

Unavailable

11

GASKET, IN PIPE This part replaces 17111-GN2-000.

17111-GN2-010

Unavailable

11

GASKET, IN PIPE

17111-GN2-010

Unavailable

11

GASKET, IN PIPE This part replaces 17111-GN2-306.

17111-GN2-010

Unavailable

12

INSULATOR, CARBURETOR This part replaces 17121-GF0-306.

17121-GY1-860

Unavailable

12

INSULATOR, CARBURETOR This part replaces 17121-GF0-760.

17121-GY1-860

Unavailable

12

INSULATOR, CARBURETOR

17121-GY1-860

Unavailable

13

BEARING, RADIAL BALL (6203) (NTN CORP.) This part replaces 91028-GA7-003.

42630-GK4-003

$14.98

13

BEARING, RADIAL BALL (6203) (NTN CORP.) This part replaces 91028-GA7-004.

42630-GK4-003

$14.98

14

OIL SEAL (15.6X23.5X7)

91201-GK8-003

$6.35

15

OIL SEAL (24X40X7)

91254-GE8-005

$8.30

16

O-RING (18.3X2.3) (ARAI) This part replaces 91301-166-000.

91301-147-023

$2.00

17

O-RING (20.6X1.9)

91304-GB0-910

$3.52

18

PIN, DOWEL (8X20)

94301-08200

$2.04

19

CLIP, TUBE (B6.5)

95002-02650

$1.35

20

BULK HOSE, VINYL (2.9X6.8X1000) (2.9X6.8X150)

95003-01001-60M

Unavailable

21

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

Unavailable

21

BOLT, FLANGE (6X28)

96001-06028-00

Unavailable

22

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.28

22

BOLT, FLANGE (6X32)

96001-06032-00

$1.28

23

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$1.97

23

BOLT, FLANGE (6X40)

96001-06040-00

$1.97

24

BOLT, FLANGE (6X45) This part replaces 96000-06045-00.

96001-06045-00

$1.78

24

BOLT, FLANGE (6X45)

96001-06045-00

$1.78

25

BOLT, FLANGE (6X60) This part replaces 96000-06060-00.

96001-06060-00

$1.97

25

BOLT, FLANGE (6X60)

96001-06060-00

$1.97

26

BOLT, FLANGE (6X65) This part replaces 96000-06065-00.

96001-06065-00

$2.30

26

BOLT, FLANGE (6X65)

96001-06065-00

$2.30

27

BEARING, RADIAL BALL (6201)

96100-62013-00

$8.39
