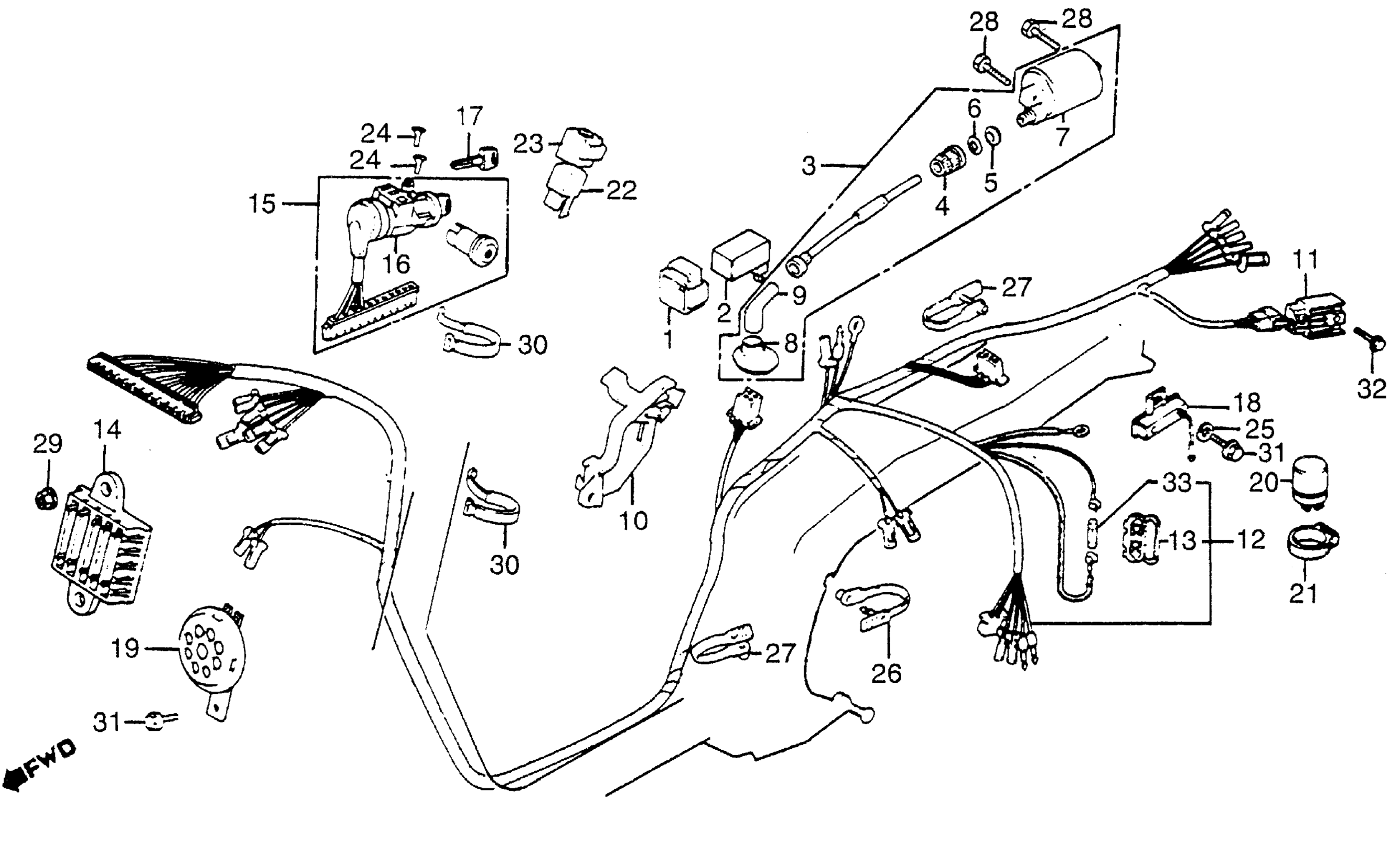

Honda NB50MA (84) AERO 50, JPN, VIN# JH2AB070-EK100001 TO JH2AB070-EK109605 WIRE HARNESS Diagram

#

Description
Price

1

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-GE8-000.

30401-GB4-770

$5.34

2

MODULE, IGNITION CONTROL (CDI)

30410-GE8-008

Unavailable

4

CAP, SCREW

30501-428-003

Unavailable

5

SEAL, RUBBER

30502-428-003

Unavailable

6

WASHER, CAP

30503-428-003

Unavailable

7

COIL, IGNITION

30510-167-003

Unavailable

8

SEAL, COIL WIRE This part replaces 30605-GE8-000.

30605-GE8-010

Unavailable

8

SEAL, COIL WIRE

30605-GE8-010

Unavailable

9

CAP SET, NOISE SUPPRESSOR This part replaces 30600-GN0-305.

30600-GN0-315

Unavailable

9

CAP SET, NOISE SUPPRESSOR

30600-GN0-315

Unavailable

9

CAP SET, NOISE SUPPRESSOR This part replaces 30700-GA7-601.

30600-GN0-315

Unavailable

9

CAP SET, NOISE SUPPRESSOR This part replaces 30700-GA7-602.

30600-GN0-315

Unavailable

10

PLATE, ELECTRIC SETTING

31515-GA7-010

Unavailable

11

RECTIFIER ASSY., REGULATOR

31600-GC1-701

$142.19

12

WIRE HARNESS (NOT AVAILABLE)

32100-GE8-770

Unavailable

13

CASE, FUSE (7A)

32120-155-000

Unavailable

14

MULTI-CONNECTOR, MALE (15X5) This part replaces 32150-GE8-003.

32150-GE8-601

Unavailable

14

MULTI-CONNECTOR, MALE (15X5)

32150-GE8-601

Unavailable

15

LOCK SET (NOT AVAILABLE) | Use up to Frame SN EK101100

35010-GE8-000

Unavailable

15

LOCK SET (NOT AVAILABLE) | Use from Frame SN EK101101

35010-GE8-710

Unavailable

16

SWITCH ASSY., COMBINATION & LOCK (NOT AVAILABLE)

35100-GE8-007

Unavailable

17

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-MM8-811.

35121-MR1-770

$8.74

17

KEY, BLANK (TYPE1) | (Optional).

35121-MR1-770

$8.74

17

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-402-811.

35121-MR1-770

$8.74

17

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MM8-811.

35122-MR1-770

$8.74

17

KEY, BLANK (TYPE2) | (Optional).

35122-MR1-770

$8.74

17

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-402-811.

35122-MR1-770

$8.74

18

RESISTOR

35400-GB2-701

Unavailable

18

RESISTOR This part replaces 35400-GE8-000.

35400-GB2-701

Unavailable

19

HORN This part replaces 38110-GA7-701.

38110-GA7-702

Unavailable

19

HORN

38110-GA7-702

Unavailable

20

RELAY, TURN SIGNAL (DENSO)

38301-MG2-008

Unavailable

21

SUSPENSION, TURN SIGNAL RELAY (DENSO)

38306-GE8-008

$4.32

22

RELAY, STARTER

38501-GF4-701

Unavailable

22

RELAY ASSY., STARTER

38500-GC7-612

$45.68

22

RELAY ASSY., STARTER This part replaces 38501-GE8-008.

38500-GC7-612

$45.68

22

RELAY, STARTER This part replaces 38501-GJ2-004.

38501-GF4-701

Unavailable

22

RELAY ASSY., STARTER This part replaces 38501-187-701.

38500-GC7-612

$45.68

22

RELAY ASSY., STARTER This part replaces 38501-187-702.

38500-GC7-612

$45.68

23

SUSPENSION, STARTER RELAY (OMRON)

38506-GF4-701

Unavailable

23

SUSPENSION, STARTER RELAY (NOT AVAILABLE)

38506-GE8-008

Unavailable

23

SUSPENSION, STARTER RELAY (MITSUBA)

38506-GJ2-004

Unavailable

24

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.64

25

WASHER (6MM) (NOT AVAILABLE)

90443-115-000

Unavailable

26

STRAP C, CABLE

90668-GA7-003

Unavailable

27

STRAP A, CABLE (95MM) (WHITE)

90668-671-003

Unavailable

28

BOLT, HEX. (5X16) This part replaces 92000-05016-0A.

92101-05016-0A

$0.68

28

BOLT, HEX. (5X16)

92101-05016-0A

$0.68

29

NUT, FLANGE (6MM)

94050-06000

$0.59

30

BAND A2, CABLE

95014-61200

Unavailable

31

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.81

31

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

32

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.61

32

BOLT, FLANGE (6X20)

95701-06020-00

$1.61

33

FUSE A (7A)

98200-10700

$0.84
