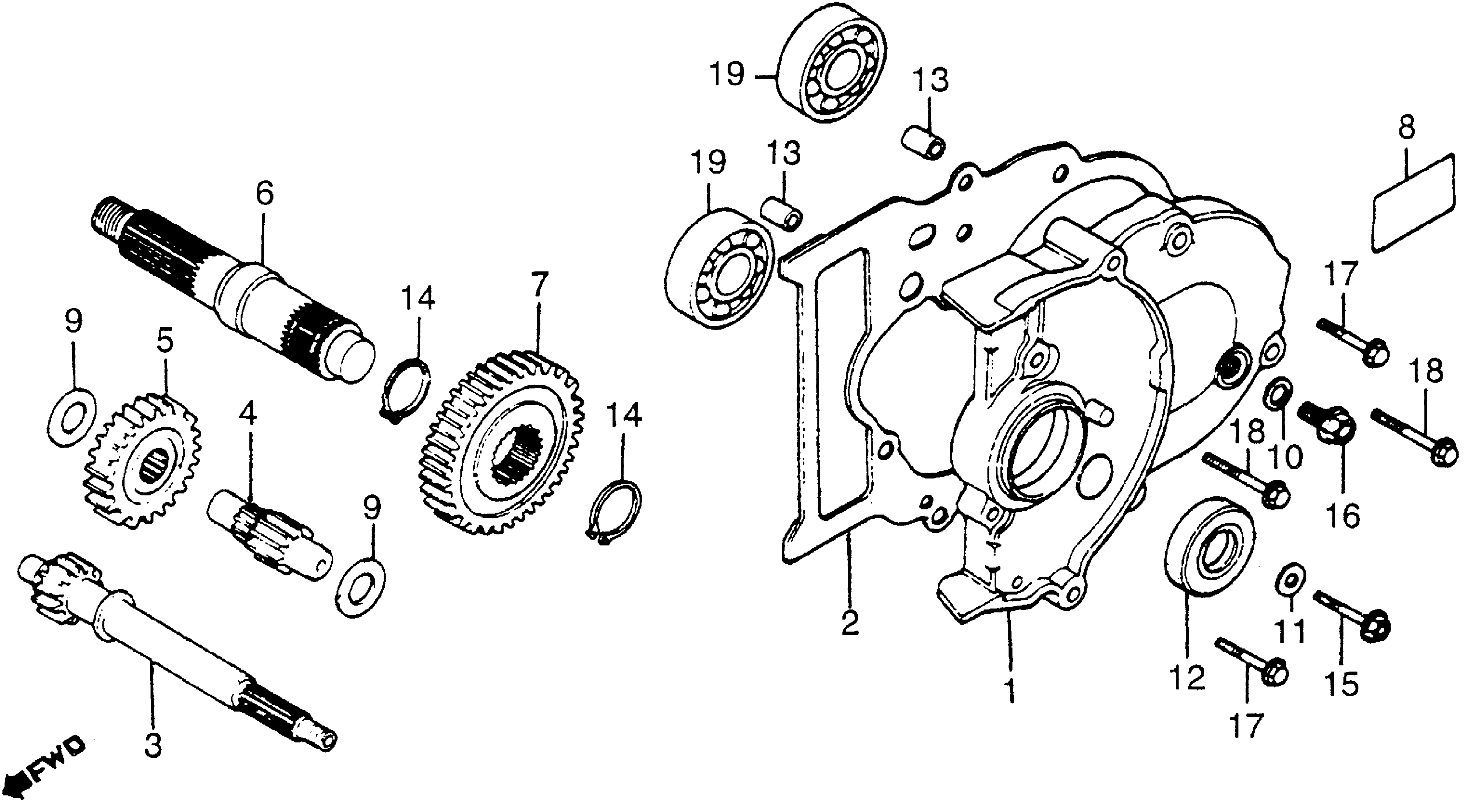

Honda NB50MA (84) AERO 50, JPN, VIN# JH2AB070-EK100001 TO JH2AB070-EK109605 TRANSMISSION Diagram

#

Description
Price

1

COVER, TRANSMISSION This part replaces 21301-GE8-000.

21301-GM0-000

Unavailable

1

COVER, TRANSMISSION This part replaces 21301-GE8-010.

21301-GM0-000

Unavailable

2

GASKET, TRANSMISSION COVER This part replaces 21395-GE8-000.

21395-GE8-306

Unavailable

2

GASKET, TRANSMISSION COVER

21395-GE8-306

Unavailable

3

DRIVESHAFT

23411-GE8-000

Unavailable

4

COUNTERSHAFT

23421-GC2-000

Unavailable

4

COUNTERSHAFT This part replaces 23421-GE8-000.

23421-GC2-000

Unavailable

5

GEAR, COUNTER

23422-GE8-000

Unavailable

6

SHAFT, FINAL

23431-GE8-000

Unavailable

7

GEAR, FINAL

23432-GE8-000

Unavailable

8

LABEL, OIL CAPACITY

87541-GC1-300

Unavailable

9

WASHER, THRUST (14MM)

90454-350-000

$3.74

10

WASHER (10.2MM)

90481-001-020

$2.92

11

WASHER A (6.5MM)

90481-250-000

$1.93

12

OIL SEAL (15X30X5) (NOT AVAILABLE)

91204-GE8-005

Unavailable

13

PIN A, DOWEL (10X14)

94301-10140

$2.28

14

CIRCLIP (OUTER) (22MM)

94510-22000

$1.49

15

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

15

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

16

BOLT, FLANGE (10X12) (SOURCE: VINTAGE PARTS INC.) This part replaces 95700-10012-00.

95701-10012-00

$3.33

16

BOLT, FLANGE (10X12)

95701-10012-00

$3.33

17

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

17

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

18

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

18

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

19

BEARING, RADIAL BALL (6202)

96100-62023-00

Unavailable
