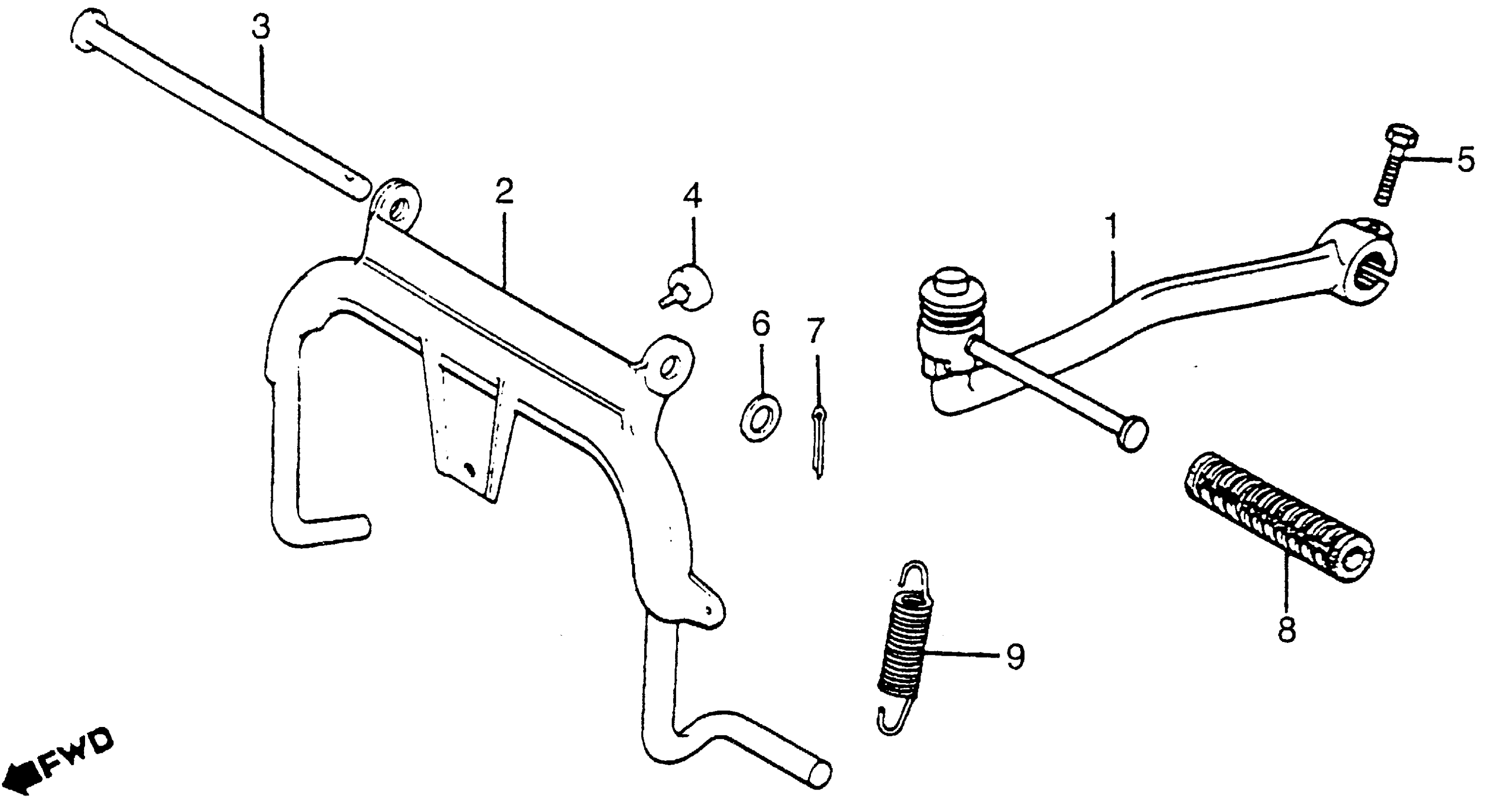

Honda NB50MA (84) AERO 50, JPN, VIN# JH2AB070-EK100001 TO JH2AB070-EK109605 STAND + KICK STARTER ARM Diagram

ARM ASSY., KICK STARTER

28300-GE8-000

Unavailable

STAND, MAIN (NOT AVAILABLE)

50500-GE8-000

Unavailable

SHAFT, MAIN STAND

50503-GA7-000

Unavailable

RUBBER, STAND STOPPER

50505-GA7-730

$2.13

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

WASHER, PLAIN (10MM)

94101-10000

$1.49

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

PIN, COTTER (2.0X22)

94201-20220

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

PIN, COTTER (2.0X35)

94201-20350

$1.49

PIN, COTTER (2.0X22)

94201-29220

$1.49

RUBBER A, KICK STARTER

95011-51000

$3.69

SPRING D, MAIN STAND

95014-71402

$2.48
