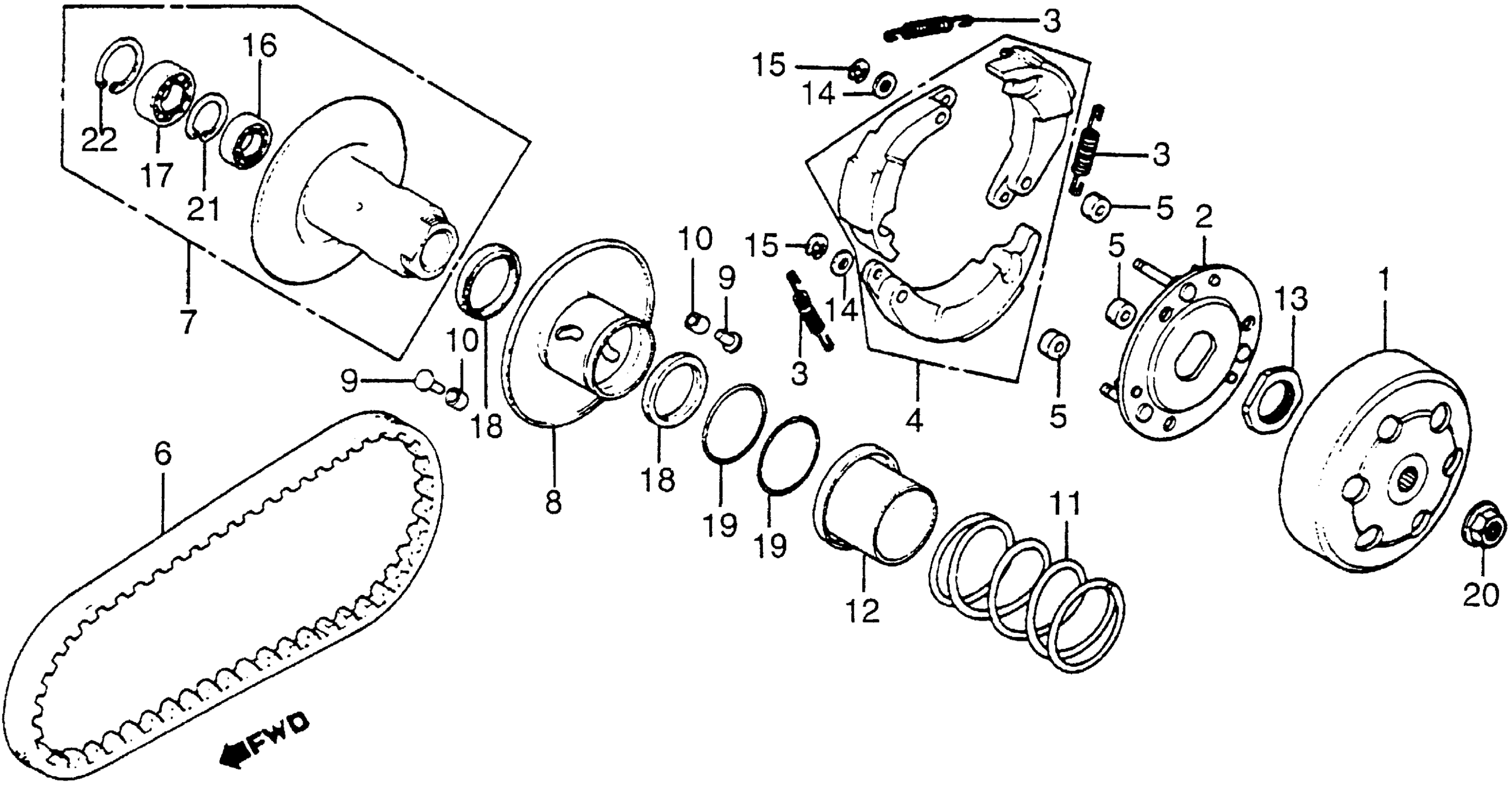

Honda NB50MA (84) AERO 50, JPN, VIN# JH2AB070-EK100001 TO JH2AB070-EK109605 DRIVEN FACE Diagram

#

Description
Price

1

CLUTCH (OUTER) (NOT AVAILABLE)

22100-GE8-000

Unavailable

2

PLATE, DRIVE

22350-GE8-000

Unavailable

3

SPRING, CLUTCH

22401-GE8-000

$3.86

4

WEIGHT SET, CLUTCH This part replaces 22535-GE8-000.

22535-GE8-010

Unavailable

5

RUBBER, CLUTCH DAMPER

22804-148-000

$2.97

6

BELT, DRIVE This part replaces 23100-GE8-004.

23100-GJ8-000

Unavailable

6

BELT, DRIVE

23100-GJ8-000

Unavailable

7

FACE SET, DRIVEN This part replaces 23200-GE8-000.

23205-GE8-305

Unavailable

7

FACE SET, DRIVEN

23205-GE8-305

Unavailable

8

FACE, MOVABLE DRIVEN

23220-GE8-000

Unavailable

9

PIN, GUIDE ROLLER

23225-187-003

Unavailable

10

ROLLER, GUIDE

23226-187-003

Unavailable

11

SPRING, DRIVEN FACE

23233-GE8-000

Unavailable

12

COLLAR, SEAL

23237-GA7-700

Unavailable

13

NUT, SPECIAL (28MM) This part replaces 90202-GA7-700.

90202-187-000

$7.32

13

NUT, SPECIAL (28MM)

90202-187-000

$7.32

14

WASHER, THRUST (8MM)

90442-GE8-000

Unavailable

15

CIRCLIP (7MM)

90605-166-720

$1.80

16

BEARING, RADIAL BALL (6901U) (TOYO)

91001-GA7-701

$24.49

17

BEARING, RADIAL BALL (6902U) (TOYO)

91002-GA7-701

$24.58

17

BEARING, RADIAL BALL (6902U) (NTN) This part replaces 91002-GA7-702.

91002-GA7-701

$24.58

18

SEAL, DRIVEN FACE (ARAI)

91211-187-003

$6.98

19

O-RING, PINION CAP (36.7X1.9)

91351-642-000

$4.22

20

NUT, FLANGE (10MM)

94050-10000

$1.59

21

CIRCLIP (INNER) (24MM)

94520-24000

$1.49

22

CIRCLIP (INNER) (28MM)

94520-28000

$1.49
