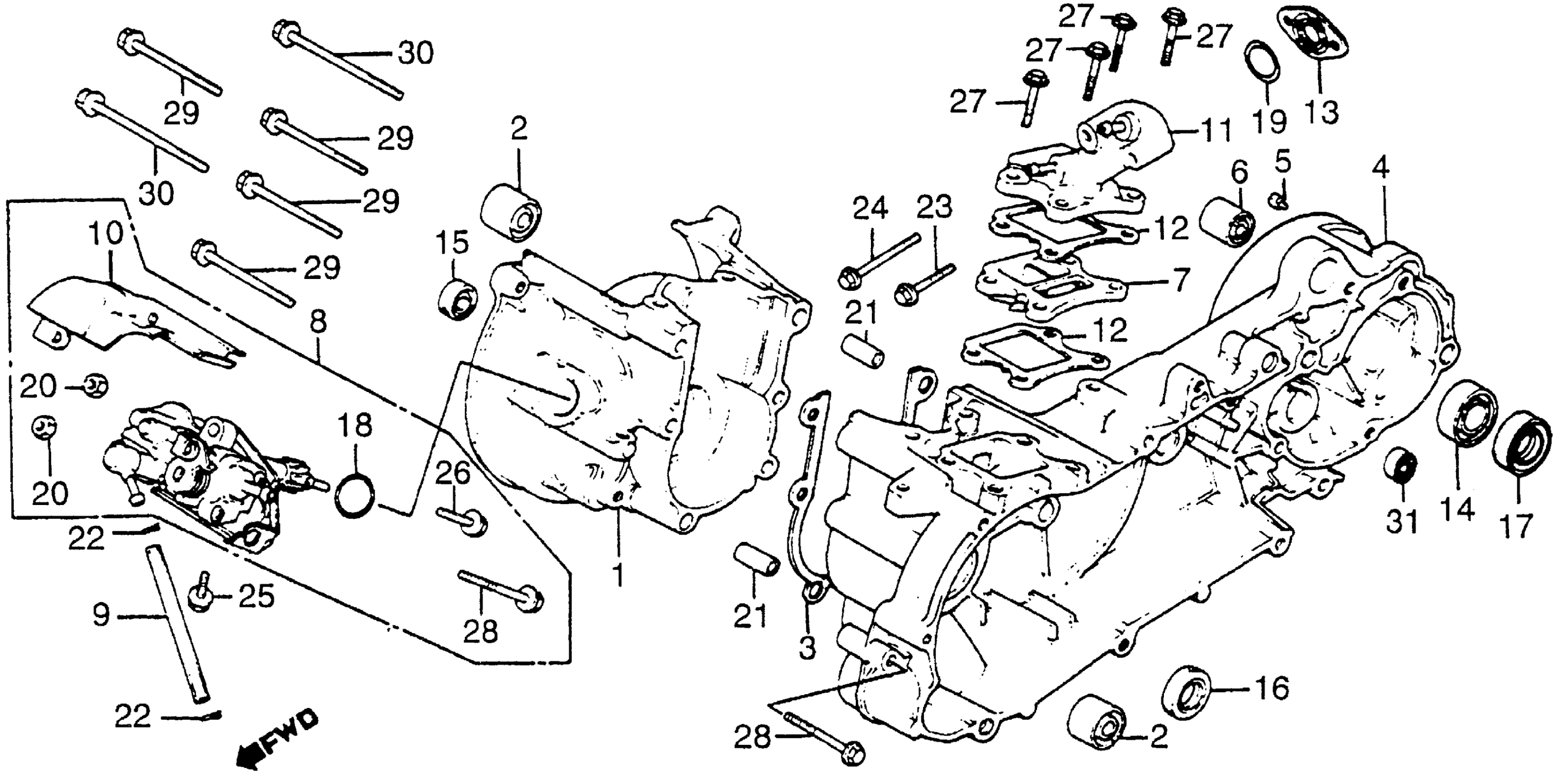

Honda NB50MA (84) AERO 50, JPN, VIN# JH2AB070-EK100001 TO JH2AB070-EK109605 CRANKCASE + OIL PUMP Diagram

#

Description
Price

1

CRANKCASE, R.

11101-GE8-000

Unavailable

2

BUSH, ENGINE HANGER RUBBER

11102-187-003

$14.82

3

GASKET, CRANKCASE This part replaces 11191-GA7-000.

11191-GY1-610

Unavailable

3

GASKET, CRANKCASE This part replaces 11191-GA7-306.

11191-GY1-610

Unavailable

3

GASKET, CRANKCASE

11191-GY1-610

Unavailable

4

CRANKCASE, L.

11201-GE8-000

Unavailable

5

RUBBER, SPRING GUIDE

11202-GC7-300

Unavailable

6

BUSH, RR. SHOCK ABSORBER RUBBER (LOWER)

11203-GC7-300

$10.71

7

VALVE, REED (NOT AVAILABLE)

14100-GE8-000

Unavailable

8

PUMP ASSY., OIL (NOT AVAILABLE) This part replaces 15100-GE8-000.

15100-GE8-010

Unavailable

8

PUMP ASSY., OIL (NOT AVAILABLE)

15100-GE8-010

Unavailable

9

TUBE, OIL PASSAGE

15525-GE8-010

Unavailable

10

INSULATOR, OIL PUMP

15532-GA7-010

Unavailable

11

PIPE, INLET This part replaces 17100-GE8-000.

17100-GE8-010

Unavailable

11

PIPE, INLET

17100-GE8-010

Unavailable

12

GASKET, IN. PIPE This part replaces 17111-GA7-000.

17111-GA7-306

Unavailable

12

GASKET, IN. PIPE

17111-GA7-306

Unavailable

13

INSULATOR, CARBURETOR

16211-GAM-000

Unavailable

13

INSULATOR, CARBURETOR This part replaces 17121-GE8-000.

16211-GAM-000

Unavailable

13

INSULATOR, CARBURETOR This part replaces 17121-GE8-306.

16211-GAM-000

Unavailable

14

BEARING, RADIAL BALL (6203) (NTN CORP.) This part replaces 91028-GA7-003.

42630-GK4-003

$16.69

14

BEARING, RADIAL BALL (6203) (NTN CORP.) This part replaces 91028-GA7-004.

42630-GK4-003

$16.69

15

OIL SEAL (15X25.5X7) This part replaces 91201-147-003.

91201-GW2-000

$3.86

16

OIL SEAL,20X31X7 This part replaces 91202-GA7-005.

91202-KBN-922

$5.10

16

OIL SEAL,20X31X7 This part replaces 91202-GC8-004.

91202-KBN-922

$5.10

17

OIL SEAL (24X40X7)

91254-GE8-005

$9.24

18

O-RING (18.3X2.3) (ARAI)

91301-147-023

$2.20

18

O-RING (18.3X2.3) (ARAI) This part replaces 91301-166-000.

91301-147-023

$2.20

19

O-RING (20.6X1.9)

91304-GB0-910

$3.77

20

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM)

94001-06200-0S

$1.49

21

PIN A, DOWEL (10X20)

94301-10200

$2.35

22

CLIP, TUBE (B6.5)

95002-02650

$1.49

23

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

23

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

24

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

24

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

25

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

25

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

26

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.80

26

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

27

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

27

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

28

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

28

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

29

BOLT, FLANGE (6X45) This part replaces 96000-06045-00.

96001-06045-00

$1.95

29

BOLT, FLANGE (6X45)

96001-06045-00

$1.95

30

BOLT, FLANGE (6X60) This part replaces 96000-06060-00.

96001-06060-00

$2.06

30

BOLT, FLANGE (6X60)

96001-06060-00

$2.06

31

BEARING, RADIAL BALL (6201)

96100-62013-00

$9.33
