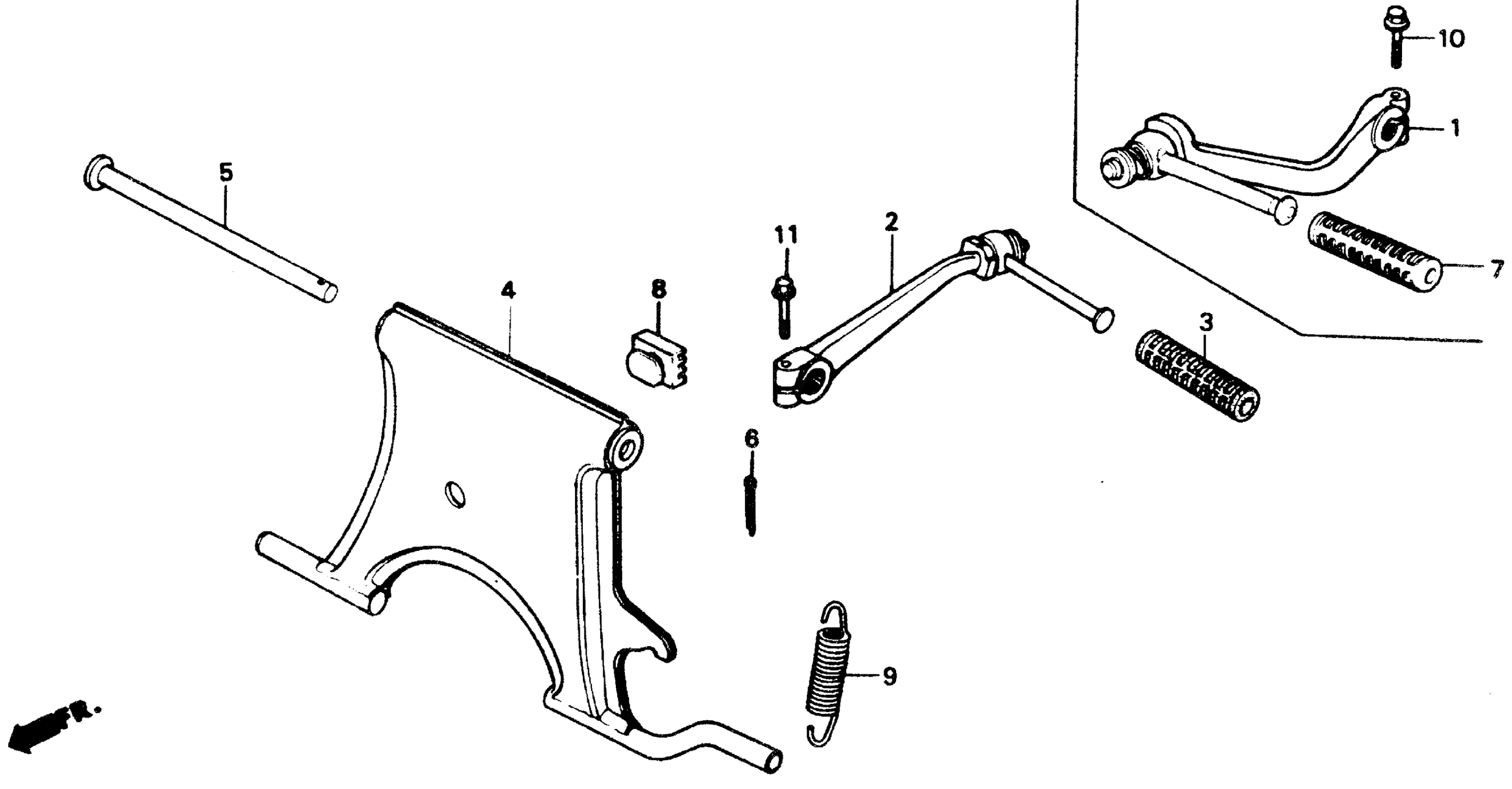

Honda NB50A (87) AERO 50, JPN, VIN# JH2AF090-HS200013 TO JH2AF090-HS212084 STAND Diagram

#

Description

Price

2

ARM, KICK STARTER This part replaces 28300-GN2-930.

28300-GR1-750

Unavailable

3

RUBBER, KICK STARTER

28311-GN2-930

Unavailable

4

STAND, MAIN

50500-GN2-620

Unavailable

5

SHAFT, MAIN STAND This part replaces 50503-GF0-750.

50503-GR1-000

Unavailable

5

SHAFT, MAIN STAND

50503-GR1-000

Unavailable

6

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$0.94

6

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$0.94

6

PIN, COTTER (2.5MM)

94201-25300

$0.94

8

RUBBER, STAND STOPPER

50505-GN2-000

Unavailable

9

SPRING D, MAIN STAND

95014-71402

$2.26

11

BOLT, FLANGE (6X22) This part replaces 95700-06022-07.

95701-06022-07

$0.86

11

BOLT, FLANGE (6X22)

95701-06022-07

$0.86
