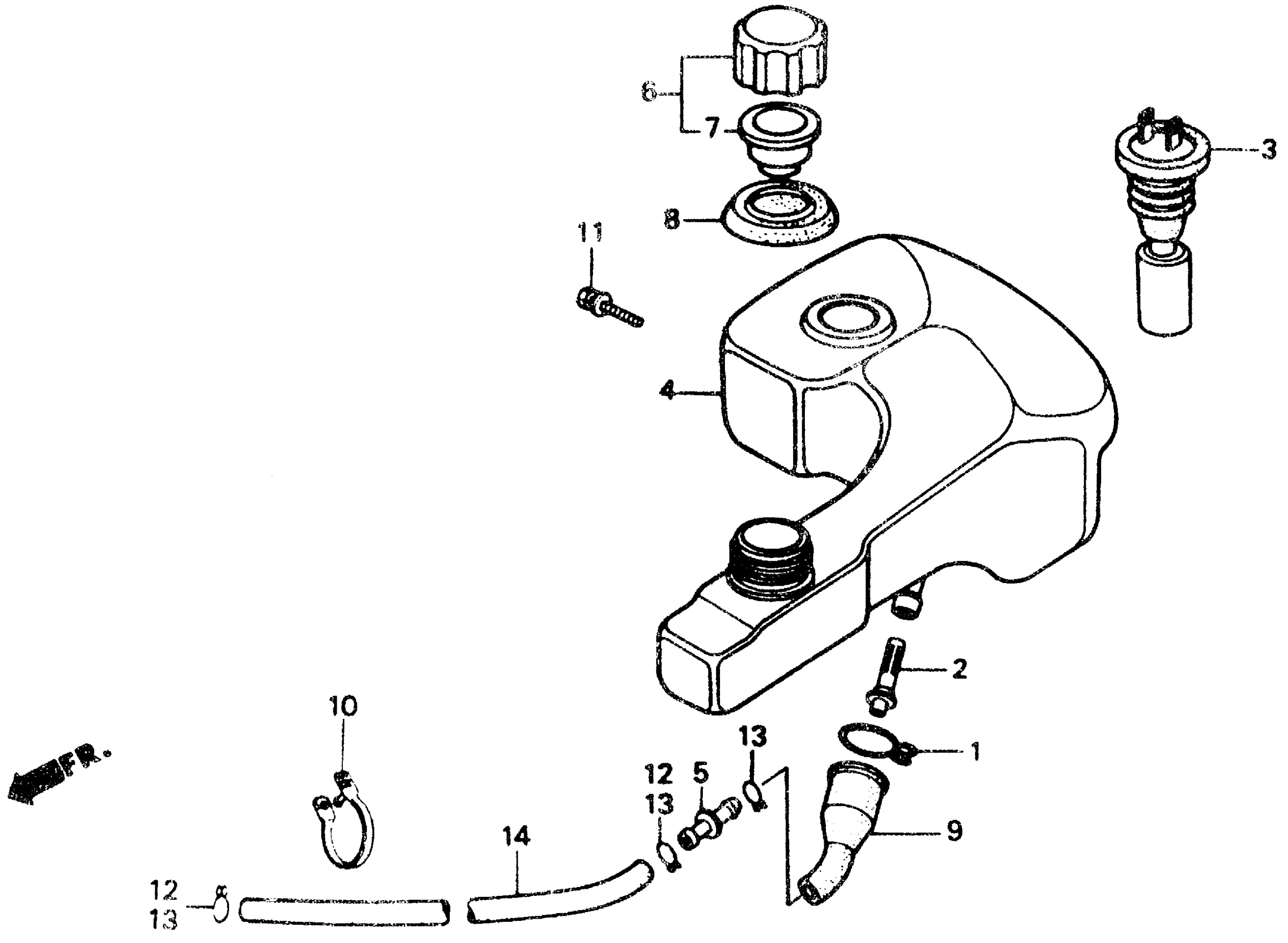

Honda NB50A (87) AERO 50, JPN, VIN# JH2AF090-HS200013 TO JH2AF090-HS212084 OIL TANK Diagram

CLIP, BREATHER TUBE

15772-551-000

$1.84

STRAINER, OIL

17502-187-000

$5.13

SWITCH ASSY., OIL LEVEL (MITSUBA) This part replaces 35410-GF0-003.

35410-GF0-014

$53.82

SWITCH ASSY., OIL LEVEL (MITSUBA) This part replaces 35410-GF0-004.

35410-GF0-014

$53.82

SWITCH ASSY., OIL LEVEL (MITSUBA)

35410-GF0-014

$53.82

TANK, OIL

55100-GN2-000

Unavailable

JOINT, OIL TUBE

55102-166-000

$4.15

CAP ASSY., OIL

55105-GK8-000

$20.05

GASKET, OIL CUP

55107-GK8-000

$7.49

RUBBER, OIL GUIDE

55121-GN2-600

Unavailable

JOINT, OIL STRAINER

55201-GC8-000

Unavailable

STRAP C, CABLE

90668-GA7-003

Unavailable

BOLT-WASHER (6X16)

93404-06016-00

$1.63

BOLT-WASHER (6X16) This part replaces 93494-06016-00.

93404-06016-00

$1.63

CLIP, TUBE (B10)

95002-02100

$1.75

CLIP, TUBE (C9)

95002-50000

$1.16

TUBE, OIL (5.3)

55123-GN2-000

Unavailable
