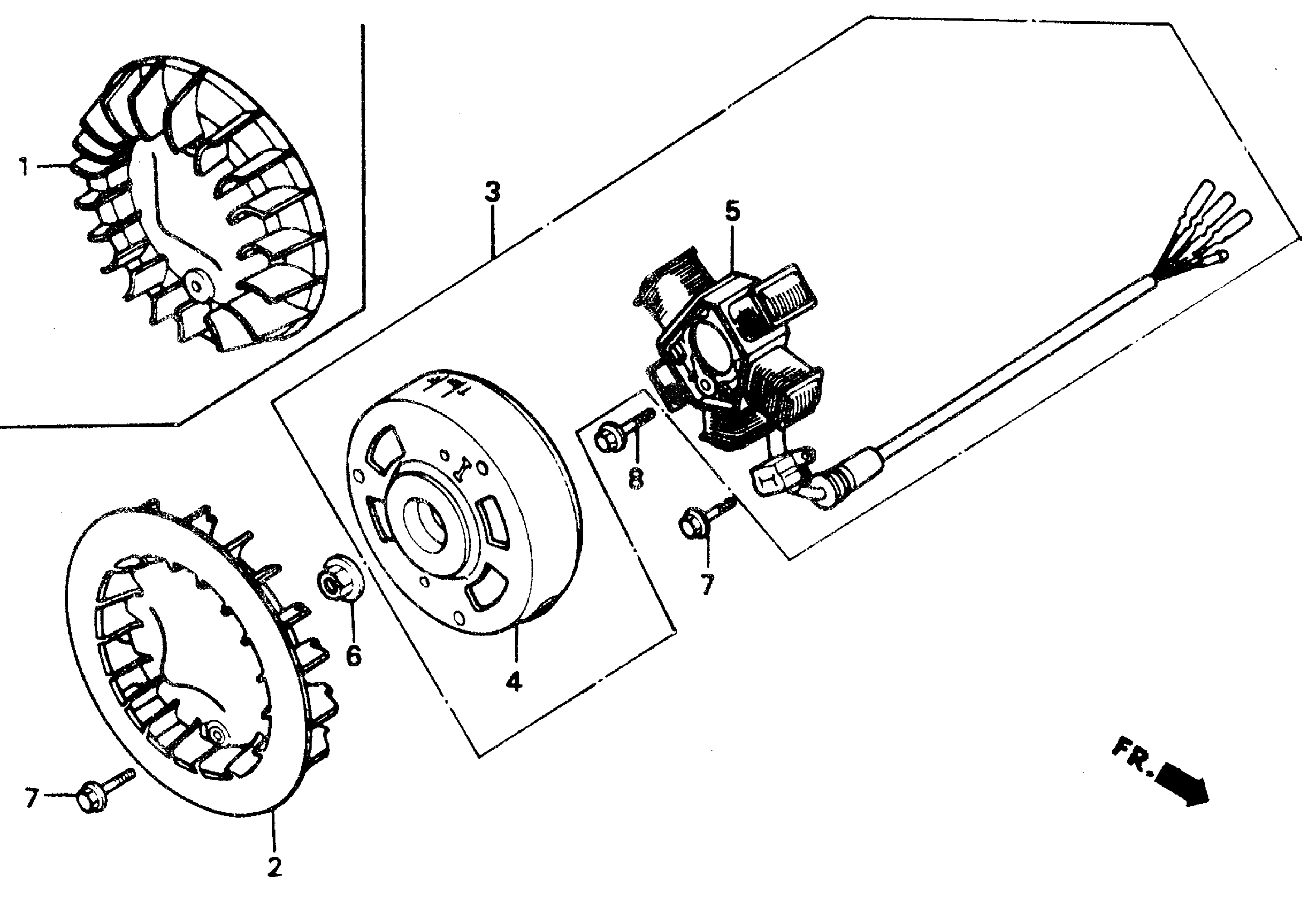

Honda NB50A (87) AERO 50, JPN, VIN# JH2AF090-HS200013 TO JH2AF090-HS212084 GENERATOR Diagram

FAN SET, COOLING

19510-GN2-305

Unavailable

FAN SET, COOLING This part replaces 19510-GN2-600.

19510-GN2-305

Unavailable

ALTERNATOR ASSY. This part replaces 31100-GN2-871.

31100-GN2-872

Unavailable

FLYWHEEL (C.D.I.) (MITSUBA) This part replaces 31110-GN2-871.

31110-GR1-018

Unavailable

FLYWHEEL (C.D.I.) (MITSUBA) This part replaces 31110-GR1-008.

31110-GR1-018

Unavailable

FLYWHEEL (C.D.I.) (MITSUBA)

31110-GR1-018

Unavailable

STATOR (C.D.I.)

31120-GN2-871

Unavailable

NUT, FLANGE (10MM)

94050-10000

$1.59

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.80

BOLT, FLANGE (6X18)

96001-06018-00

$1.80
