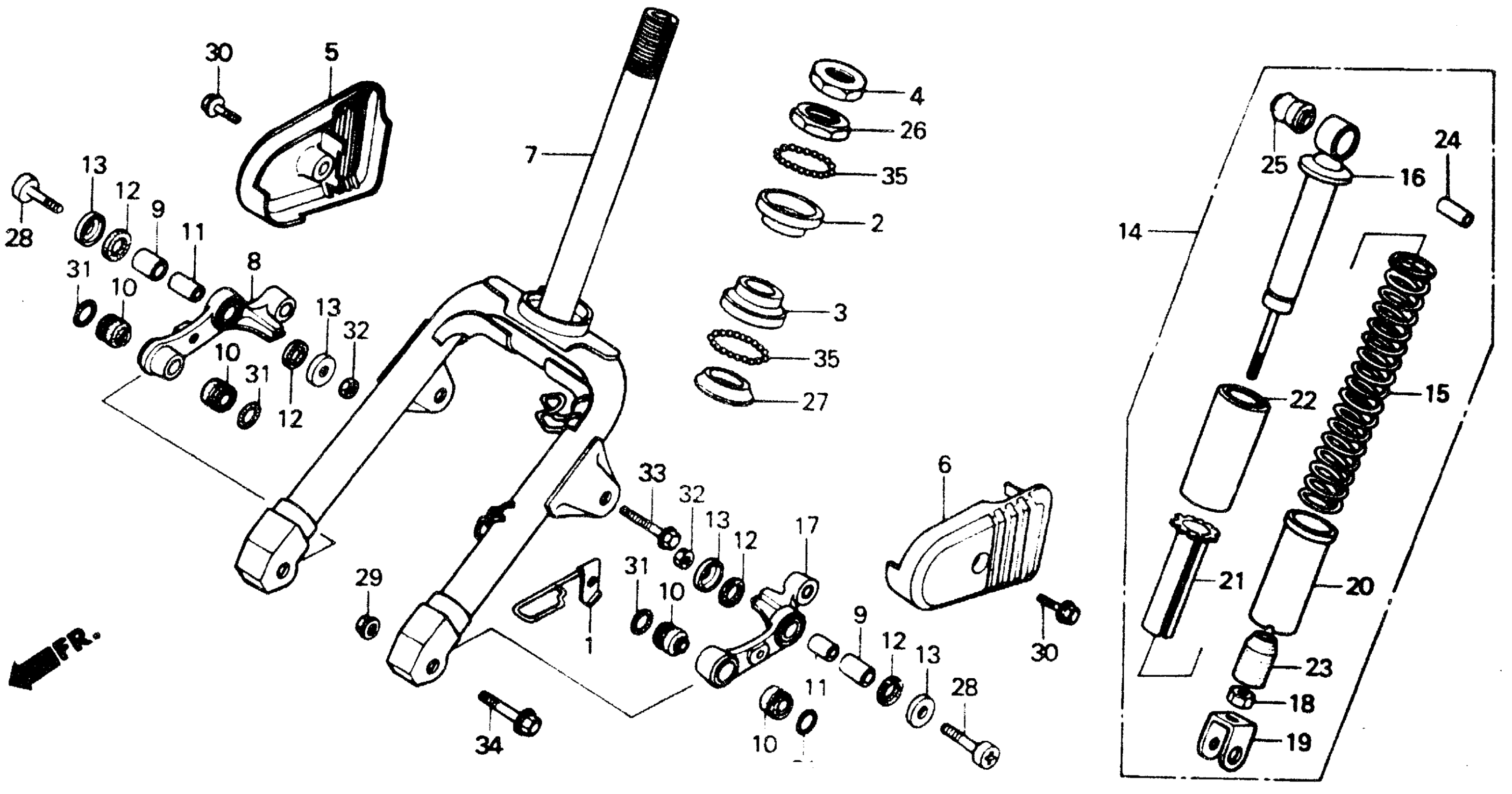

Honda NB50A (87) AERO 50, JPN, VIN# JH2AF090-HS200013 TO JH2AF090-HS212084 FRONT FORK Diagram

#

Description
Price

2

RACE, STEERING BALL (UPPER)

50301-GM0-000

$12.16

2

RACE, STEERING BALL (UPPER) (MITSUBOSHI)

50301-147-003

$12.16

3

RACE, STEERING BALL (LOWER)

50305-GE8-680

$10.48

4

NUT, STEERING STEM LOCK (MITSUBOSHI)

50306-147-003

Unavailable

5

COVER, R. PIVOT ARM *NH1* (BLACK) (NOT AVAILABLE)

51103-GN2-000ZA

$12.92

6

COVER, L. PIVOT ARM *NH1* (BLACK)

51104-GN2-000ZA

Unavailable

7

FORK, FR. *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)

51105-GN2-660ZA

Unavailable

8

ARM, R. FR. PIVOT

51311-GN2-000

Unavailable

9

BUSH, FR. FORK (LOWER)

51312-GN2-003

$7.60

10

BUSH, PIVOT ARM

51314-GR1-003

Unavailable

11

COLLAR, FR. FORK DISTANCE

51334-GN2-000

$6.56

12

DUST SEAL, FR. FORK (LOWER)

51335-001-000

$2.11

13

CAP, FR. FORK DUST SEAL (LOWER)

51336-001-000

$2.20

14

FORK ASSY., R. FR. *NH35M* (CLOUD SILVER METALLIC)

51400-GN2-671ZB

Unavailable

15

SPRING, FR. FORK

51401-GN2-671

Unavailable

16

DAMPER, FR.

51410-GN2-671

Unavailable

17

ARM, L. FR. PIVOT

51411-GN2-000

Unavailable

18

NUT, LOCK (8MM)

51413-GB4-003

Unavailable

19

JOINT, FR. FORK (LOWER)

51420-GN2-003

Unavailable

20

CASE, FR. FORK (LOWER) *NH35M* (CLOUD SILVER METALLIC)

51421-GN2-003ZB

Unavailable

21

GUIDE, FR. FORK SPRING

51458-GN2-003

Unavailable

22

CASE, FR. FORK (UPPER) *NH35M* (CLOUD SILVER METALLIC)

51460-GG2-003ZH

Unavailable

23

RUBBER, STOPPER

51475-GN2-671

Unavailable

24

COLLAR, FORK RUBBER BUSH

52486-074-000

$3.77

25

RUBBER A, JOINT (SHOWA)

52489-331-003

$2.03

26

RACE, STEERING TOP CONE

53211-GC8-003

$14.68

27

RACE, STEERING CONE (LOWER) (MITSUBOSHI)

53212-147-003

$8.74

28

BOLT, FR. FORK (LOWER)

90149-041-010

Unavailable

29

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

29

NUT, FLANGE (8MM)

90309-428-731

$3.35

30

BOLT, FLANGE (5X9)

90508-GC8-000

$4.35

31

O-RING (16.8X1.9)

91347-PY3-000

$2.68

31

O-RING (16.8X1.9) This part replaces 91351-GA7-000.

91347-PY3-000

$2.68

32

NUT, HEX. (8MM)

94002-08000-0S

$1.49

33

BOLT, FLANGE (8X35) (NOT AVAILABLE) | Use up to Frame SN HS205384

95800-08035-00

Unavailable

33

BOLT, FLANGE (8X37) | Use from Frame SN HS205385

90118-471-000

$3.19

34

BOLT, FLANGE (8X50) This part replaces 95800-08050-00.

95801-08050-00

$2.98

34

BOLT, FLANGE (8X50)

95801-08050-00

$2.98

35

BALL, STEEL (#5) (5/32)

96211-05000

$1.49
