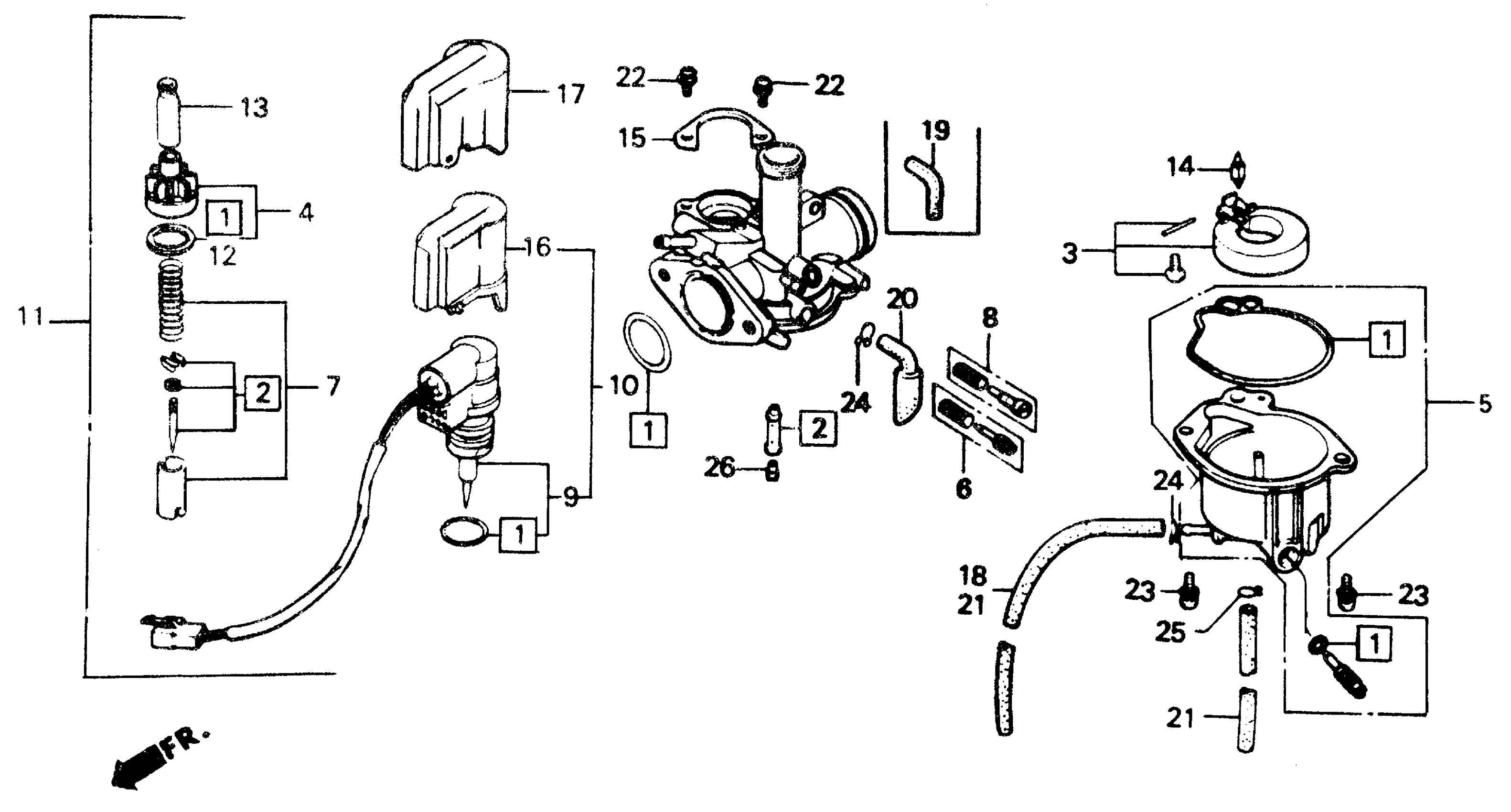

Honda NB50A (87) AERO 50, JPN, VIN# JH2AF090-HS200013 TO JH2AF090-HS212084 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-GJ2-004.

16010-GY3-515

$11.56

2

NEEDLE SET, JET

16012-GN2-761

Unavailable

3

FLOAT SET

16013-147-004

$44.62

5

CHAMBER SET, FLOAT

16015-GR2-003

Unavailable

6

SCREW SET

16016-197-004

Unavailable

7

VALVE SET, THROTTLE This part replaces 16022-GN2-771.

16022-GV1-901

Unavailable

7

VALVE SET, THROTTLE This part replaces 16022-GR1-651.

16022-GV1-901

Unavailable

7

VALVE SET, THROTTLE

16022-GV1-901

Unavailable

8

SCREW SET B

16028-GC8-004

$16.35

10

BYSTARTER SET, AUTO This part replaces 16046-GN2-871.

16046-GN2-872

Unavailable

11

CARBURETOR ASSY. This part replaces 16100-GN2-762.

16100-GN2-764

Unavailable

12

GASKET, TOP

16110-GN2-871

Unavailable

14

VALVE, FLOAT

16155-168-681

Unavailable

15

PLATE, SET

16186-GJ2-004

Unavailable

16

CAP, HOLDER This part replaces 16190-GJ2-004.

16190-GR1-003

Unavailable

17

CAP B, HOLDER

16191-GR1-003

Unavailable

18

TUBE, AIR VENT This part replaces 16199-GG2-701.

16199-428-405

$3.10

19

PIPE, AIR VENT This part replaces 16199-GN2-671.

16199-GR2-003

Unavailable

19

PIPE, AIR VENT

16199-GR2-003

Unavailable

21

PIPE, AIR VENT

16199-427-004

Unavailable

22

SCREW-WASHER (4X8)

93892-04008-08

$1.49

23

SCREW-WASHER (4X12)

93892-04012-08

$1.49

24

CLIP, TUBE (B7)

95002-02070

$1.80

25

CLIP, TUBE (B6.5)

95002-02650

$1.49

26

JET, MAIN (#82)

99101-187-0820

Unavailable
