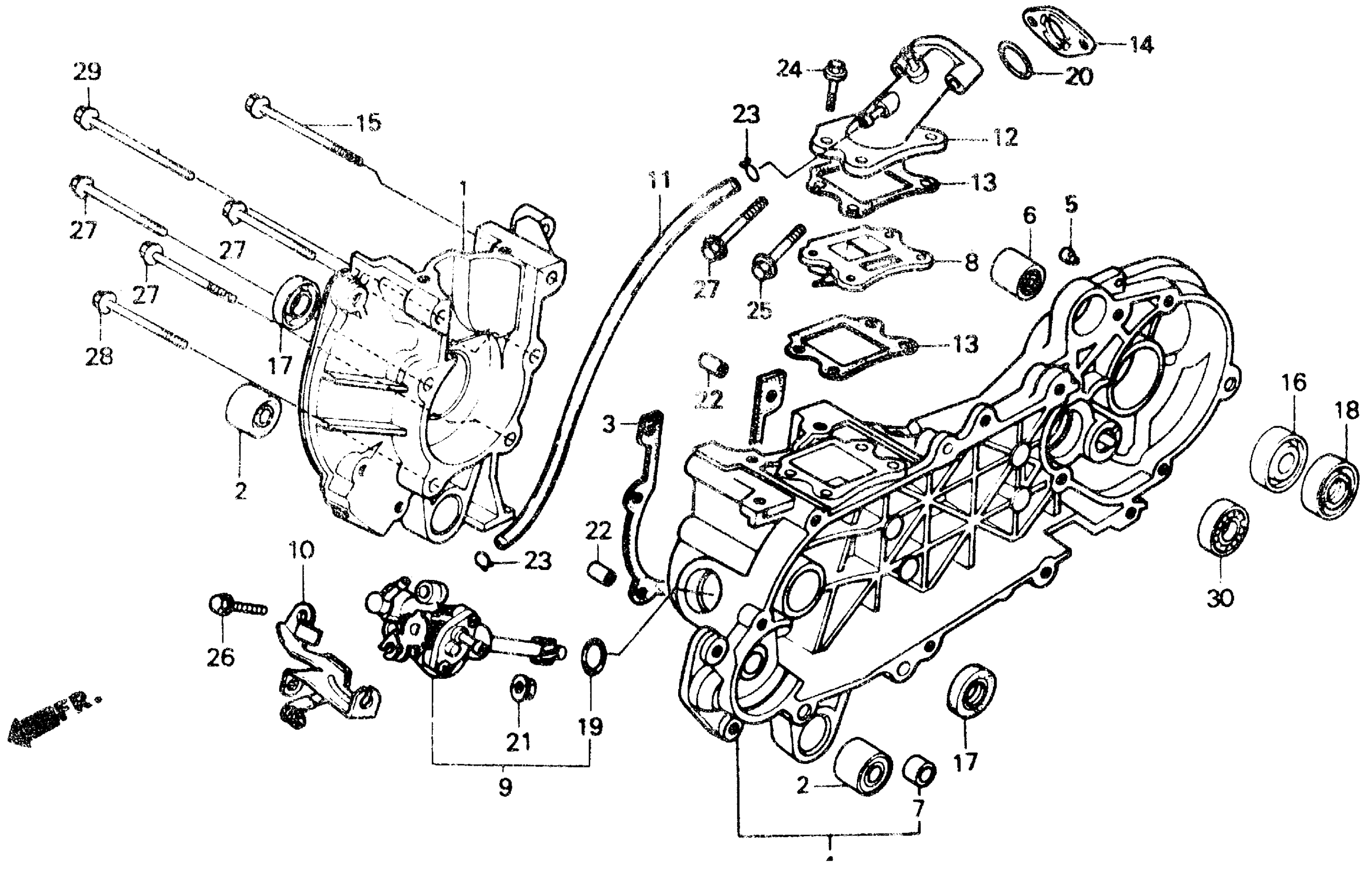

Honda NB50A (86) AERO 50, JPN, VIN# JH2AF090-GS100002 TO JH2AF090-GS127694 CRANKCASE 86,87 Diagram

#

Description
Price

1

CRANKCASE, R. This part replaces 11101-GR1-000.

11101-GR1-710

Unavailable

1

CRANKCASE, R.

11101-GR1-710

Unavailable

2

BUSH, ENGINE HANGER RUBBER

11102-GR1-003

Unavailable

3

GASKET, CRANKCASE This part replaces 11191-GN2-307.

11191-GY1-860

Unavailable

3

GASKET, CRANKCASE This part replaces 11191-GN2-600.

11191-GY1-860

Unavailable

3

GASKET, CRANKCASE

11191-GY1-860

Unavailable

4

CRANKCASE, L. | Use up to Engine SN GS122074 This part replaces 11201-GR1-010.

11201-GR1-030

Unavailable

4

CRANKCASE, L.

11201-GR1-030

Unavailable

5

RUBBER, SPRING GUIDE

11202-GC7-300

Unavailable

6

BUSH, RR. SHOCK ABSORBER RUBBER (LOWER)

11203-GC7-300

$10.71

7

BUSH (8X12X8)

11205-GAH-003

$9.77

7

BUSH (8X12X8) This part replaces 11205-GF0-761.

11205-GAH-003

$9.77

8

VALVE, REED This part replaces 14100-GAG-000.

14100-GAG-750

Unavailable

8

VALVE, REED

14100-GAG-750

Unavailable

8

VALVE, REED | Use up to Engine SN GS122074 This part replaces 14100-GM4-000.

14100-GAG-750

Unavailable

8

VALVE, REED This part replaces 14100-GM4-010.

14100-GAG-750

Unavailable

9

PUMP ASSY., OIL This part replaces 15100-GR1-005.

15100-GR1-015

Unavailable

9

PUMP ASSY., OIL

15100-GR1-015

Unavailable

10

PLATE

15110-GR1-000

Unavailable

11

TUBE, OIL PASSAGE

15525-GN2-770

Unavailable

12

PIPE, INLET | Use up to Engine SN GS124974 This part replaces 17100-GN2-770.

17100-GN2-771

Unavailable

12

PIPE, INLET

17100-GN2-771

Unavailable

13

GASKET, IN. PIPE | Use up to Engine SN GS122074 This part replaces 17111-GN2-870.

17111-GN2-307

Unavailable

13

GASKET, IN. PIPE | Use from Engine SN GS122075 This part replaces 17111-GN2-871.

17111-GN2-307

Unavailable

14

INSULATOR, CARBURETOR

16211-GAM-000

Unavailable

14

INSULATOR, CARBURETOR This part replaces 17121-GE8-000.

16211-GAM-000

Unavailable

14

INSULATOR, CARBURETOR This part replaces 17121-GE8-306.

16211-GAM-000

Unavailable

15

BOLT, FLANGE (6X75)

90052-ME9-000

Unavailable

16

BEARING, RADIAL BALL (6203) (NTN CORP.) This part replaces 91028-GA7-003.

42630-GK4-003

$16.69

16

BEARING, RADIAL BALL (6203) (NTN CORP.) This part replaces 91028-GA7-004.

42630-GK4-003

$16.69

17

OIL SEAL (15.6X23.5X7)

91201-GK8-003

$6.81

18

OIL SEAL (24X40X7)

91254-GE8-005

$9.24

19

O-RING (18.3X2.3) (ARAI) This part replaces 91301-166-000.

91301-147-023

$2.20

20

O-RING (20.6X1.9)

91304-GB0-910

$3.77

21

NUT, FLANGE (6MM)

94050-06000

$1.49

22

PIN, DOWEL (8X20)

94301-08200

$2.25

23

CLIP, TUBE (B6.5)

95002-02650

$1.49

24

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

24

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

25

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

25

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

26

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

26

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

27

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

27

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

28

BOLT, FLANGE (6X45) This part replaces 96000-06045-00.

96001-06045-00

$1.95

28

BOLT, FLANGE (6X45)

96001-06045-00

$1.95

29

BOLT, FLANGE (6X60) This part replaces 96000-06060-00.

96001-06060-00

$2.06

29

BOLT, FLANGE (6X60)

96001-06060-00

$2.06

30

BEARING, RADIAL BALL (6201)

96100-62013-00

$9.33
