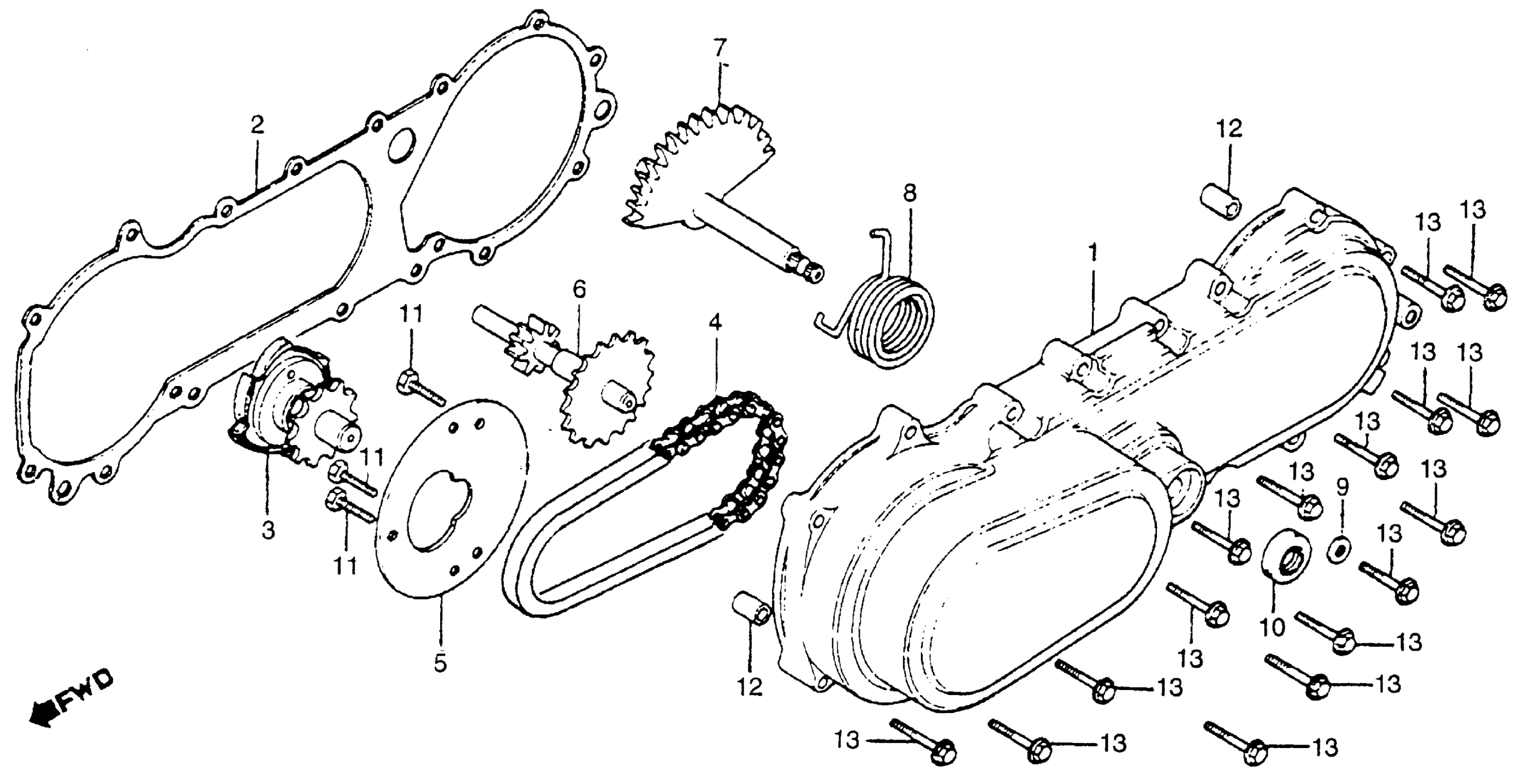

Honda NA50A (81) EXPRESS II, JPN, VIN# JH2AB011-BS200008 TO JH2AB011-BS212017 LEFT CRANKCASE COVER 81 Diagram

#

Description
Price

1

COVER, L. CRANKCASE This part replaces 11341-192-000ZB.

11340-192-405

Unavailable

2

GASKET, L. CRANKCASE COVER This part replaces 11395-GA6-670.

11395-GF8-003

Unavailable

2

GASKET, L. CRANKCASE COVER

11395-GF8-003

Unavailable

2

GASKET, L. CRANKCASE COVER This part replaces 11395-191-000.

11395-GF8-003

Unavailable

3

SPROCKET, STARTER DRIVEN (NOT AVAILABLE) | Use up to Engine SN BS211717 This part replaces 28230-191-000.

28230-191-010

Unavailable

3

SPROCKET, STARTER DRIVEN (NOT AVAILABLE)

28230-191-010

Unavailable

4

CHAIN, STARTER DRIVE (DID219H-42LE) (NOT AVAILABLE)

28230-192-003

Unavailable

5

HOLDER, STARTER SPROCKET | Use up to Engine SN BS211717 This part replaces 28240-192-010.

28240-192-020

Unavailable

5

HOLDER, STARTER SPROCKET | Use up to Engine SN BS211717

28240-192-020

Unavailable

5

HOLDER, STARTER SPROCKET

28240-192-020

Unavailable

6

SHAFT, KICK IDLE (NOT AVAILABLE) | Use up to Engine SN BS211717 This part replaces 28250-192-000.

28250-192-010

Unavailable

6

SHAFT, KICK IDLE (NOT AVAILABLE)

28250-192-010

Unavailable

7

SPINDLE, KICK STARTER (NOT AVAILABLE)

28270-192-000

Unavailable

8

SPRING, KICK STARTER (NOT AVAILABLE)

28281-192-000

Unavailable

9

WASHER, THRUST (11MM)

90425-300-000

$2.66

10

OIL SEAL (16X28X7) This part replaces 91204-MC7-003.

91204-259-003

$5.60

10

OIL SEAL (16X28X7)

91204-259-003

$5.60

10

OIL SEAL (16X28X7) This part replaces 91204-259-005.

91204-259-003

$5.60

10

OIL SEAL (16X28X7) This part replaces 91205-360-000.

91204-259-003

$5.60

11

BOLT, HEX. (6X18) This part replaces 92000-06018.

92101-06018-0A

$1.49

11

BOLT, HEX. (6X18) This part replaces 92000-06018-0A.

92101-06018-0A

$1.49

11

BOLT, HEX. (6X18)

92101-06018-0A

$1.49

11

BOLT, HEX. (6X18) This part replaces 92200-06018.

92101-06018-0A

$1.49

12

PIN A, DOWEL (10X14)

94301-10140

$2.28

13

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

13

BOLT, FLANGE (6X28) This part replaces 96018-06028-00.

96001-06028-00

$2.06
