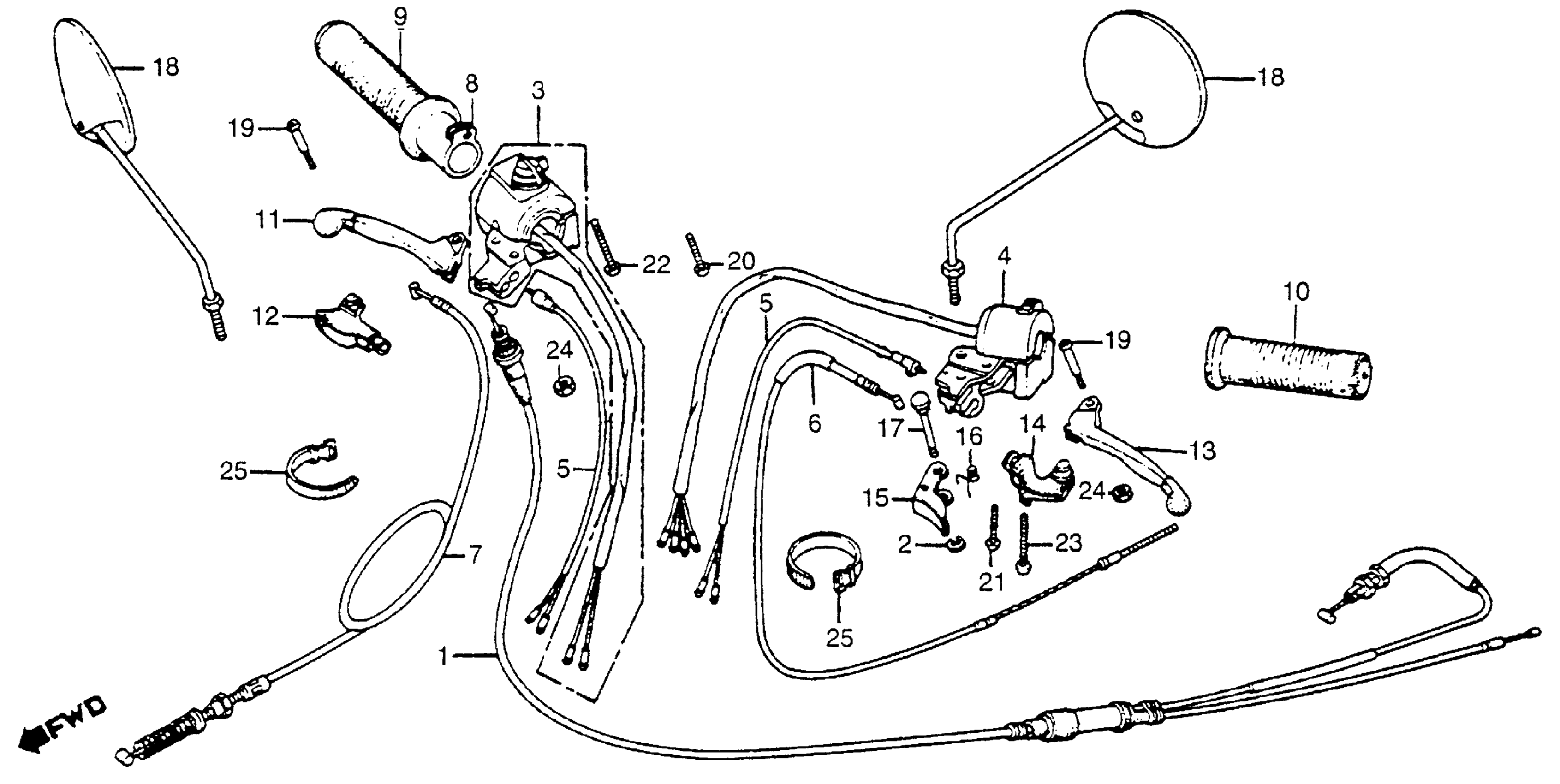

Honda NA50A (81) EXPRESS II, JPN, VIN# JH2AB011-BS200008 TO JH2AB011-BS212017 HANDLE LEVER + SWITCH + CABLE 81 Diagram

#

Description
Price

1

CABLE, THROTTLE (NOT AVAILABLE)

17910-193-671

Unavailable

2

E-CLIP (3MM)

30158-700-010

$2.92

3

SWITCH ASSY., STOP

35130-190-671

Unavailable

4

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE) This part replaces 35200-193-670.

35200-190-671

Unavailable

5

SWITCH ASSY., FR. STOP This part replaces 35340-187-700.

35340-GAN-620

$19.20

5

SWITCH ASSY., FR. STOP This part replaces 35340-401-682.

35340-GAN-620

$19.20

5

SWITCH ASSY., FR. STOP This part replaces 35340-437-661.

35340-GAN-620

$19.20

6

CABLE, RR. BRAKE

43450-193-670

Unavailable

7

CABLE, FR. BRAKE (NOT AVAILABLE)

45450-193-670

Unavailable

8

PIPE, THROTTLE GRIP This part replaces 53141-125-770.

53141-125-771

$15.29

8

PIPE, THROTTLE GRIP

53141-125-771

$15.29

9

GRIP, R. HANDLEBAR (NOT AVAILABLE)

53165-147-670

Unavailable

10

GRIP, L. HANDLEBAR (NOT AVAILABLE)

53166-187-000

Unavailable

11

LEVER, R. HANDLEBAR (COO) This part replaces 53175-147-671.

53175-GGA-305

$12.88

12

COVER, R. CONTROL LEVER

53176-170-700

$4.07

13

LEVER, L. HANDLEBAR (COO) This part replaces 53178-GR2-000.

53178-GGL-305

$14.62

13

LEVER, L. HANDLEBAR (COO) This part replaces 53178-187-000.

53178-GGL-305

$14.62

14

COVER, L. CONTROL LEVER

53179-170-700

$10.87

15

LEVER, PARKING

53181-187-000

$11.77

16

SPRING, LEVER RETURN

53182-155-010

$3.74

17

PIN, PARKING LEVER PIVOT

53183-155-000

$8.92

18

MIRROR COMP. This part replaces 88110-GB4-000.

88210-GN2-000

$29.10

18

MIRROR COMP. This part replaces 88110-GK8-405.

88210-GN2-000

$29.10

18

MIRROR COMP. This part replaces 88110-GN2-000.

88210-GN2-000

$29.10

18

MIRROR COMP. This part replaces 88110-190-670.

88210-GN2-000

$29.10

18

MIRROR COMP. This part replaces 88210-GBJ-505.

88210-GN2-000

$29.10

18

MIRROR COMP. This part replaces 88210-GK8-505.

88210-GN2-000

$29.10

19

SCREW, HANDLE LEVER PIVOT

90115-170-700

$3.74

20

SCREW, PAN (5X28)

93500-05028-0A

$1.49

21

SCREW, PAN (5X32)

93500-05032-0A

$1.49

22

SCREW, PAN (5X35)

93500-05035-0A

$1.49

23

SCREW, PAN (5X40)

93500-05040-0A

$1.49

24

NUT, HEX. (5MM)

94001-05000-0S

$2.74

25

BAND B1, CABLE

95014-62100

$1.64
