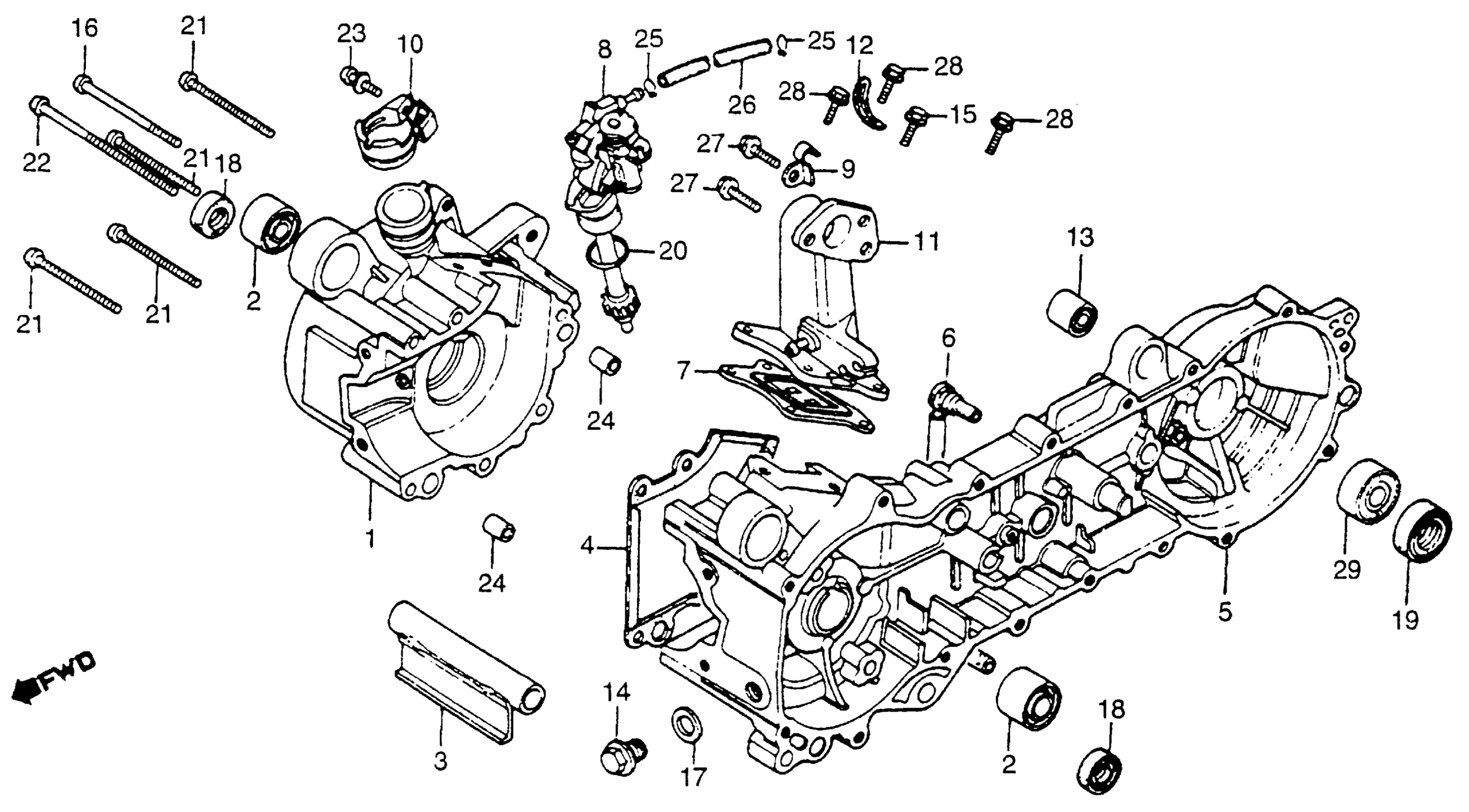

Honda NA50A (81) EXPRESS II, JPN, VIN# JH2AB011-BS200008 TO JH2AB011-BS212017 CRANKCASE + OIL PUMP + REED VALVE 81 Diagram

#

Description
Price

1

CRANKCASE, R.

11101-191-000

Unavailable

2

BUSH, ENGINE HANGER RUBBER (NOT AVAILABLE)

11102-147-000

Unavailable

3

COLLAR, DISTANCE (NOT AVAILABLE)

11103-191-000

Unavailable

4

GASKET, CRANKCASE This part replaces 11191-147-000.

11191-147-010

$7.00

4

GASKET, CRANKCASE

11191-147-010

$7.00

4

GASKET, CRANKCASE This part replaces 11191-147-306.

11191-147-010

$7.00

5

CRANKCASE, L. (NOT AVAILABLE)

11210-191-010

Unavailable

6

TUBE, BREATHER (NOT AVAILABLE)

11211-190-000

Unavailable

7

VALVE, REED

14100-190-005

Unavailable

8

PUMP ASSY., OIL (NOT AVAILABLE)

15100-190-671

Unavailable

9

CLAMP, CHECK VALVE (NOT AVAILABLE)

15526-147-711

Unavailable

10

BAND, OIL PUMP SETTING (NOT AVAILABLE)

15531-193-670

Unavailable

11

PIPE, INLET (NOT AVAILABLE)

17100-191-000

Unavailable

12

CLIP, WIRE (NOT AVAILABLE)

32112-191-000

Unavailable

13

BUSH, RR. SWINGARM RUBBER (LOWER) (NOT AVAILABLE)

52109-222-810

Unavailable

14

BOLT, SEALING (14MM)

90081-035-000

$4.24

15

BOLT, FLANGE (6X25) (NOT AVAILABLE)

90101-190-000

Unavailable

16

SCREW, PAN (6X60) (NOT AVAILABLE)

90105-190-000

Unavailable

17

WASHER, SEALING (14MM)

90441-035-000

$2.39

18

OIL SEAL (15X25.5X7) This part replaces 91201-147-003.

91201-GW2-000

$3.86

19

OIL SEAL (24X40X7)

91254-GE8-005

$9.24

19

OIL SEAL (24X40X7) This part replaces 91254-187-005.

91254-GE8-005

$9.24

20

O-RING (18.3X2.3) (ARAI) This part replaces 91301-GA6-000.

91301-147-023

$2.20

20

O-RING (18.3X2.3) (ARAI)

91301-147-023

$2.20

21

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

21

SCREW, PAN (6X45)

93500-06045-0A

$1.49

22

SCREW, PAN (6X80) This part replaces 93500-06080.

93500-06080-0A

$1.49

22

SCREW, PAN (6X80)

93500-06080-0A

$1.49

23

SCREW-WASHER (5X16)

93891-05016-08

$1.49

24

PIN A, DOWEL (10X20)

94301-10200

$2.35

25

CLIP, TUBE (C6)

95002-30000

Unavailable

26

BULK HOSE, VINYL (3X6X1000) (3X6X130)

95003-03001-60M

$2.84

27

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

27

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

28

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

28

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

29

BEARING, RADIAL BALL (6203UU)

96150-62030-10

$15.07
