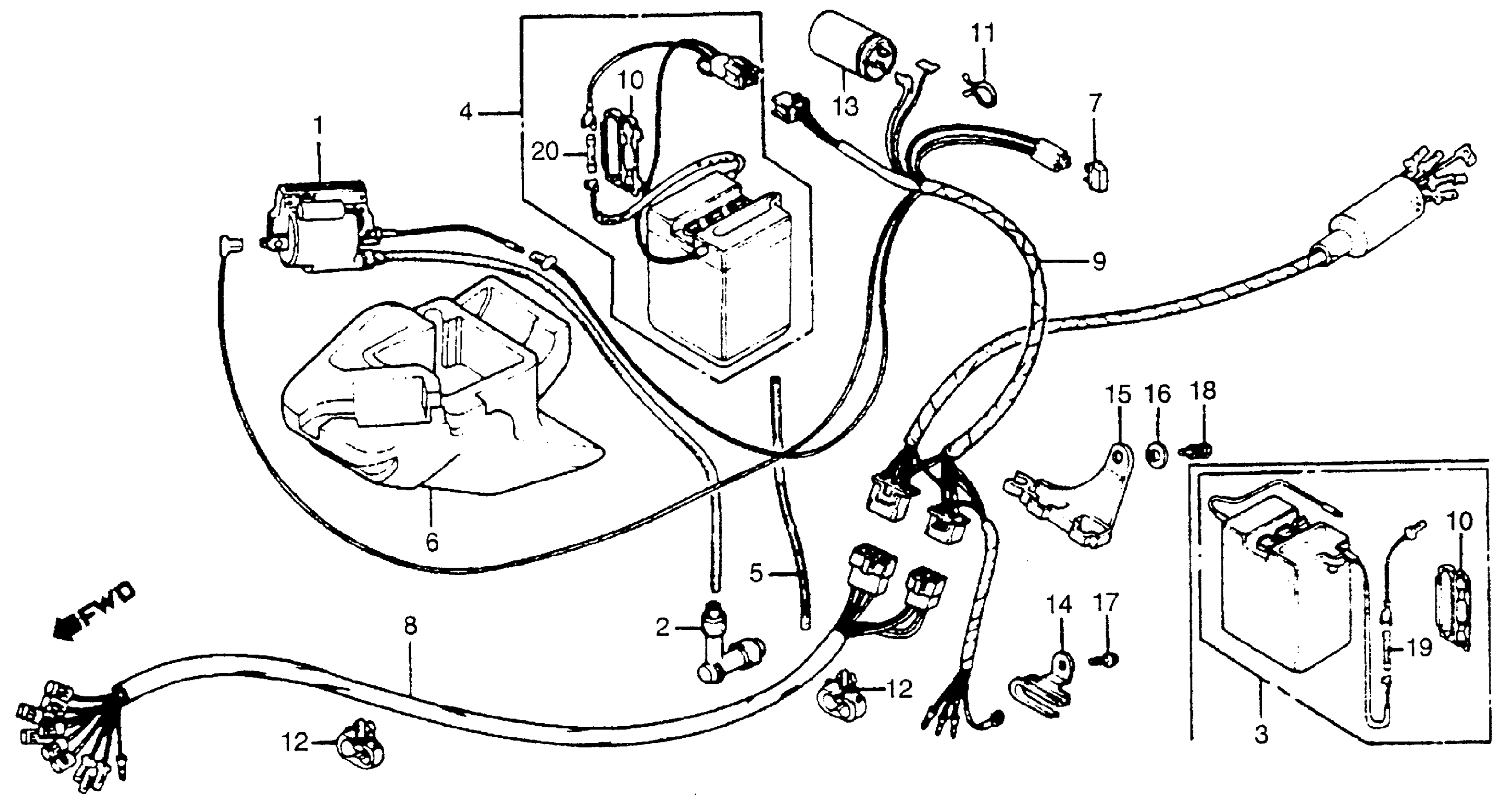

Honda NA50A (80) EXPRESS II, JPN, VIN# AB01-5100007 TO AB01-5114256 WIRE HARNESS + BATTERY + IGNITION COIL 79-80 Diagram

COIL ASSY., IGNITION This part replaces 30530-164-000.

30500-147-405

Unavailable

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-155-153.

30700-155-163

Unavailable

CAP ASSY., NOISE SUPPRESSOR

30700-155-163

Unavailable

BATTERY (6N4-2A-6) This part replaces 31500-126-771.

31500-126-771AH

Unavailable

BATTERY (6N4-2A-6) This part replaces 31500-126-777.

31500-126-771AH

Unavailable

BATTERY (6N4-2A-6) This part replaces 31500-147-971.

31500-126-771AH

Unavailable

TUBE, BATTERY BREATHER (NOT AVAILABLE)

31502-147-010

Unavailable

HOLDER, BATTERY (NOT AVAILABLE)

31505-163-770

Unavailable

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

WIRE HARNESS (NOT AVAILABLE)

32100-163-770

$48.81

SUB-WIRE HARNESS A (NOT AVAILABLE)

32101-163-770

Unavailable

CASE, FUSE CONNECTOR

32111-230-000

$4.28

CLIP, PURSE LOCK This part replaces 32125-163-000.

90630-751-000

$1.92

CLIP, PURSE LOCK

90630-751-000

$1.92

CLIP, PURSE LOCK This part replaces 90652-SF0-003.

90630-751-000

$1.92

CLIP, WIRE HARNESS (NOT AVAILABLE)

32127-163-003

Unavailable

RELAY ASSY., TURN SIGNAL RELAY, TURN SIGNAL

38300-GF0-405

$44.27

RELAY ASSY., TURN SIGNAL This part replaces 38300-428-004.

38300-GF0-405

$44.27

RELAY ASSY., TURN SIGNAL This part replaces 38301-428-671.

38300-GF0-405

$44.27

RELAY ASSY., TURN SIGNAL This part replaces 38310-428-671.

38300-GF0-405

$44.27

GUIDE, CABLE

50161-163-000

Unavailable

HOLDER, CONNECTOR

50350-163-000

Unavailable

WASHER (6X20)

90512-300-000

$3.08

BOLT-WASHER (6X12)

93402-06012-00

$1.69

BOLT-WASHER (6X12) This part replaces 93412-06012-00.

93402-06012-00

$1.69

BOLT-WASHER (6X12) This part replaces 93482-06012-00.

93402-06012-00

$1.69

BOLT-WASHER (6X16)

93402-06016-00

$1.73

BOLT-WASHER (6X16) This part replaces 93482-06016-00.

93402-06016-00

$1.73

FUSE A (10A)

98200-11000

$1.80
