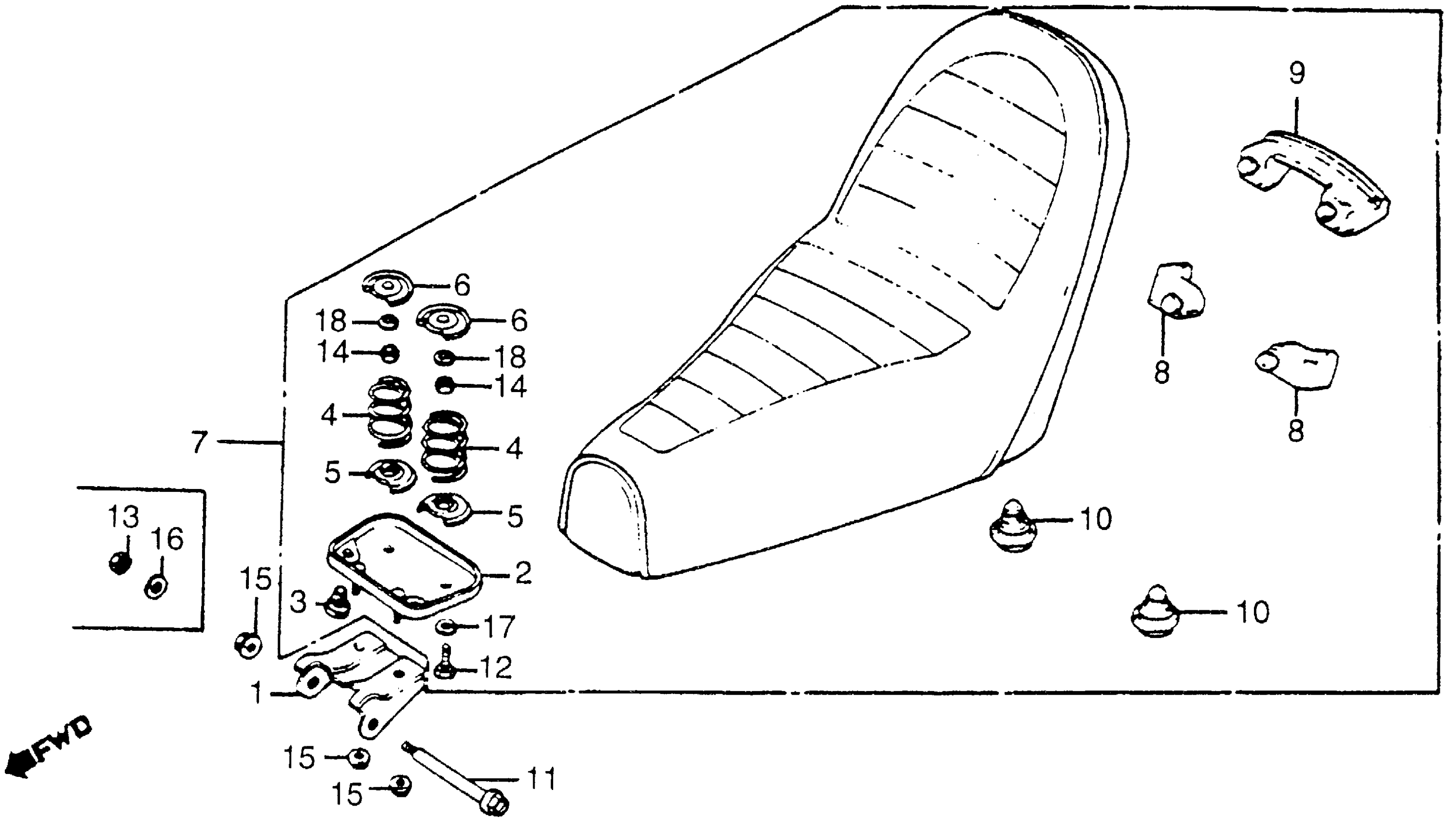

Honda NA50A (80) EXPRESS II, JPN, VIN# AB01-5100007 TO AB01-5114256 SEAT Diagram

#

Description
Price

1

HINGE, SEAT

77101-163-000

Unavailable

2

PLATE, HINGE SETTING (NOT AVAILABLE)

77103-163-000

Unavailable

3

RUBBER, HINGE STOPPER

77107-163-000

Unavailable

4

SPRING, SADDLE CUSHION

77127-148-000

Unavailable

5

PLATE B, SPRING SETTING (NOT AVAILABLE)

77133-044-020

Unavailable

6

PLATE A, SPRING SETTING (NOT AVAILABLE)

77133-163-000

Unavailable

7

SEAT ASSY. (NOT AVAILABLE)

77200-163-670

Unavailable

8

DAMPER, SEAT (NOT AVAILABLE)

77201-163-000

Unavailable

9

RUBBER, STOPPER (NOT AVAILABLE)

77202-163-000

Unavailable

10

RUBBER, SEAT STOPPER (NOT AVAILABLE)

77211-163-670

Unavailable

11

PIN, SEAT HINGE

90101-163-000

Unavailable

12

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

12

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

12

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

13

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM)

94001-06200-0S

$1.49

14

NUT, HEX. (8MM)

94001-08000-0S

$1.49

15

NUT, FLANGE (6MM)

94050-06000

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

16

WASHER, PLAIN (6MM)

94101-06800

$1.49

17

WASHER, SPRING (6MM)

94111-06000

$1.49

18

WASHER, SPRING (8MM)

94111-08000

$1.49
