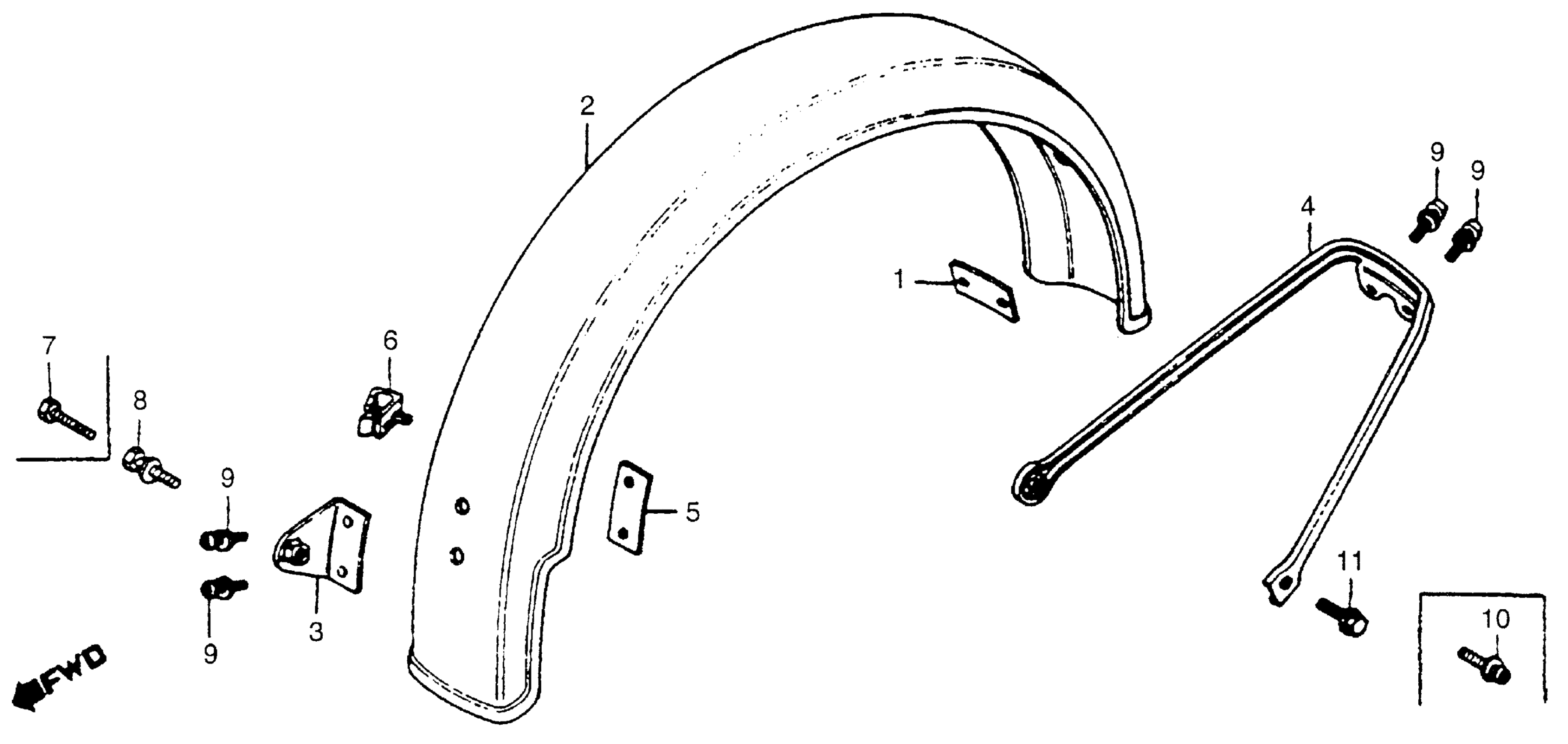

Honda NA50A (80) EXPRESS II, JPN, VIN# AB01-5100007 TO AB01-5114256 REAR FENDER Diagram

NUT, FENDER MOUNT (NOT AVAILABLE)

61106-147-670

Unavailable

PANEL, RR. FENDER *NH24* (CERAMIC WHITE) This part replaces 80101-147-010ZF.

80101-191-000ZD

Unavailable

PANEL, RR. FENDER *NH24* (CERAMIC WHITE)

80101-191-000ZD

Unavailable

BRACKET, RR. FENDER (NOT AVAILABLE)

80104-147-000

Unavailable

STAY, RR. FENDER (NOT AVAILABLE)

80106-147-671

Unavailable

NUT, RR. FENDER PLATE (NOT AVAILABLE)

80107-147-000

Unavailable

CLAMP, CABLE

80110-147-000

$2.64

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

SCREW-WASHER (5X10)

93892-05010-00

$1.49

SCREW-WASHER (6X20)

93892-06020-00

$1.49
