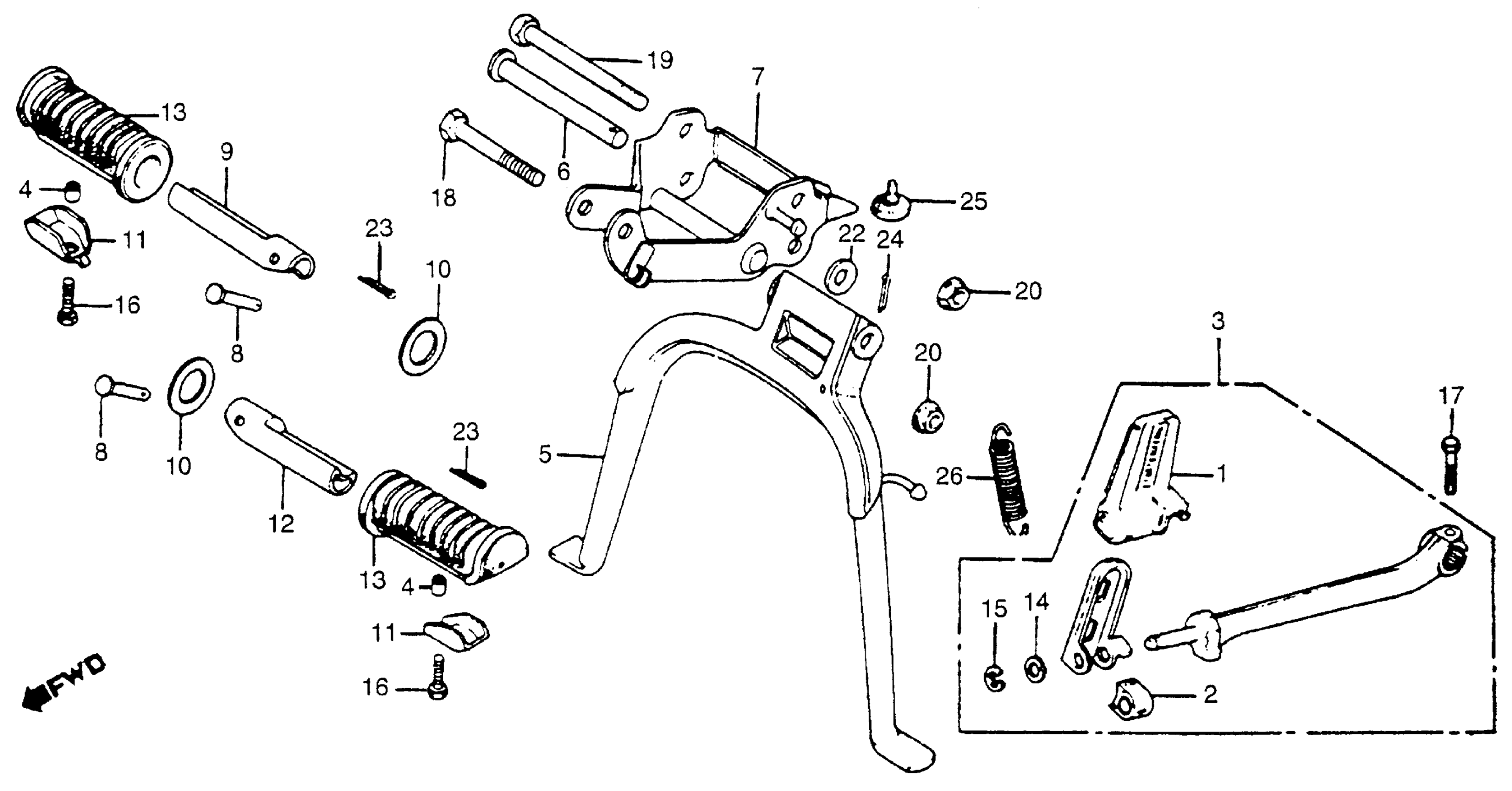

Honda NA50A (80) EXPRESS II, JPN, VIN# AB01-5100007 TO AB01-5114256 PEDAL 79-80 Diagram

#

Description
Price

1

RUBBER, STARTER PEDAL (NOT AVAILABLE)

28301-147-030

Unavailable

2

RUBBER, BUSHING (NOT AVAILABLE)

28305-147-000

Unavailable

3

PEDAL ASSY., STARTER (NOT AVAILABLE)

28350-147-010

Unavailable

3

PEDAL ASSY., STARTER (NOT AVAILABLE) This part replaces 28350-163-000.

28350-147-010

Unavailable

4

COLLAR, INSTRUMENT SETTING

37243-323-000

Unavailable

5

STAND, MAIN *NH1* (BLACK) (NOT AVAILABLE)

50500-147-040ZA

Unavailable

6

SHAFT, MAIN STAND (NOT AVAILABLE)

50503-122-010

Unavailable

7

STAY, MAIN STAND *NH1* (BLACK) (NOT AVAILABLE)

50510-162-000ZA

Unavailable

8

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

8

PIN, STEP BAR JOINT

50603-033-010

$3.30

9

BAR, R. STEP (NOT AVAILABLE)

50612-163-670

Unavailable

10

WASHER, MAIN FOOTPEG

50614-413-000

Unavailable

11

STOPPER, STEP RUBBER

50619-163-670

Unavailable

12

BAR, L. STEP (NOT AVAILABLE)

50643-163-670

Unavailable

13

RUBBER, FOOTPEG

50661-426-000

$13.86

14

WASHER, THRUST (8MM)

90450-147-000

$1.80

15

E-RING (6MM) (NOT AVAILABLE)

90605-355-000

Unavailable

16

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

17

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

17

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

18

BOLT, HEX. (8X45) This part replaces 92200-08045-0H.

92201-08045-0H

Unavailable

18

BOLT, HEX. (8X45)

92201-08045-0H

Unavailable

19

BOLT, HEX. (8X80)

92200-08080-0H

Unavailable

20

NUT, FLANGE (8MM)

94050-08080

$1.49

21

WASHER, PLAIN (8MM)

94101-08000

$1.49

22

WASHER, PLAIN (10MM)

94101-10000

$1.49

23

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

23

PIN, COTTER (1.6X25)

94201-16250

$1.49

24

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

24

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

24

PIN, COTTER (2.0X22)

94201-20220

$1.49

24

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

24

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

24

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

24

PIN, COTTER (2.0X35)

94201-20350

$1.49

24

PIN, COTTER (2.0X22)

94201-29220

$1.49

25

RUBBER B, STAND STOPPER

95011-62000

$1.49

26

SPRING D, MAIN STAND

95014-71402

$2.48
