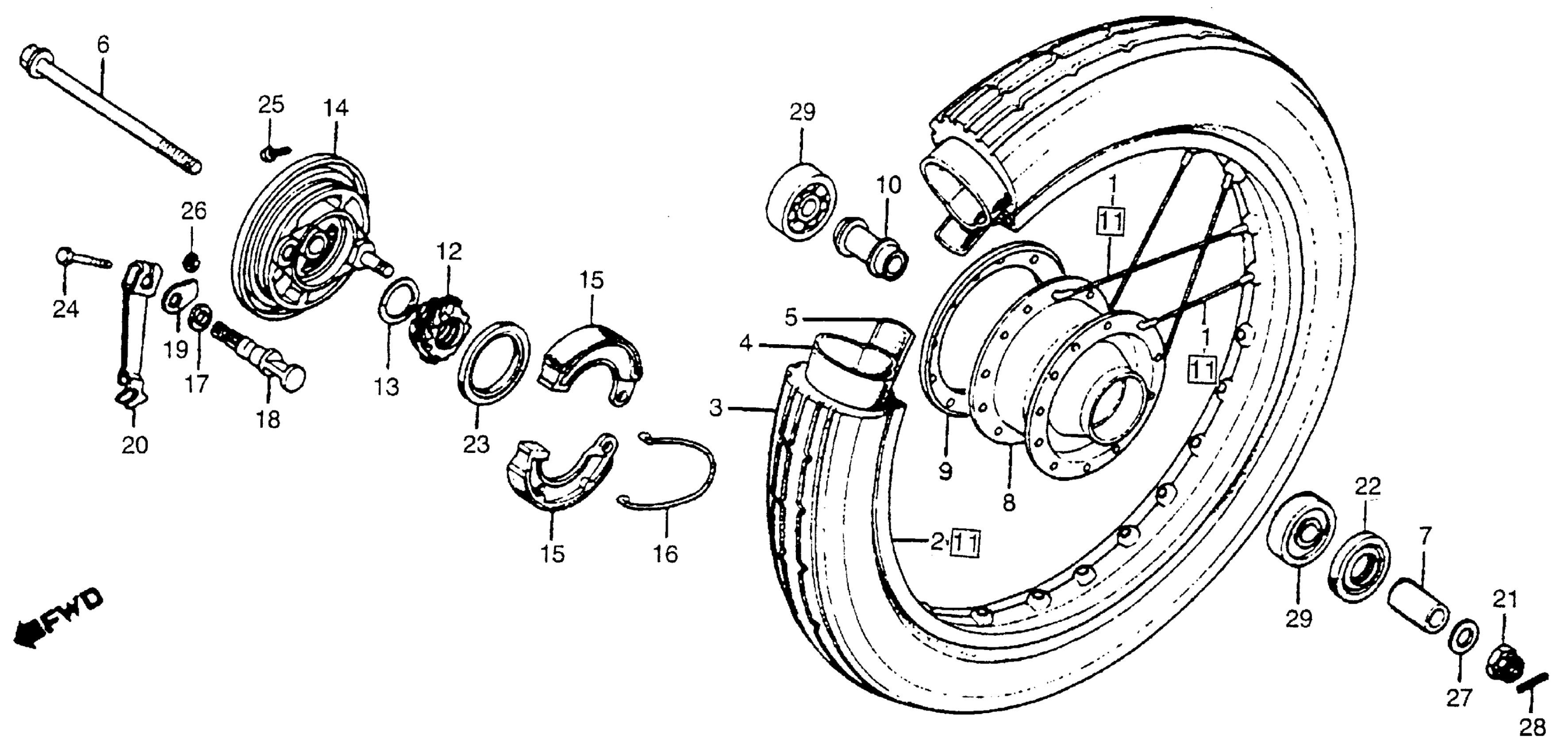

Honda NA50A (80) EXPRESS II, JPN, VIN# AB01-5100007 TO AB01-5114256 FRONT WHEEL + PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE

06430-131-405

$15.33

NI

SHOE SET, BRAKE This part replaces 451A2-147-672.

06430-131-405

$15.33

1

SPOKE ASSY. A | Use up to Frame SN 5108806 This part replaces 42607-147-315.

42607-147-325

$3.95

1

SPOKE ASSY. A

42607-147-325

$3.95

2

RIM, WHEEL (1.20X14) (NOT AVAILABLE) | Use up to Frame SN 5108806

42701-147-710

Unavailable

2

RIM, WHEEL (1.20X14) (NOT AVAILABLE) | Use from Frame SN 5108807

42701-147-711

Unavailable

3

TIRE (2.25-14) (4PR) (INOUE)

42711-147-671

Unavailable

3

TIRE (2.25-14) (4PR) (INOUE) This part replaces 42711-147-672.

42711-147-671

Unavailable

4

TUBE, TIRE (2.25-14) (INOUE) This part replaces 08400-14701.

44712-131-005

Unavailable

4

TUBE, TIRE (2.25-14) (INOUE) This part replaces 42712-147-009.

44712-131-005

Unavailable

4

TUBE, TIRE (2.25-14) (INOUE)

44712-131-005

Unavailable

5

FLAP, RR. TUBE (14) (INOUE)

42713-116-671

$6.91

5

FLAP, RR. TUBE (14) (INOUE) This part replaces 42713-147-009.

42713-116-671

$6.91

5

FLAP, RR. TUBE (14) (INOUE) This part replaces 42713-155-009.

42713-116-671

$6.91

5

FLAP, TIRE (14) (INOUE) (NOT AVAILABLE)

44713-131-005

Unavailable

6

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-147-000

Unavailable

7

COLLAR, FR. WHEEL SIDE

44311-GC6-000

Unavailable

7

COLLAR, FR. WHEEL SIDE This part replaces 44311-147-000.

44311-GC6-000

Unavailable

8

HUB, FR. WHEEL (NOT AVAILABLE)

44601-147-670

Unavailable

9

COVER, FR. HUB (NOT AVAILABLE)

44603-147-650

Unavailable

10

COLLAR, FR. DISTANCE

44620-147-000

$8.80

11

RIM SET, FR. WHEEL (NOT AVAILABLE) | Use up to Frame SN 5108806

44700-147-710

Unavailable

12

GEAR, SPEEDOMETER

44804-147-000

Unavailable

13

WASHER, SPEEDOMETER GEAR (NOT AVAILABLE)

44809-044-000

Unavailable

14

PANEL SUB-ASSY., FR. BRAKE (NOT AVAILABLE)

45050-147-970

$61.47

15

SHOE SET, BRAKE

06430-131-405

$15.33

15

SHOE, FR. BRAKE

43120-GZ9-003

Unavailable

15

SHOE, FR. BRAKE This part replaces 45120-GE8-003.

43120-GZ9-003

Unavailable

15

SHOE, FR. BRAKE This part replaces 45120-GE8-505.

43120-GZ9-003

Unavailable

15

SHOE, FR. BRAKE This part replaces 45120-147-672.

43120-GZ9-003

Unavailable

16

SPRING, BRAKE SHOE

45133-044-000

$2.31

18

CAM, FR. BRAKE This part replaces 45141-147-030.

45141-147-040

$11.25

18

CAM, FR. BRAKE

45141-147-040

$11.25

19

INDICATOR, BRAKE (NOT AVAILABLE)

45145-147-000

Unavailable

20

ARM, FR. BRAKE This part replaces 45410-147-970.

45410-161-000

Unavailable

21

NUT, FR. WHEEL AXLE

90305-041-000

$4.83

22

OIL SEAL (19X30.5X7)

90754-GK1-003

Unavailable

22

OIL SEAL (19X30.5X7) (ARAI)

90754-147-003

$5.31

23

OIL SEAL (34X47X5) (NOT AVAILABLE)

91252-147-003

Unavailable

24

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

24

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

24

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

25

SCREW, PAN (4X6)

93500-04006-0A

$1.49

26

NUT, HEX. (5MM)

94001-05000-0S

$2.74

27

WASHER, PLAIN (10MM)

94102-10000

$1.49

28

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

28

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

28

PIN, COTTER (2.5MM)

94201-25300

$1.49

29

BEARING, RADIAL BALL (6200U)

96140-62000-10

$15.44
