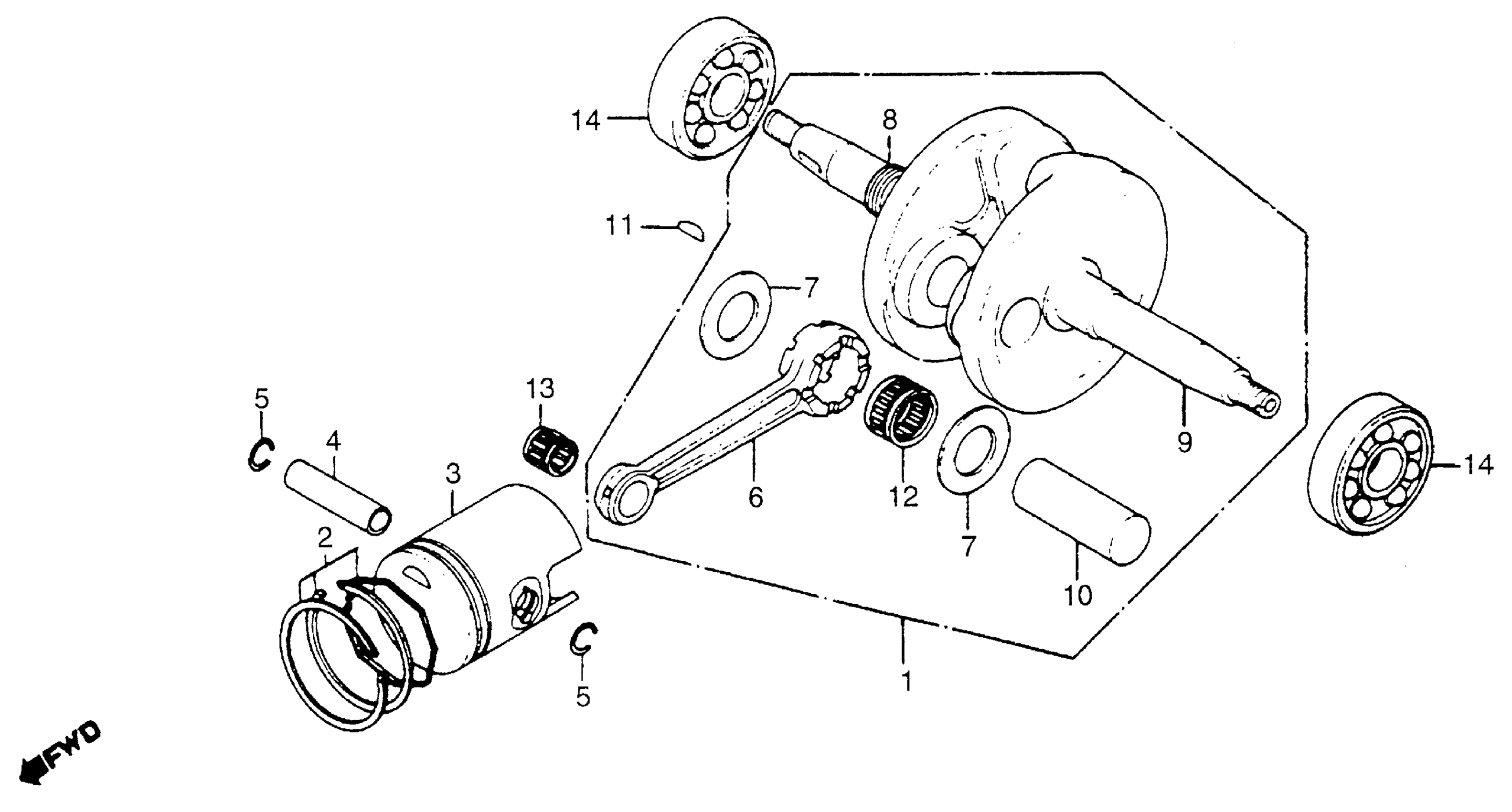

Honda NA50A (80) EXPRESS II, JPN, VIN# AB01-5100007 TO AB01-5114256 CRANKCASE + PISTON Diagram

#

Description
Price

1

CRANKSHAFT | Use up to Engine SN 5106256 This part replaces 13000-147-710.

13000-147-712

Unavailable

1

CRANKSHAFT | Use up to Engine SN 5112407 This part replaces 13000-147-711.

13000-147-712

Unavailable

1

CRANKSHAFT

13000-147-712

Unavailable

1

CRANKSHAFT | Use up to Engine SN 5112407

13000-147-712

Unavailable

2

RING SET, PISTON (STD) (NIPPON)

13010-GF8-306

Unavailable

2

RING SET, PISTON (STD) (NIPPON) This part replaces 13011-GA7-003.

13010-GF8-306

Unavailable

2

RING SET, PISTON (STD) (NIPPON) This part replaces 13011-GA7-005.

13010-GF8-306

Unavailable

2

RING SET, PISTON (STD) (NIPPON) This part replaces 13011-147-003.

13010-GF8-306

Unavailable

2

RING SET, PISTON (STD) (NIPPON) This part replaces 13011-147-005.

13010-GF8-306

Unavailable

2

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional). This part replaces 13021-147-003.

130A2-GA6-003

Unavailable

2

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional). This part replaces 13021-147-005.

130A2-GA6-003

Unavailable

2

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional). This part replaces 13031-147-003.

130A3-GA6-003

Unavailable

2

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional). This part replaces 13031-147-005.

130A3-GA6-003

Unavailable

2

RING SET, PISTON (0.75) (NIPPON) (NOT AVAILABLE) | (Optional). This part replaces 13041-147-003.

130A4-GA6-003

Unavailable

2

RING SET, PISTON (0.75) (NIPPON) (NOT AVAILABLE) | (Optional). This part replaces 13041-147-005.

130A4-GA6-003

Unavailable

2

RING SET, PISTON (1.00) (NIPPON) (NOT AVAILABLE) | (Optional). This part replaces 13051-147-003.

130A5-GA6-003

Unavailable

2

RING SET, PISTON (1.00) (NIPPON) (NOT AVAILABLE) | (Optional). This part replaces 13051-147-005.

130A5-GA6-003

Unavailable

2

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional).

130A2-GA6-003

Unavailable

2

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional). This part replaces 130A2-GA6-005.

130A2-GA6-003

Unavailable

2

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional).

130A3-GA6-003

Unavailable

2

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional). This part replaces 130A3-GA6-005.

130A3-GA6-003

Unavailable

2

RING SET, PISTON (0.75) (NIPPON) (NOT AVAILABLE) | (Optional).

130A4-GA6-003

Unavailable

2

RING SET, PISTON (0.75) (NIPPON) (NOT AVAILABLE) | (Optional). This part replaces 130A4-GA6-005.

130A4-GA6-003

Unavailable

2

RING SET, PISTON (1.00) (NIPPON) (NOT AVAILABLE) | (Optional).

130A5-GA6-003

Unavailable

2

RING SET, PISTON (1.00) (NIPPON) (NOT AVAILABLE) | (Optional). This part replaces 130A5-GA6-005.

130A5-GA6-003

Unavailable

3

PISTON B This part replaces 13101-147-010.

13103-187-023

Unavailable

3

PISTON (OS 0.25) | (Optional).

131A0-187-003

Unavailable

3

PISTON (OS 0.50) | (Optional).

131B0-187-003

Unavailable

3

PISTON B This part replaces 13101-187-023.

13103-187-023

Unavailable

3

PISTON (OS 0.25) | (Optional). This part replaces 13102-147-010.

131A0-187-003

Unavailable

3

PISTON (OS 0.50) | (Optional). This part replaces 13103-147-010.

131B0-187-003

Unavailable

3

PISTON B

13103-187-023

Unavailable

3

PISTON (0.75) (NOT AVAILABLE) | (Optional). This part replaces 13104-147-010.

131C0-187-003

Unavailable

3

PISTON (1.00) (NOT AVAILABLE) | (Optional). This part replaces 13105-147-010.

131D0-187-003

Unavailable

4

PIN, PISTON This part replaces 13111-GK8-000.

13111-GS7-000

$9.55

4

PIN, PISTON

13111-GS7-000

$9.55

4

PIN, PISTON This part replaces 13111-122-000.

13111-GS7-000

$9.55

5

CLIP, PISTON PIN (10MM)

13115-147-000

$2.11

6

ROD, CONNECTING This part replaces 13201-147-300.

13201-GC7-710

Unavailable

6

ROD, CONNECTING This part replaces 13201-147-700.

13201-GC7-710

Unavailable

7

PLATE, CONNECTING ROD SIDE (NOT AVAILABLE)

13202-122-000

Unavailable

8

CRANKSHAFT, R. (NOT AVAILABLE) | Use up to Engine SN 5106256

13311-147-710

Unavailable

8

CRANKSHAFT, R. | Use from Engine SN 5106257 to 5112406

13311-147-711

Unavailable

8

CRANKSHAFT, R. | Use from Engine SN 5112407

13311-190-300

Unavailable

9

CRANKSHAFT, L. | Use up to Engine SN 5106256

13321-147-710

Unavailable

9

CRANKSHAFT, L. | Use from Engine SN 5106257 to 5112406

13321-147-711

Unavailable

9

CRANKSHAFT, L. | Use from Engine SN 5112407

13321-147-712

Unavailable

10

PIN, CRANK (NOT AVAILABLE)

13381-147-300

Unavailable

11

KEY, WOODRUFF (3MM)

90741-035-000

$4.19

11

KEY, WOODRUFF (3MM) This part replaces 90741-147-000.

90741-035-000

$4.19

12

BEARING, CONNECTING ROD BIG END (RED) (TOYO) This part replaces 91001-122-004.

91001-122-008

Unavailable

12

BEARING, CONNECTING ROD BIG END (RED) (TOYO)

91001-122-008

Unavailable

12

BEARING, CONNECTING ROD BIG END (BLUE) (TOYO) This part replaces 91002-122-004.

91002-122-008

Unavailable

12

BEARING, CONNECTING ROD BIG END (BLUE) (TOYO)

91002-122-008

Unavailable

12

BEARING, CONNECTING ROD BIG END (WHITE) (TOYO) This part replaces 91003-122-004.

91003-122-008

Unavailable

12

BEARING, CONNECTING ROD BIG END (WHITE) (TOYO)

91003-122-008

Unavailable

13

BEARING, CONNECTING ROD (TOYO) This part replaces 91102-122-008.

91102-GA7-008

$13.19

13

BEARING, CONNECTING ROD (TOYO)

91102-GA7-008

$13.19

14

BEARING, RADIAL BALL (6004) (NOT AVAILABLE) This part replaces 96100-60043.

96100-60043-00

Unavailable

14

BEARING, RADIAL BALL (6004) (NOT AVAILABLE)

96100-60043-00

Unavailable
