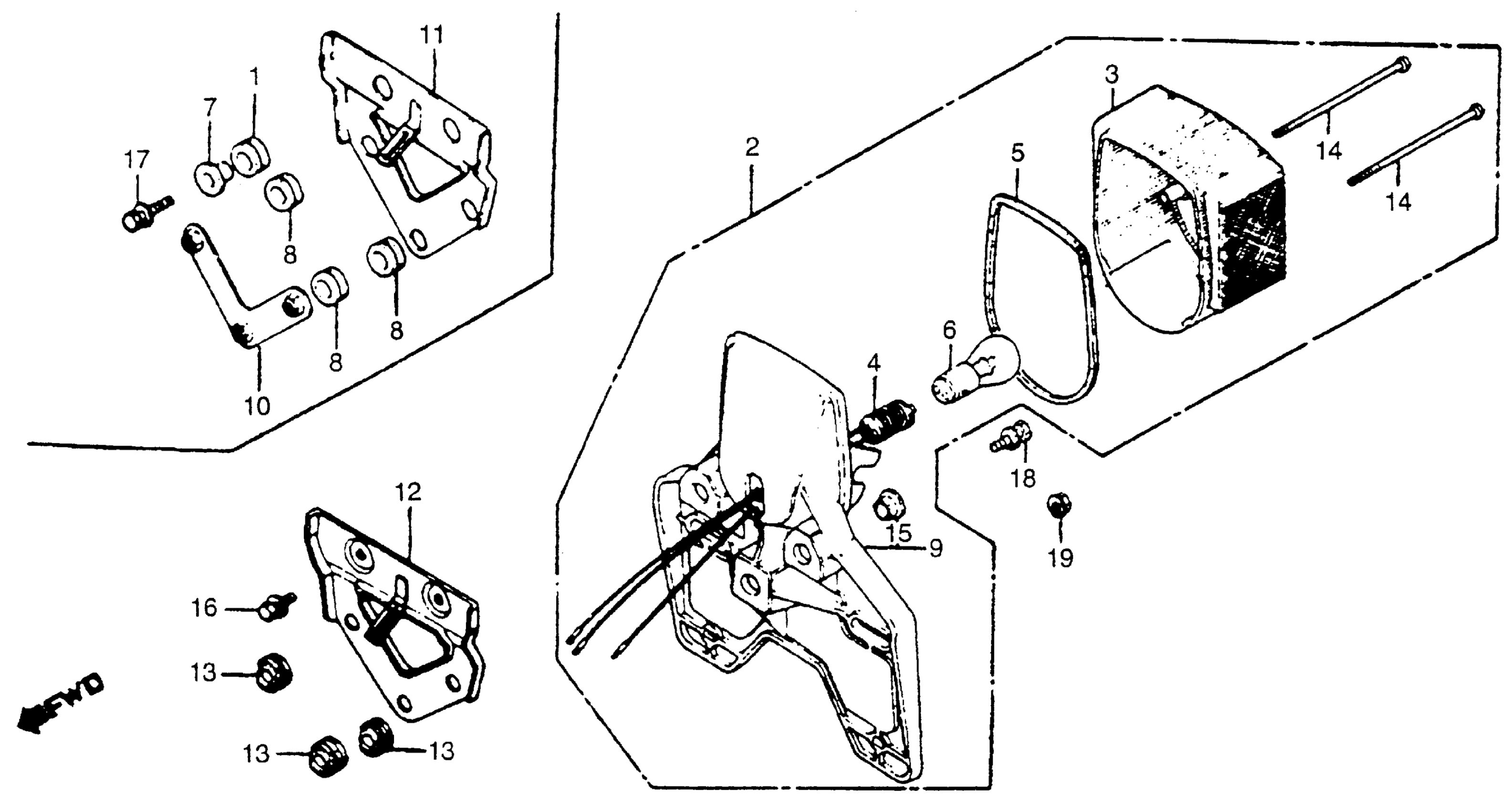

Honda NA50A (79) EXPRESS II, JPN, VIN# AB01-5000001 TO AB01-5012265 TAILLIGHT Diagram

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

TAILLIGHT ASSY. (6V 32/3CP) (STANLEY) (NOT AVAILABLE)

33700-147-671

Unavailable

LENS, TAILLIGHT (STANLEY)

33702-147-671

Unavailable

WIRE, TAILLIGHT (STANLEY)

33705-147-671

Unavailable

GASKET, TAILLIGHT LENS

33709-074-671

$2.08

BULB, STOP & TAILLIGHT (6V32/3CP) (STANLEY)

34906-329-671

$6.49

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

COLLAR, RR. FENDER

61105-428-000

Unavailable

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

BRACKET, NUMBER PLATE (NOT AVAILABLE)

84701-147-671

Unavailable

STAY, TAILLIGHT SETTING (NOT AVAILABLE)

84703-163-670

Unavailable

BRACKET, TAILLIGHT MOUNTING (NOT AVAILABLE)

84705-163-670

Unavailable

SCREW, TAPPING (4X60)

90147-147-671

$2.70

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

BOLT-WASHER (6X20) (NOT AVAILABLE)

93482-06020-00

Unavailable

BOLT-WASHER (6X25) (NOT AVAILABLE)

93482-06025-00

Unavailable
