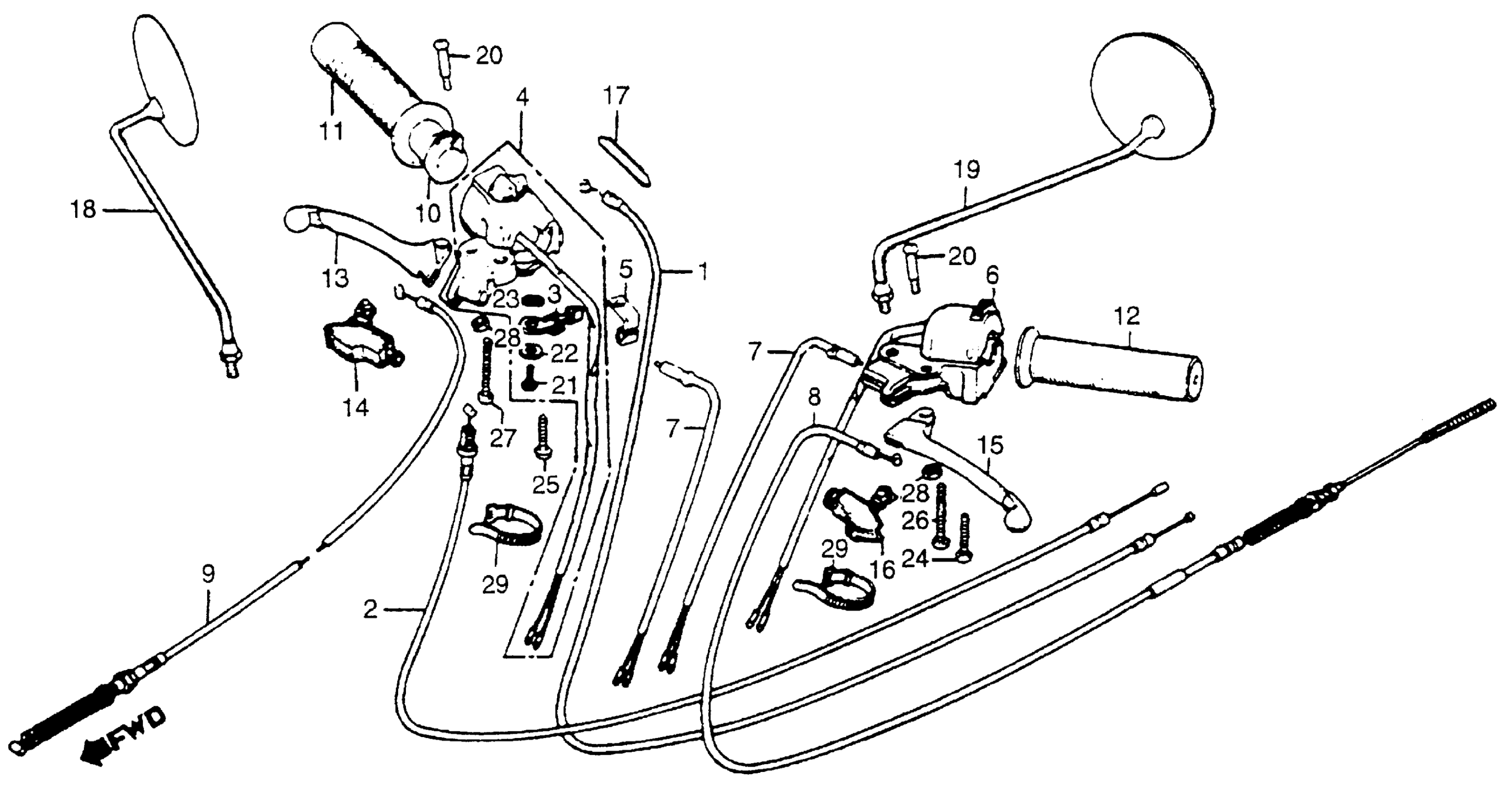

Honda NA50A (79) EXPRESS II, JPN, VIN# AB01-5000001 TO AB01-5012265 HANDLE LEVER + SWITCH + CABLE 79-80 Diagram

#

Description
Price

1

CABLE, CHOKE (NOT AVAILABLE)

14950-162-010

Unavailable

1

CABLE, CHOKE (NOT AVAILABLE) This part replaces 14950-163-010.

14950-162-010

Unavailable

2

CABLE, THROTTLE (NOT AVAILABLE)

17910-162-010

Unavailable

2

CABLE, THROTTLE (NOT AVAILABLE) This part replaces 17910-163-000.

17910-162-010

Unavailable

2

CABLE, THROTTLE (NOT AVAILABLE) This part replaces 17910-163-010.

17910-162-010

Unavailable

4

SWITCH ASSY., STOP (NOT AVAILABLE)

35200-163-671

Unavailable

5

STOPPER, CABLE

35205-147-000

Unavailable

6

SWITCH ASSY., HORN & DIMMER SWITCH ASSY., TURN SIGNAL &

35300-148-671

Unavailable

7

SWITCH ASSY., FR. STOP This part replaces 35340-102-003.

35340-GAN-620

$19.20

7

SWITCH ASSY., FR. STOP This part replaces 35340-187-700.

35340-GAN-620

$19.20

7

SWITCH ASSY., FR. STOP This part replaces 35340-401-681.

35340-GAN-620

$19.20

7

SWITCH ASSY., FR. STOP This part replaces 35340-401-682.

35340-GAN-620

$19.20

7

SWITCH ASSY., FR. STOP This part replaces 35340-437-661.

35340-GAN-620

$19.20

8

CABLE, RR. BRAKE & STARTER (NOT AVAILABLE) This part replaces 43450-163-670.

43450-163-671

Unavailable

8

CABLE, RR. BRAKE & STARTER (NOT AVAILABLE)

43450-163-671

Unavailable

9

CABLE, FR. BRAKE (NOT AVAILABLE) This part replaces 45450-163-670.

45450-193-670

Unavailable

10

PIPE, THROTTLE GRIP This part replaces 53141-147-020.

53141-147-030

$13.18

11

GRIP, R. HANDLEBAR (NOT AVAILABLE)

53165-147-670

Unavailable

12

GRIP, L. HANDLEBAR (NOT AVAILABLE)

53166-147-670

Unavailable

13

LEVER, R. HANDLEBAR (COO) This part replaces 53175-147-671.

53175-GGA-305

$12.88

15

LEVER, L. HANDLEBAR (COO) This part replaces 53178-GF0-000.

53178-GGL-305

$14.62

15

LEVER, L. HANDLEBAR (COO) This part replaces 53178-GR2-000.

53178-GGL-305

$14.62

15

LEVER, L. HANDLEBAR (COO) This part replaces 53178-147-010.

53178-GGL-305

$14.62

15

LEVER, L. HANDLEBAR (COO) This part replaces 53178-155-000.

53178-GGL-305

$14.62

15

LEVER, L. HANDLEBAR (COO) This part replaces 53178-187-000.

53178-GGL-305

$14.62

17

LABEL, CHOKE LEVER (NOT AVAILABLE)

87506-147-670

Unavailable

18

MIRROR ASSY., R. BACK

88110-088-950

Unavailable

18

MIRROR ASSY., R. BACK This part replaces 88110-126-751.

88110-088-950

Unavailable

18

MIRROR ASSY., R. BACK This part replaces 88110-178-000.

88110-088-950

Unavailable

19

MIRROR ASSY., L. BACK

88120-088-950

Unavailable

19

MIRROR ASSY., L. BACK This part replaces 88120-126-751.

88120-088-950

Unavailable

19

MIRROR ASSY., L. BACK This part replaces 88120-178-000.

88120-088-950

Unavailable

20

SCREW, HANDLE LEVER PIVOT (5MM)

90115-147-000

$2.72

24

SCREW, PAN (5X25) SCREW, PAN (5X32)

93500-05025-0A

$1.49

25

SCREW, PAN (5X28)

93500-05028-0A

$1.49

26

SCREW, PAN (5X30) SCREW, PAN (5X40)

93500-05030-0A

$1.49

27

SCREW, PAN (5X35)

93500-05035-0A

$1.49

28

NUT, HEX. (5MM)

94001-05000-0S

$2.74

29

BAND B1, CABLE

95014-62100

$1.64
