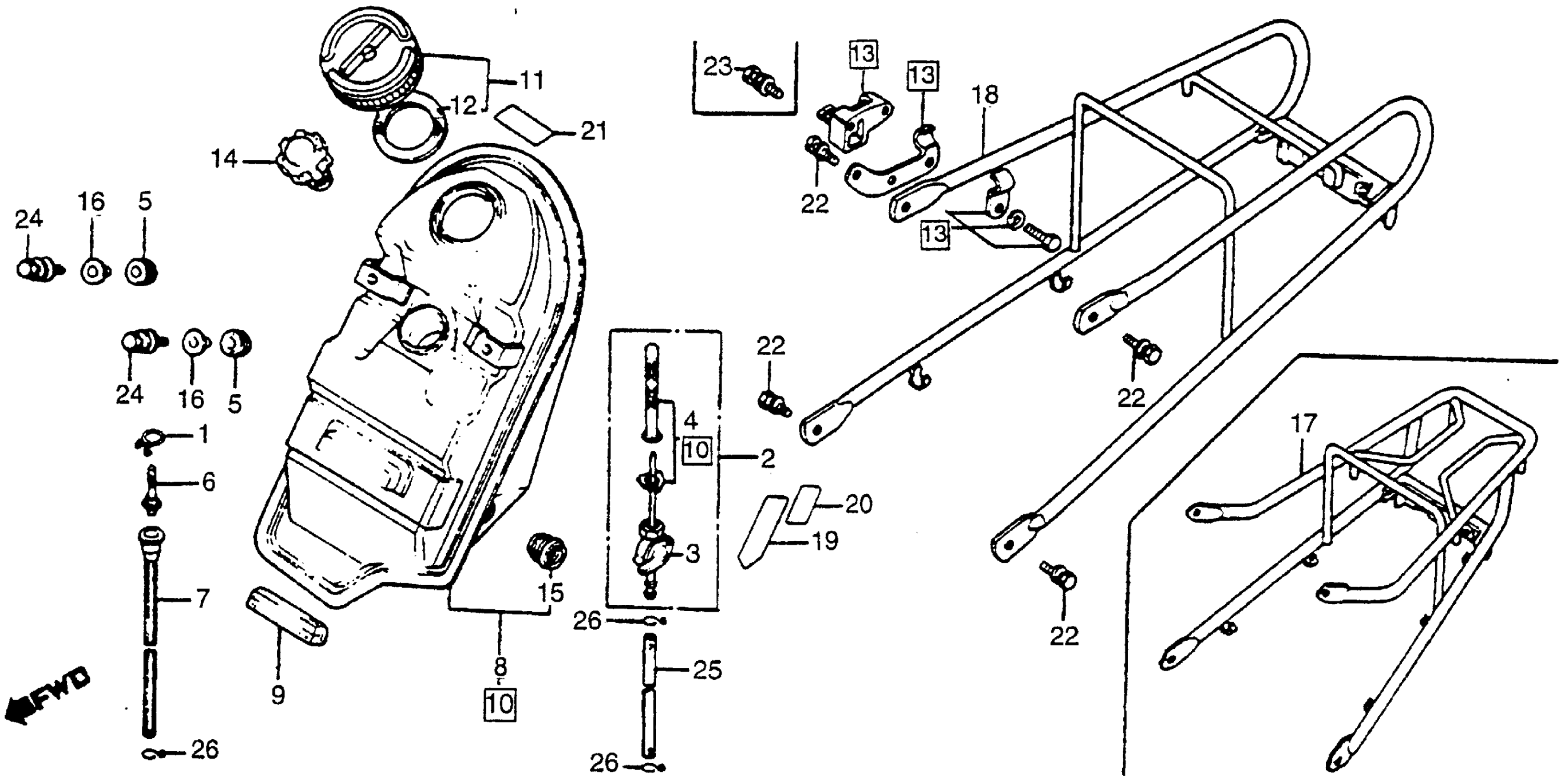

Honda NA50A (79) EXPRESS II, JPN, VIN# AB01-5000001 TO AB01-5012265 FUEL TANK + REAR CARRIER Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-500-010

$3.90

1

CLIP, BREATHER TUBE This part replaces 15772-500-013.

15772-500-010

$3.90

2

PETCOCK ASSY. This part replaces 16950-163-015.

16950-163-035

Unavailable

2

PETCOCK ASSY. This part replaces 16951-163-015.

16950-163-035

Unavailable

2

PETCOCK ASSY. This part replaces 16950-163-025.

16950-163-035

Unavailable

2

PETCOCK ASSY.

16950-163-035

Unavailable

3

PETCOCK ASSY. This part replaces 16950-163-025.

16950-163-035

Unavailable

3

PETCOCK ASSY.

16950-163-035

Unavailable

3

PETCOCK ASSY. This part replaces 16951-163-015.

16950-163-035

Unavailable

4

SCREEN SET, FUEL STRAINER This part replaces 16953-155-015.

16953-155-305

Unavailable

4

SCREEN SET, FUEL STRAINER

16953-155-305

Unavailable

5

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

6

STRAINER, OIL

17502-147-010

Unavailable

7

TUBE, OIL

17504-147-010

$5.55

8

TANK ASSY., FUEL *YR26* (SHINY ORANGE) (NOT AVAILABLE)

17510-163-000ZF

Unavailable

8

TANK ASSY., FUEL *Y31* (PARAKEET YELLOW) (NOT AVAILABLE)

17510-163-000ZB

Unavailable

8

TANK ASSY., FUEL *PB31* (BLUE ANGEL) (NOT AVAILABLE)

17510-163-000ZC

Unavailable

9

RUBBER, FUEL TANK SETTING (NOT AVAILABLE)

17514-163-000

Unavailable

11

CAP, FUEL FILLER | Use up to Frame SN 5009465 This part replaces 17620-147-672.

17620-165-643

$42.47

11

CAP, FUEL FILLER | Use up to Frame SN 5009465 This part replaces 17620-147-971.

17620-165-643

$42.47

11

CAP, FUEL FILLER This part replaces 17620-147-971.

17620-165-643

$42.47

11

CAP, FUEL FILLER | Use up to Frame SN 5009465 This part replaces 17620-147-972.

17620-165-643

$42.47

11

CAP, FUEL FILLER This part replaces 17620-147-972.

17620-165-643

$42.47

11

CAP, FUEL FILLER | Use up to Frame SN 5009465 This part replaces 17620-165-642.

17620-165-643

$42.47

11

CAP, FUEL FILLER This part replaces 17620-165-642.

17620-165-643

$42.47

11

CAP, FUEL FILLER | Use up to Frame SN 5009465 This part replaces 17620-957-003.

17620-165-643

$42.47

11

CAP, FUEL FILLER This part replaces 17620-957-003.

17620-165-643

$42.47

12

GASKET This part replaces 17631-096-700.

17631-096-702

$2.47

12

GASKET This part replaces 17631-096-701.

17631-096-702

$2.47

14

CAP, OIL

55105-147-000

Unavailable

15

DIPSTICK, OIL (NOT AVAILABLE)

55118-147-010

Unavailable

16

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

16

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

16

COLLAR, RR. FENDER

61105-428-000

Unavailable

17

CARRIER, RR. (NOT AVAILABLE)

81200-163-670

Unavailable

19

LABEL, OIL CAUTION (NOT AVAILABLE)

87507-163-670

Unavailable

20

LABEL B, CAUTION *NH1* (BLACK) (NOT AVAILABLE)

87509-147-670ZA

Unavailable

21

LABEL, FUEL *NH1* (BLACK) (NOT AVAILABLE)

87512-147-670ZA

Unavailable

23

BOLT-WASHER (6X12) (NOT AVAILABLE)

93483-06012-00

Unavailable

24

BOLT-WASHER (6X25) (NOT AVAILABLE)

93483-06025-00

Unavailable

25

BULK HOSE, FUEL (4.5X3000) (4.5X200)

95001-45003-60M

$36.67

26

CLIP, TUBE (B8)

95002-02080

$1.80
